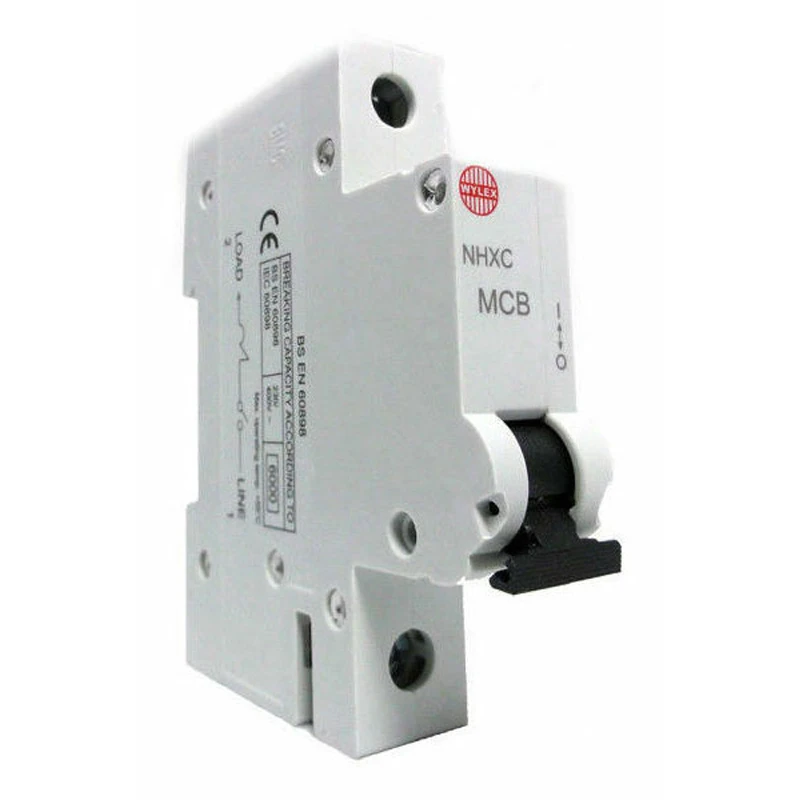

Wylex 50A SP Type C 6kA MCB
Wylex 50A SP Type C 6kA MCB
Wylex 50A SP Type C 6kA MCB - Image 2

Wylex 50A SP Type C 6kA MCB

£6.31 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the on position the MCB is free to trip. Adjacent thermal-magnetic MCBs sho · · · Single pole MCB, 50A C curve · · Energy limiting Class 3 · · Balcony terminal position · · 6kA Fault Rating · · Suitable for use within Wylex NM/NH Consumer Units · · Compliant with BS EN 60898 · · 25mm2 terminal capacity

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXC50 Categories: , , Brand: Product Code: 2500351537

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Recess depth 73 mm Rated current 50 A Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Number of protected poles 1 Number of poles (total) 1 Over voltage category 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
