Wylex 630A 3P+N Fuse Combination Unit
Wylex 630A 3P+N Fuse Combination Unit

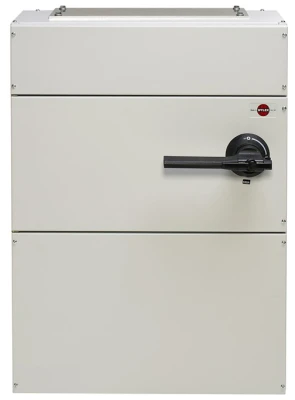

Wylex 630A 3P+N Fuse Combination Unit - Image 2

Wylex 630A 3P+N Fuse Combination Unit

£2,859.07 Incl. VAT

· · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 900mmH x 640mmW x 293mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 630mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB5) is required.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHTPSF630 Categories: , Brand: Product Code: 2500254354

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Number of poles 3 Rated permanent current Iu 630 A Max. rated operation voltage Ue AC 415 V With error protection No Suitable for busbar mounting No Motor drive integrated No Version as emergency stop installation No Motor drive optional No Equipped with connectors Yes Version as safety switch No Version as main switch Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
