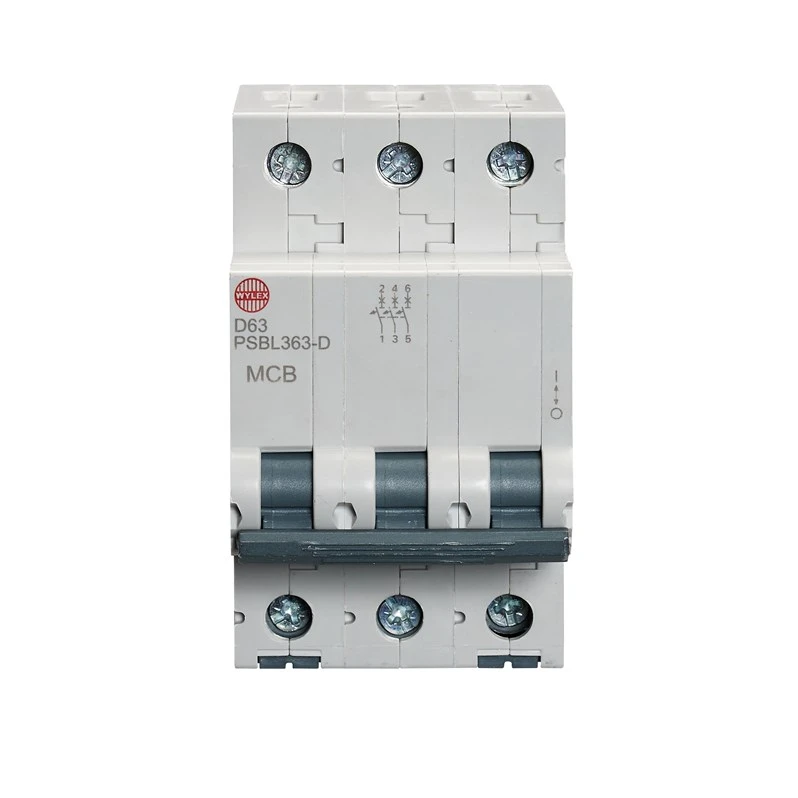

Wylex 63A Three Pole MCB D Curve 10kA
£42.06 Incl. VAT
· · D curve trip characteristic (10-20In) · · Three Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3 · · D curve trip characteristic (10-20In) · · Rated voltage: 230 V · · Rated insulation voltage Ui: 400 V · · Rated impulse withstand voltage Uimp: 4 kV · · Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V : 10 kA · · Frequency: 50 Hz
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 63 A Rated insulation voltage Ui 400 V Width in number of modular spacings 3 Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 3 Current limiting class 3 Over voltage category 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible No · Technical Data Sheet – Click to Download
