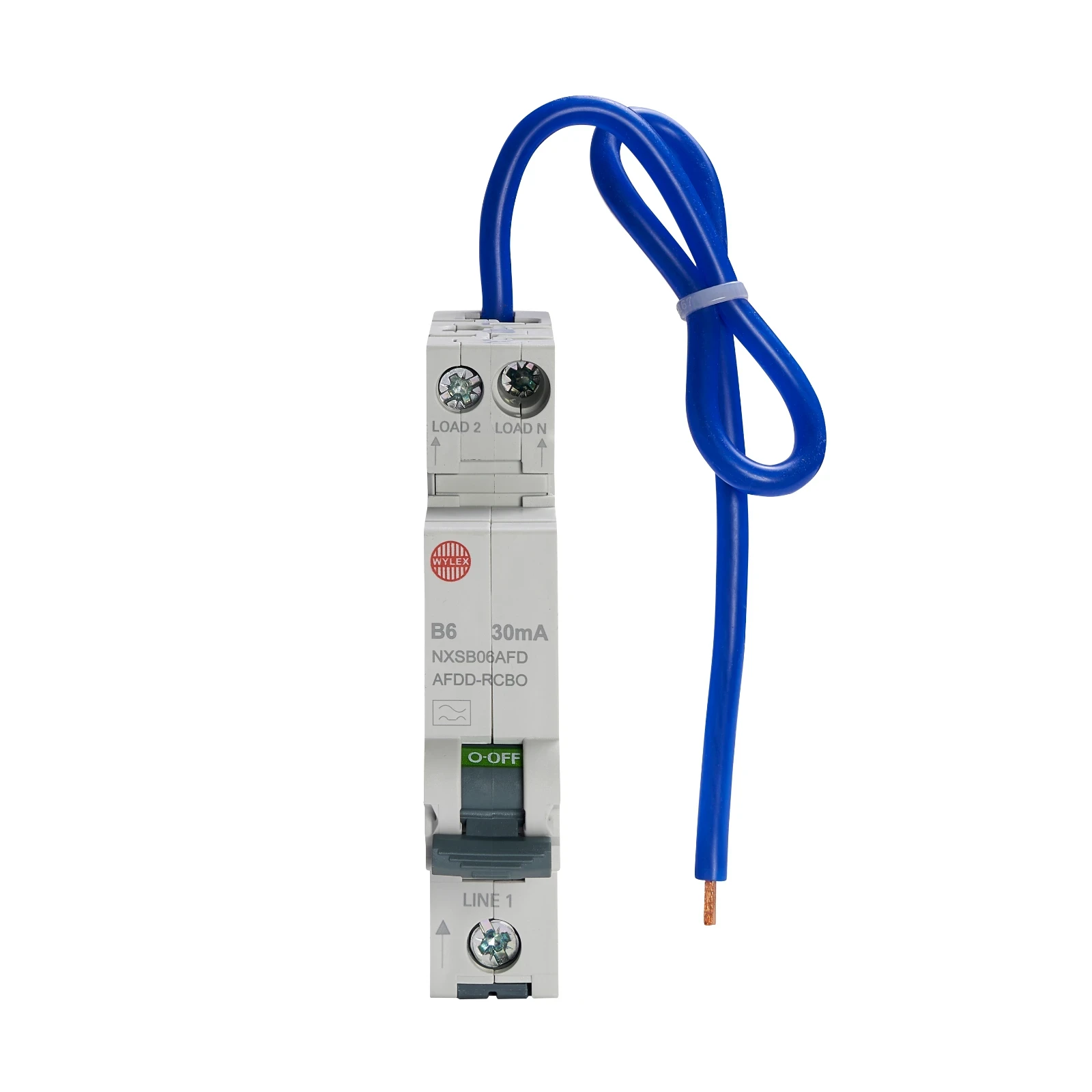

Wylex 6A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO
£130.33 Incl. VAT
Wylex NXSB06AFD 6A Double Pole 1 Module B Curve 6kA 30mA AFDD Combined RCBO, Fits all new and exisiting installations and combines 3 technologies, AFDD technology automatically disconnects dangerous electrical arcs that can cause fires ,MCB technology prevents overload currents and overheating, RCD technology which prevents electrical shocks, All in one single compact module · · · Single module, Miniature AFDD/RCBO combined · · 6A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units and NH L range Distribution Boards
554 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Number of poles (total) 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Tripping characteristic (type/curve) B Rated current 6 A Recess depth 73 mm Rated voltage 230 V Width in number of modular spacings 1 Current limiting class 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated fault current 0.03 A Rated insulation voltage Ui 400 V Number of protected poles 1 Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
