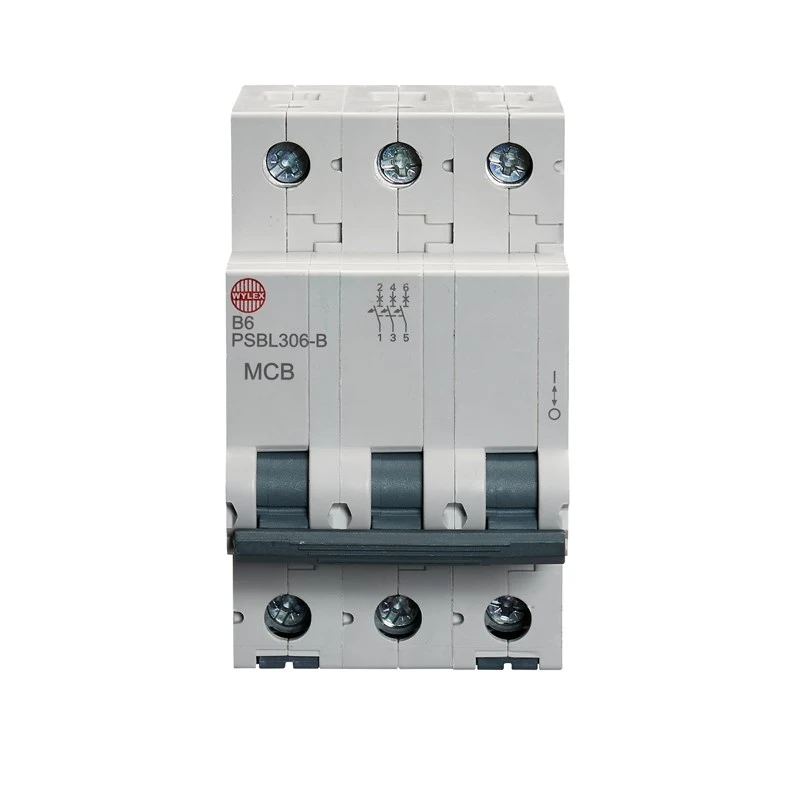

Wylex 6A Three pole MCB B curve 10kA
£41.84 Incl. VAT
· · B curve trip characterisitic (3-5In) · · Three Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Number of protected poles 3 Rated insulation voltage Ui 400 V Current limiting class 3 Over voltage category 3 Rated current 6 A Ambient temperature during operating -5 – 40 °C Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No
