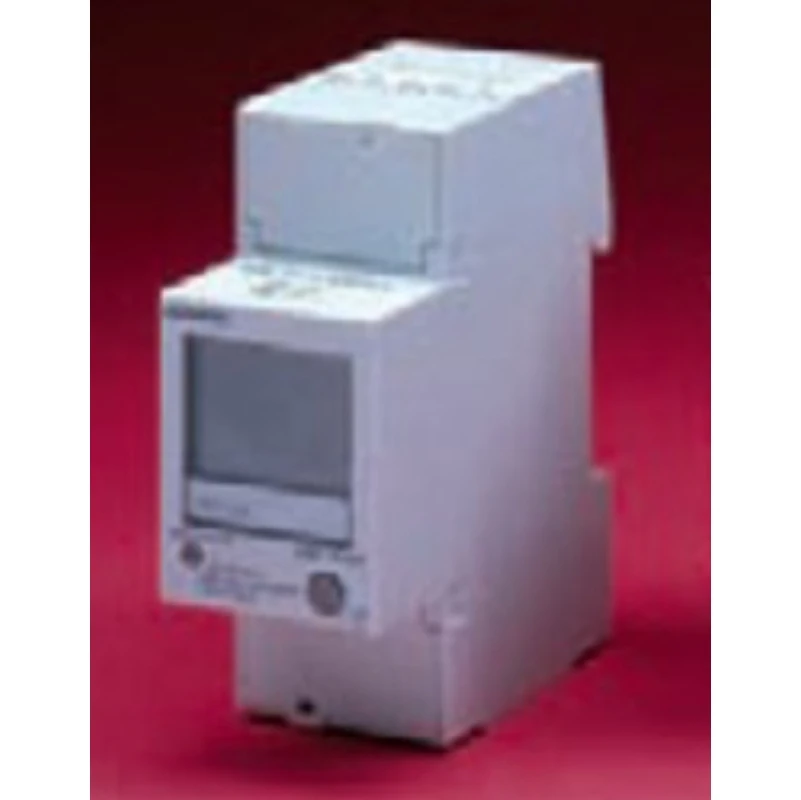

Wylex 80A 1P+N Direct Connection kWh Meter
£248.15 Incl. VAT
Direct Connected Digital kWh meter. Pulsed output for BMS monitoring. DIN Rail mounting For use in DIN enclosures eg: NHAB · · · Accessory for NH Distribution Boards · · Maximum terminal capacity = 35mm² · · kWh Meter · · Pulsed output · · Green backlit display
Out of Stock
Description
Technical Specifications Technical Specifications Electricity meter Width in number of modular spacings 2 Frequency 50 – 60 Hz Nominal current (In) 80 A Nominal voltage (Un) N-L 230 – 230 V Nominal voltage (Un) L-L 230 – 230 V Pulse rate 1000 – 1000 Imp/kWh (kvarh) Escapement mechanism No Calibrated No Measuring type load profile No
