Wylex B40 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex B40 30mA 10kA 1P+N Type A RCBO (1MW)

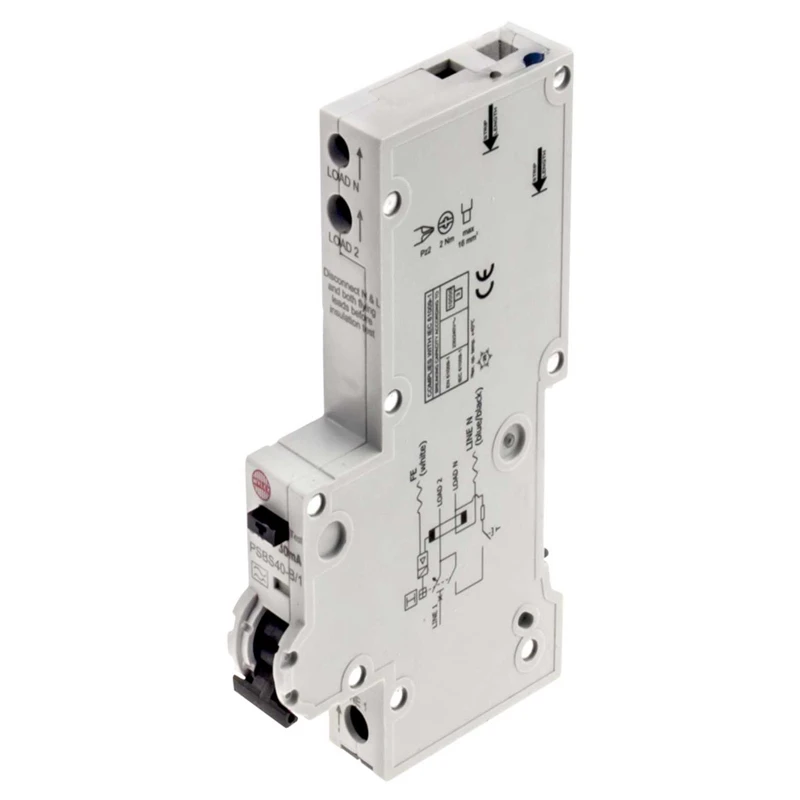

Wylex B40 30mA 10kA 1P+N Type A RCBO (1MW) - Image 2

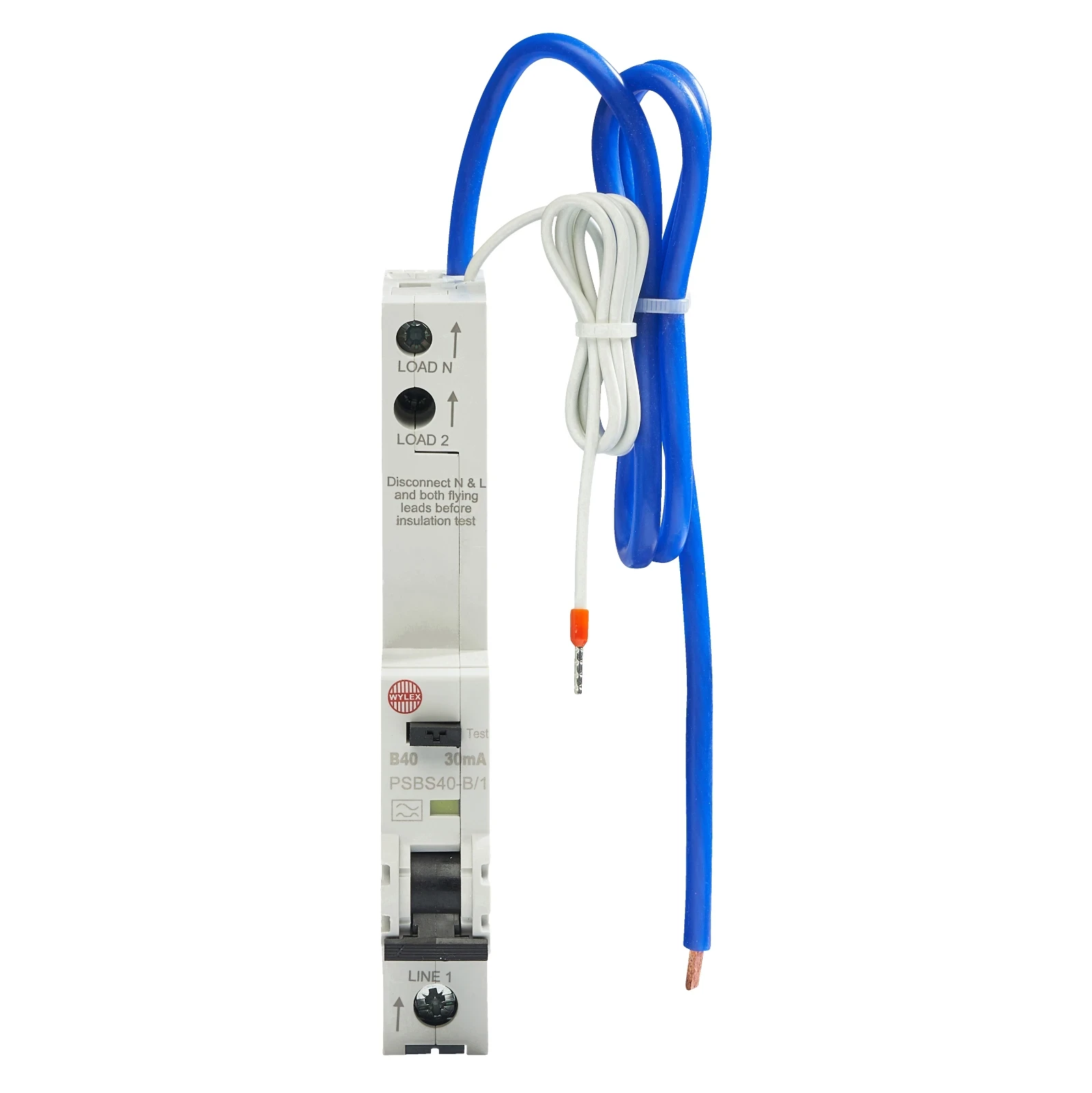

Wylex B40 30mA 10kA 1P+N Type A RCBO (1MW) - Image 3

Wylex B40 30mA 10kA 1P+N Type A RCBO (1MW)

£56.51 Incl. VAT

Wylex NH RCBO is a single pole, single module device, suitable for use in NH type A and B distribution boards. This comes with 600mm tail length and has rated 10kA switching with B characteristic curve. · · · Single Module 10kA RCBO · · 40A B curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Wylex NH Distribution Boards

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBS40-B/1 Categories: , , Brand: Part Number: 2500329894

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Over voltage category 3 Number of poles (total) 1 Rated insulation voltage Ui 400 V Rated current 40 A Rated voltage 230 V Rated short-circuit breaking capacity according to EN 61009 10 kA Rated fault current 0.03 A Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Current limiting class 3 Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
