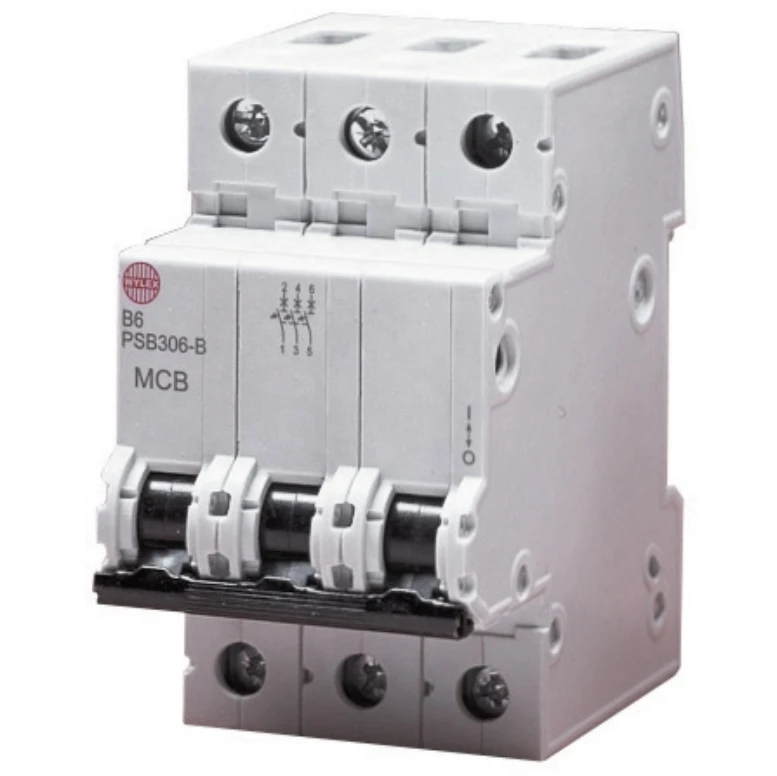

Wylex B6 10kA 3P MCB (3MW)
£40.02 Incl. VAT
Wylex PSB306-B MCB TP Type B 6A 10kA · · · B curve trip characteristic (3-5In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Energy limiting Class 3
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated insulation voltage Ui 400 V Current limiting class 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Number of protected poles 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated voltage 230 V Rated current 6 A Width in number of modular spacings 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
