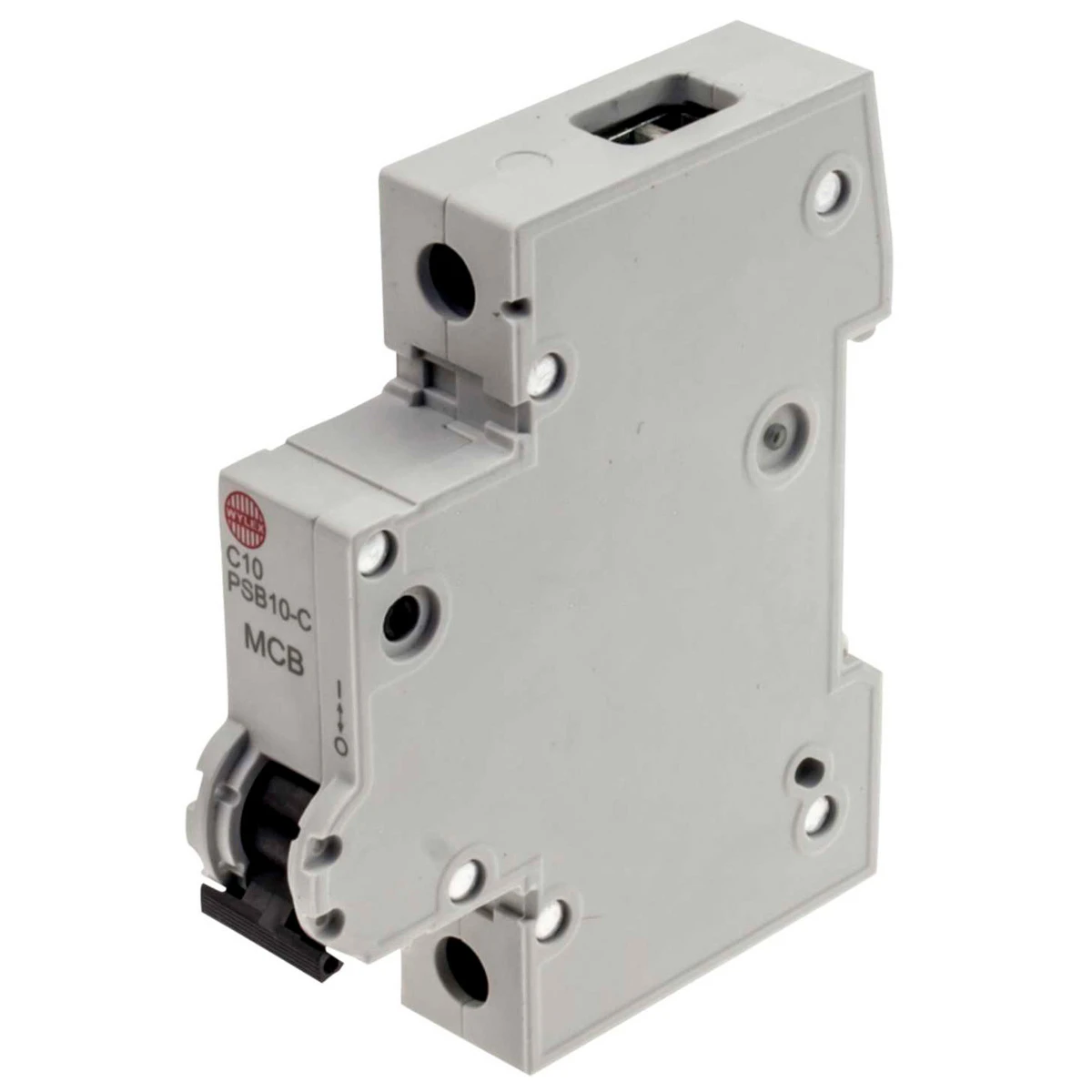

Wylex C10 10kA 1P MCB (1MW)
Wylex C10 10kA 1P MCB (1MW)
Wylex C10 10kA 1P MCB (1MW) - Image 2

Wylex C10 10kA 1P MCB (1MW)

£9.19 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop. · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Single pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · 30°C calibration temperature

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB10-C Categories: , , Brand: Product Code: 2500040760

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 400 V Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Rated voltage 230 V Over voltage category 3 Width in number of modular spacings 1 Rated current 10 A Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
