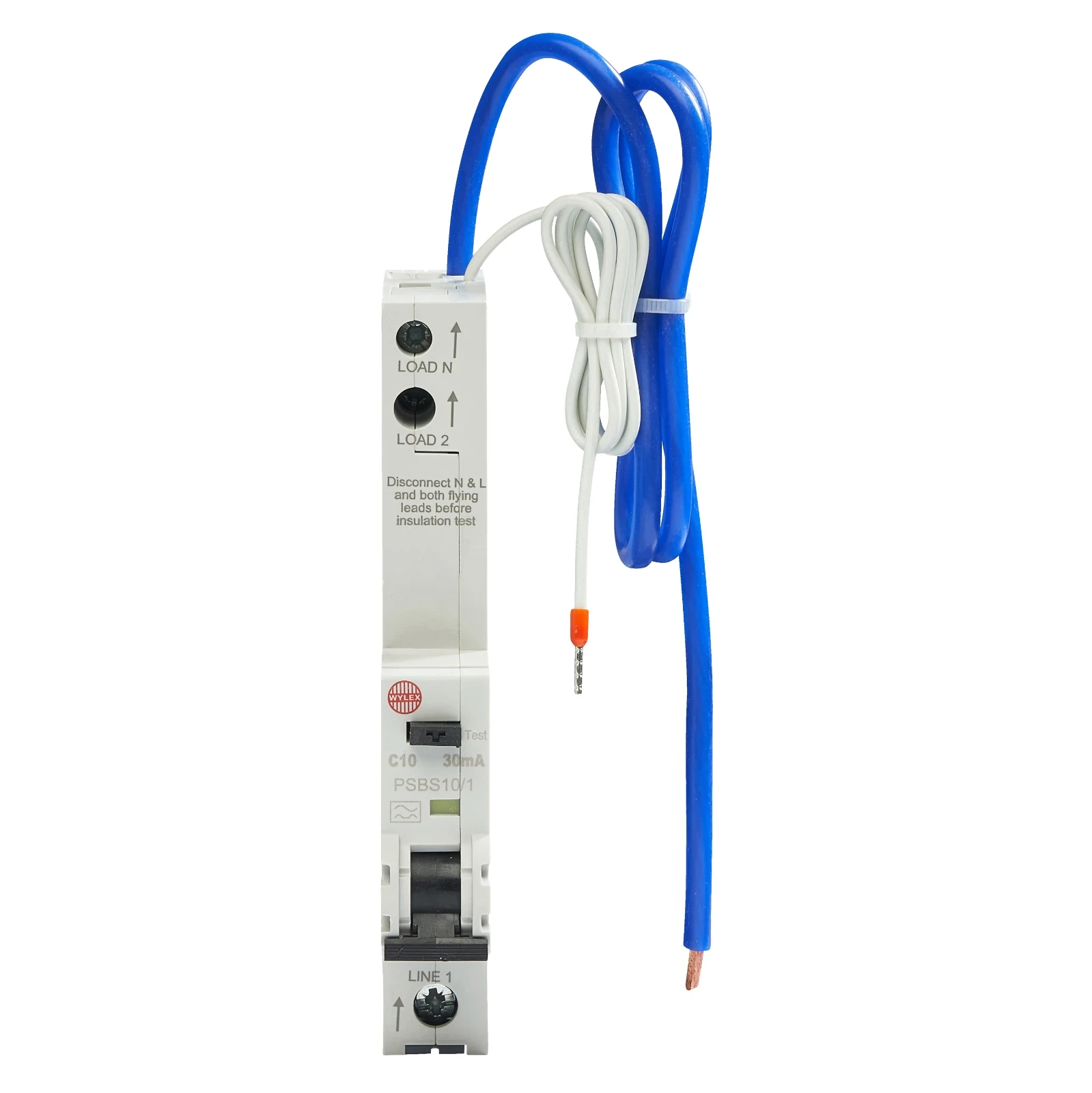

Wylex C10 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C10 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C10 30mA 10kA 1P+N Type A RCBO (1MW) - Image 2
Wylex C10 30mA 10kA 1P+N Type A RCBO (1MW) - Image 3

Wylex C10 30mA 10kA 1P+N Type A RCBO (1MW)

£56.51 Incl. VAT

PSBS10/1 is a Residual Current Circuit Breaker, employs the current balance principle which involves the supply conductors to the load (phase and neutral) being wound onto a common transformer core to form the primary windings. Single module RCBO for use in NH type A & B distribution board. 18mm wide, suitable for use within Loadstar Distribution Boards 30mA sensitivity, B or C characteristic, unswitched Neutral. · · · Single Module 10kA RCBO · · 10A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Wylex NH Distribution Boards · · Type C · · Voltage 230V · · Mounting type Din rail · · Tail length 600mm · · IP20

13 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBS10/1 Categories: , , Brand: Part Number: 2500116180

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 10 A Rated voltage 230 V Mounting method DIN rail Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Width in number of modular spacings 1 Current limiting class 3 Rated insulation voltage Ui 400 V Ambient temperature during operating -5 – 45 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity according to EN 61009 10 kA Rated fault current 0.03 A Number of protected poles 1 Over voltage category 3 With interlocking device No Concurrently switching N-neutral No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
