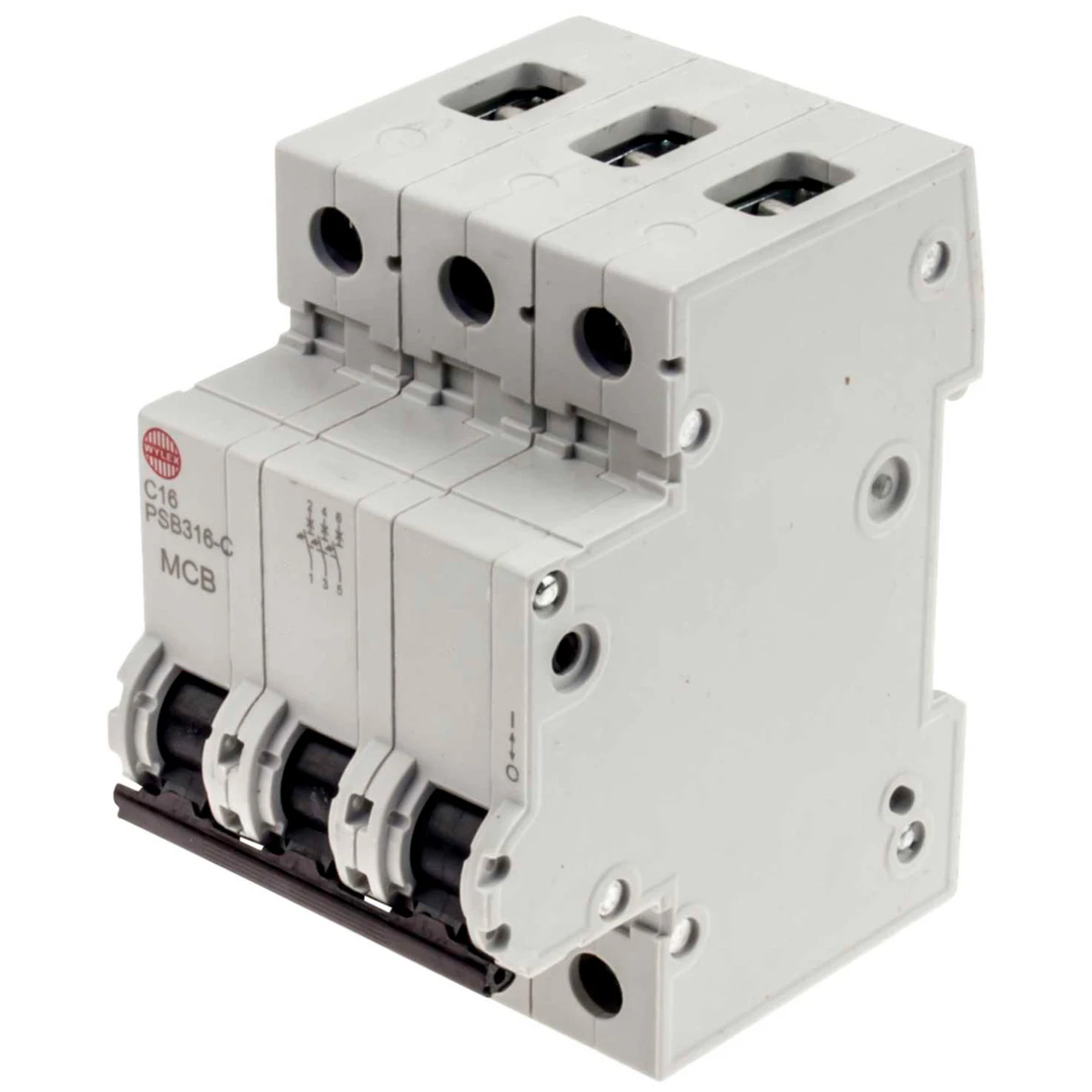

Wylex C16 10kA 3P MCB (3MW)
Wylex C16 10kA 3P MCB (3MW)
Wylex C16 10kA 3P MCB (3MW) - Image 2

Wylex C16 10kA 3P MCB (3MW)

£40.02 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop. · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · 30°C calibration temperature

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB316-C Categories: , , Brand: Product Code: 2500041524

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 16 A Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 3 Rated insulation voltage Ui 400 V Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Number of poles (total) 3 Over voltage category 3 Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
