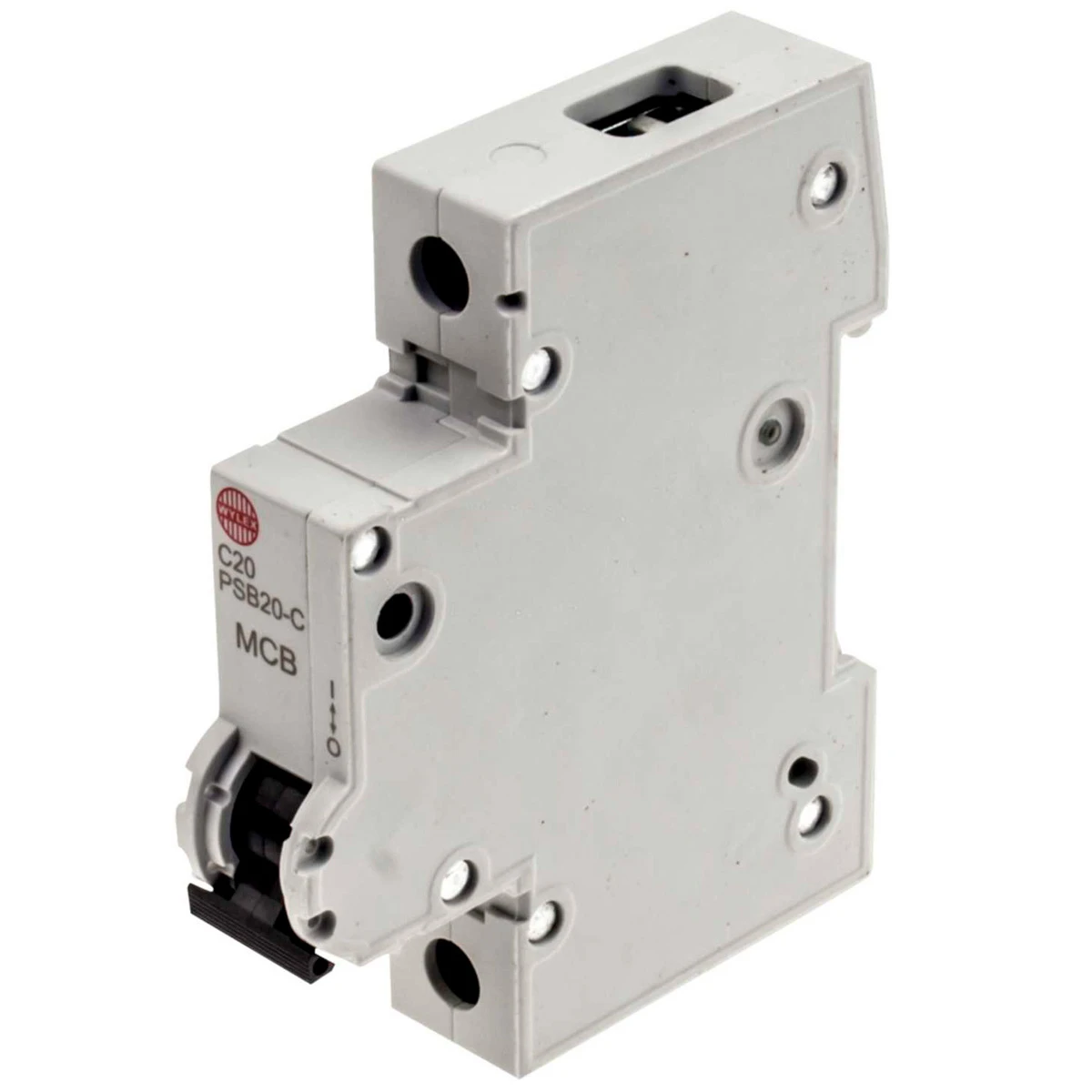

Wylex C20 10kA 1P MCB (1MW)
Wylex C20 10kA 1P MCB (1MW)
Wylex C20 10kA 1P MCB (1MW) - Image 2

Wylex C20 10kA 1P MCB (1MW)

£9.19 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Single pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · Suitable for use within NH Distribution Board

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB20-C Categories: , , Brand: Product Code: 2500041026

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Rated insulation voltage Ui 400 V Rated voltage 230 V Width in number of modular spacings 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
