Circuit Breakers & Devices

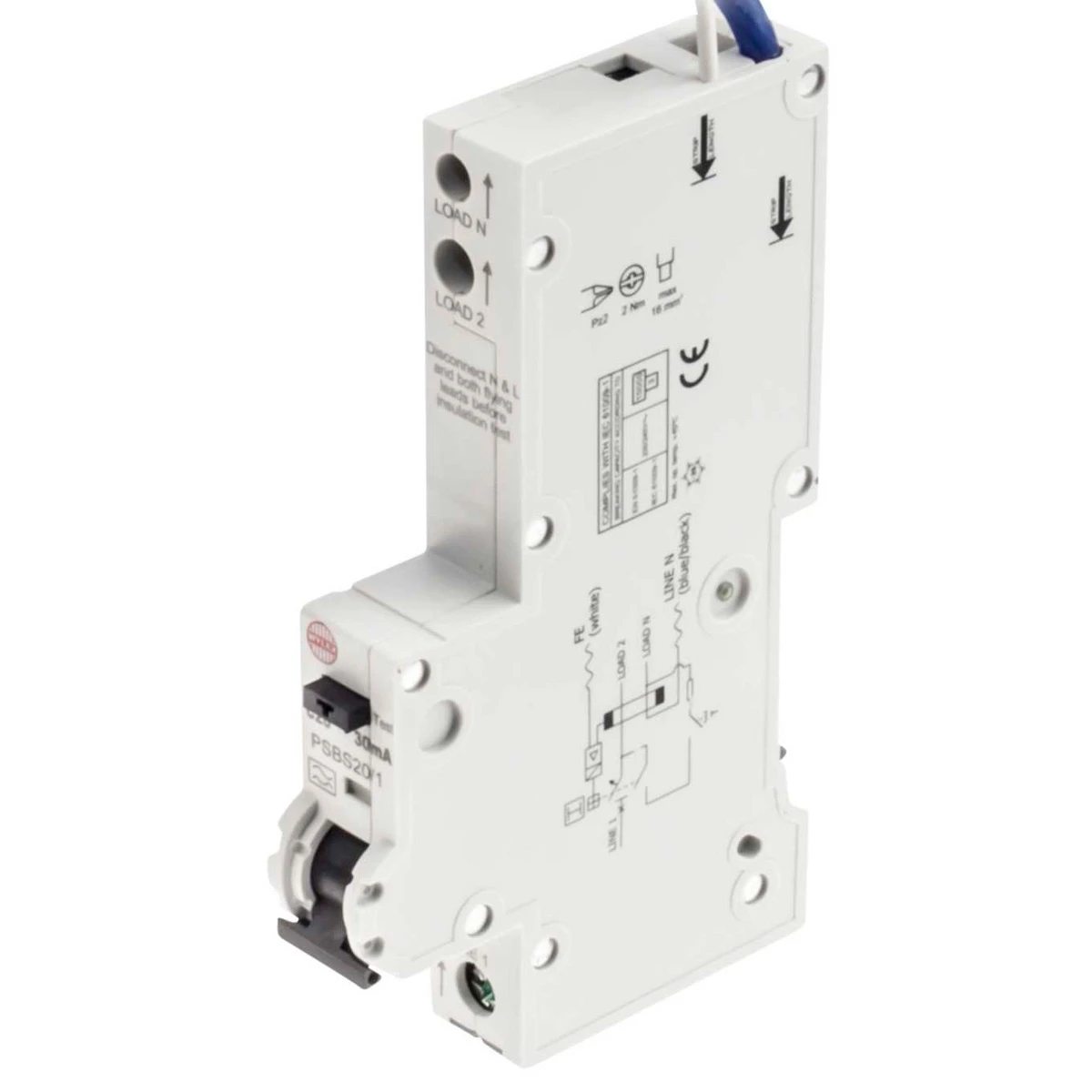

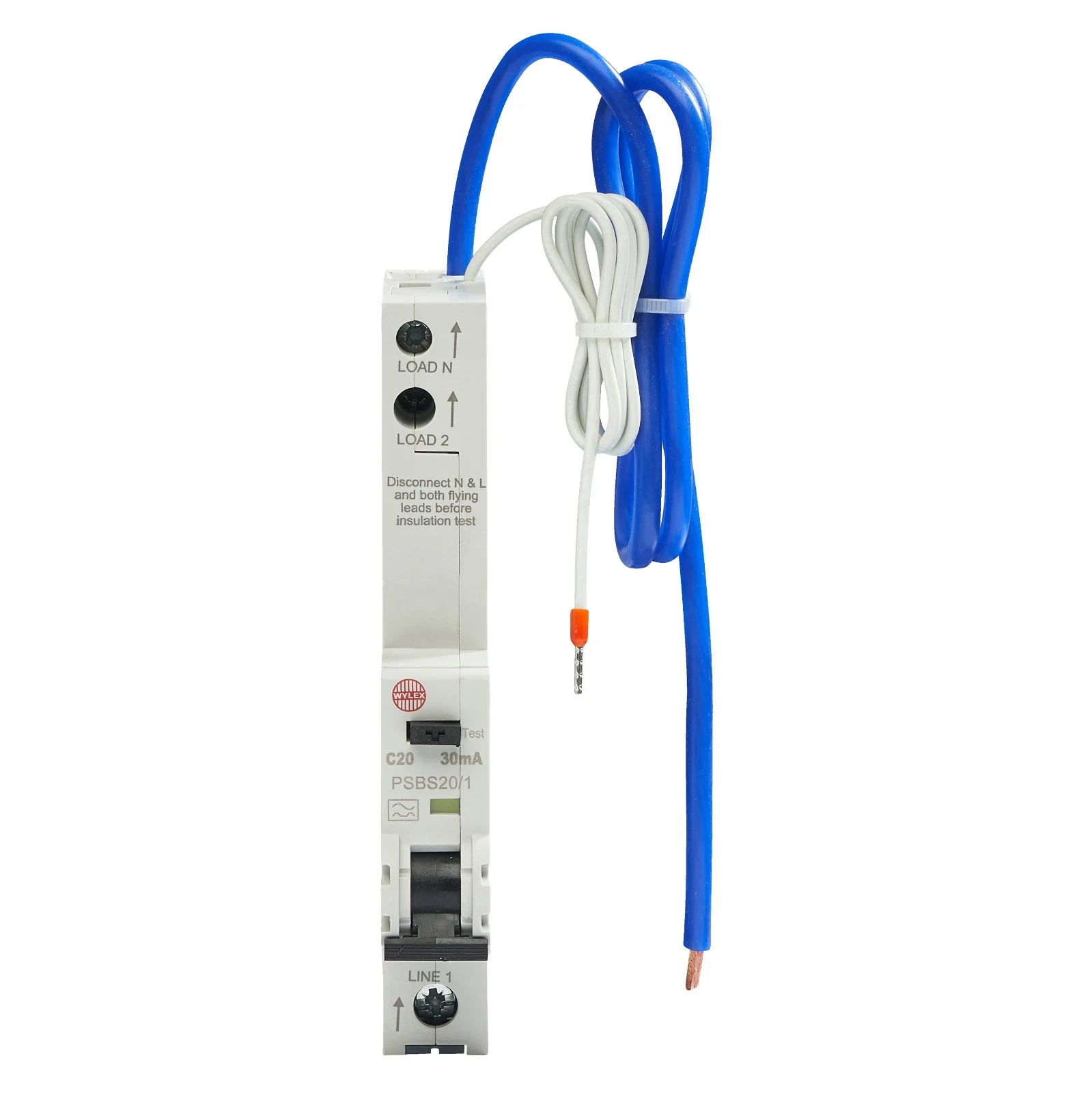

Wylex C20 30mA 10kA 1P+N Type A RCBO (1MW)

Brand: WylexProduct code: PSBS20/1Go Magpie Ref: 5060062362097

PSBS20/1 is a Residual Current Circuit Breaker, employs the current balance principle which involves the supply conductors to the load (phase and neutral) being wound onto a common transformer core to form the primary windings. Single module RCBO for use in NH type A & B distribution board. 18mm wide, suitable for use within Loadstar Distribution Boards 30mA sensitivity, B or C characteristic, unswitched Neutral. · · · Single Module 10kA RCBO · · 20A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Wylex NH Distribution Boards · · Type C · · Voltage 230V · · Mounting type Din rail · · Tail length 600mm · · IP20

£63.60inc VAT£53.00 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 20 A Rated voltage 230 V Width in number of modular spacings 1 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Current limiting class 3 Number of protected poles 1 Rated insulation voltage Ui 400 V Rated fault current 0.03 A Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
