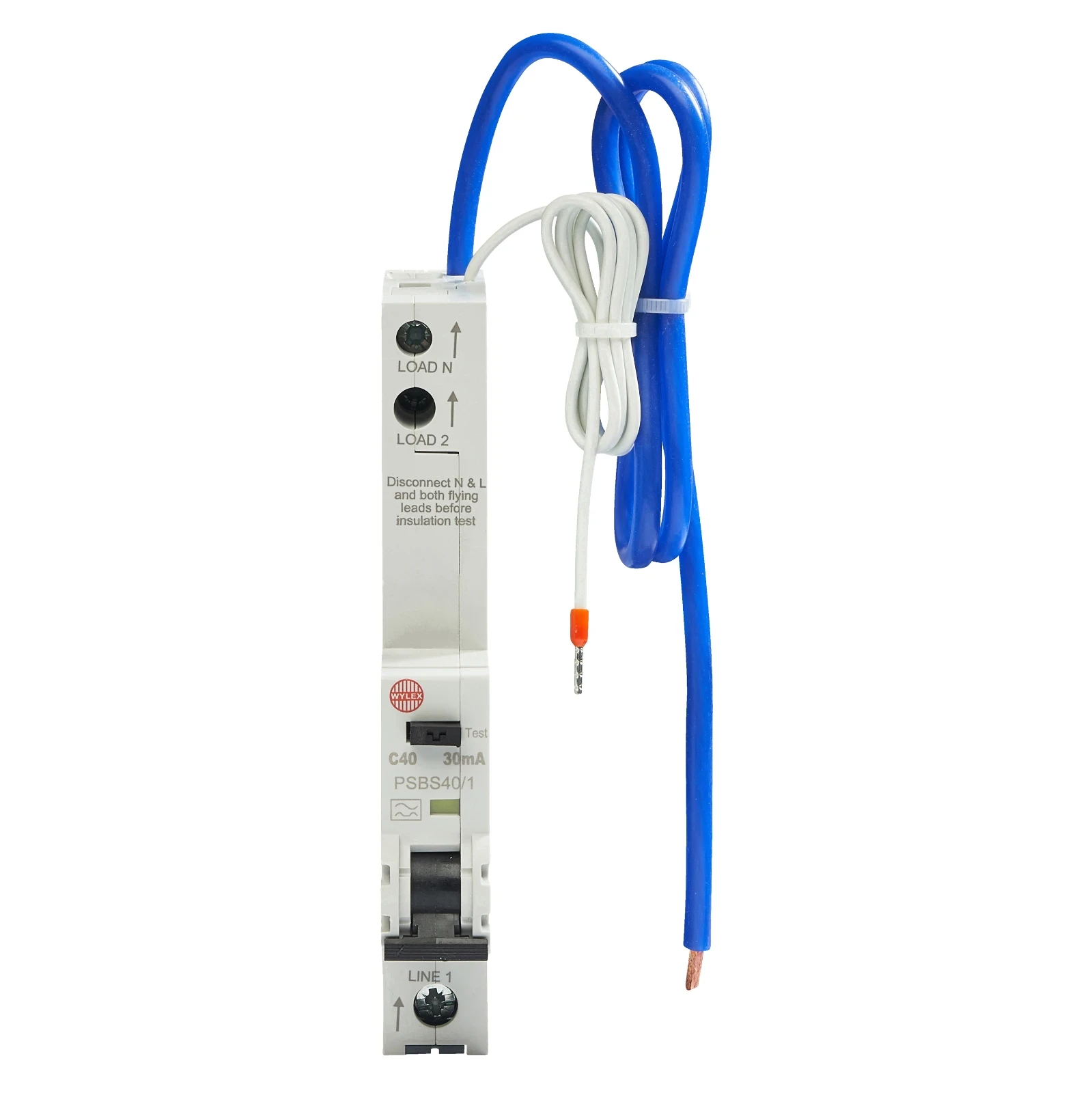

Wylex C40 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C40 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C40 30mA 10kA 1P+N Type A RCBO (1MW) - Image 2
Wylex C40 30mA 10kA 1P+N Type A RCBO (1MW) - Image 3

Wylex C40 30mA 10kA 1P+N Type A RCBO (1MW)

£63.60 Incl. VAT

The Wylex range of NH distribution Boards is designed to cater for a variety of industrial and commercial applications. The range of boards is complemented by a wide variety of incoming options including direct connection, switch disconnector and RCD, out · · · Single Module 10kA RCBO · · 40A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Wylex NH Distribution Boards · · Voltage Rating: 230V AC · · Voltage 230V · · Mounting type Din rail · · IP20

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBS40/1 Categories: , , Brand: Product Code: 2500116174

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated short-circuit breaking capacity according to EN 61009 10 kA Rated current 40 A Rated voltage 230 V Width in number of modular spacings 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Number of poles (total) 1 Over voltage category 3 Number of protected poles 1 Current limiting class 3 Connectable conductor cross section solid-core 0.75 – 16 mm² Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
