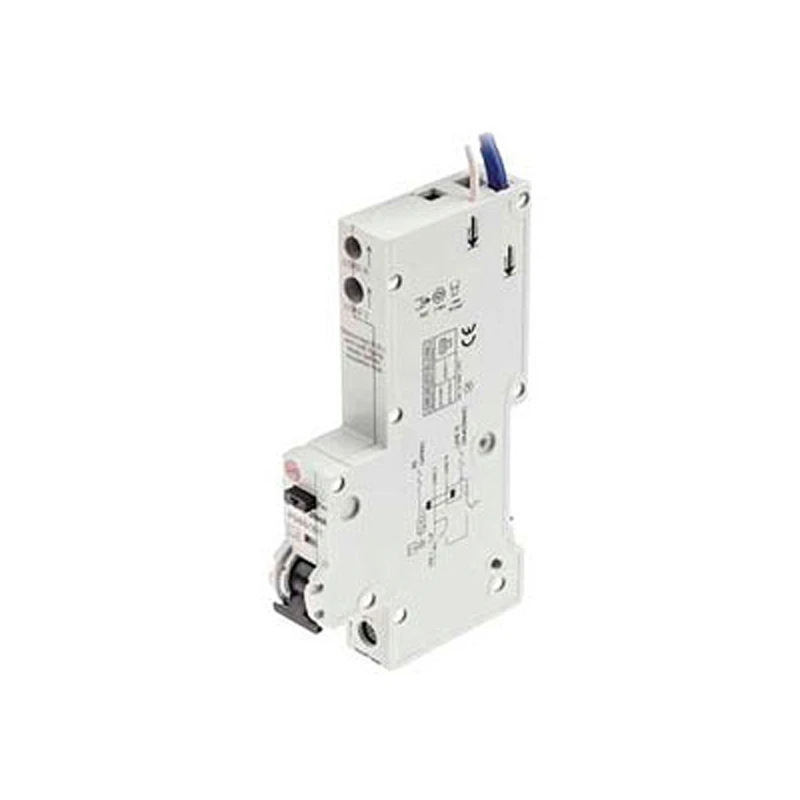

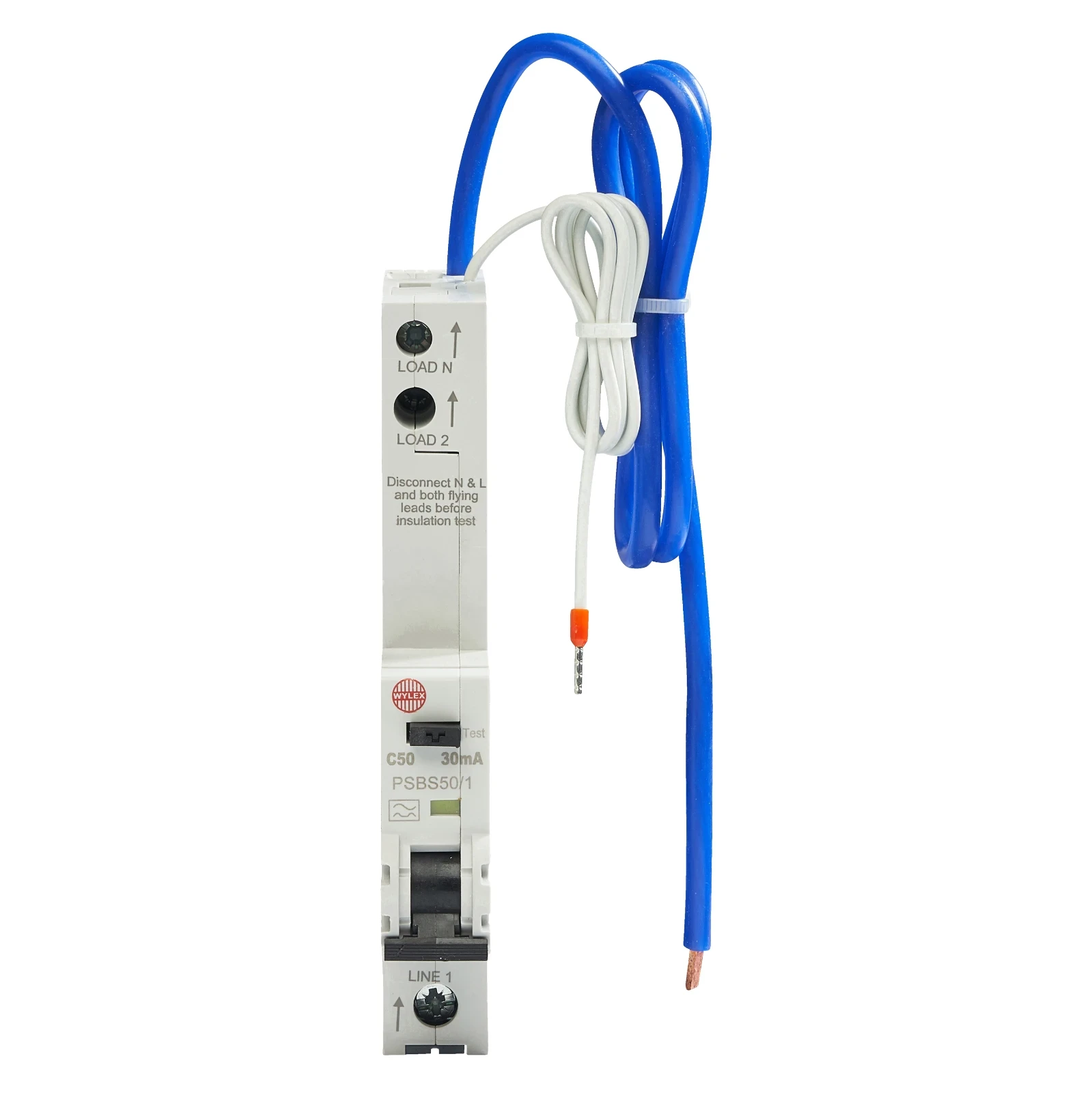

Wylex C50 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C50 30mA 10kA 1P+N Type A RCBO (1MW)
Wylex C50 30mA 10kA 1P+N Type A RCBO (1MW) - Image 2
Wylex C50 30mA 10kA 1P+N Type A RCBO (1MW) - Image 3

Wylex C50 30mA 10kA 1P+N Type A RCBO (1MW)

£58.97 Incl. VAT

Single module RCBO for use in NH type A & B distribution board. 18mm wide, suitable for use within Loadstar Distribution Boards 30mA sensitivity, B or C characteristic, unswitched Neutral. · · · Single Module 10kA RCBO · · 50A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Wylex NH Distribution Boards · · Type C · · Voltage 230V · · Mounting type Din rail · · Tail length 600mm · · IP20

1 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBS50/1 Categories: , , , Brand: Part Number: 2500116175

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Rated current 50 A Rated insulation voltage Ui 400 V Number of protected poles 1 Over voltage category 3 Rated short-circuit breaking capacity according to EN 61009 10 kA Width in number of modular spacings 1 Current limiting class 3 Number of poles (total) 1 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Concurrently switching N-neutral No With interlocking device No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
