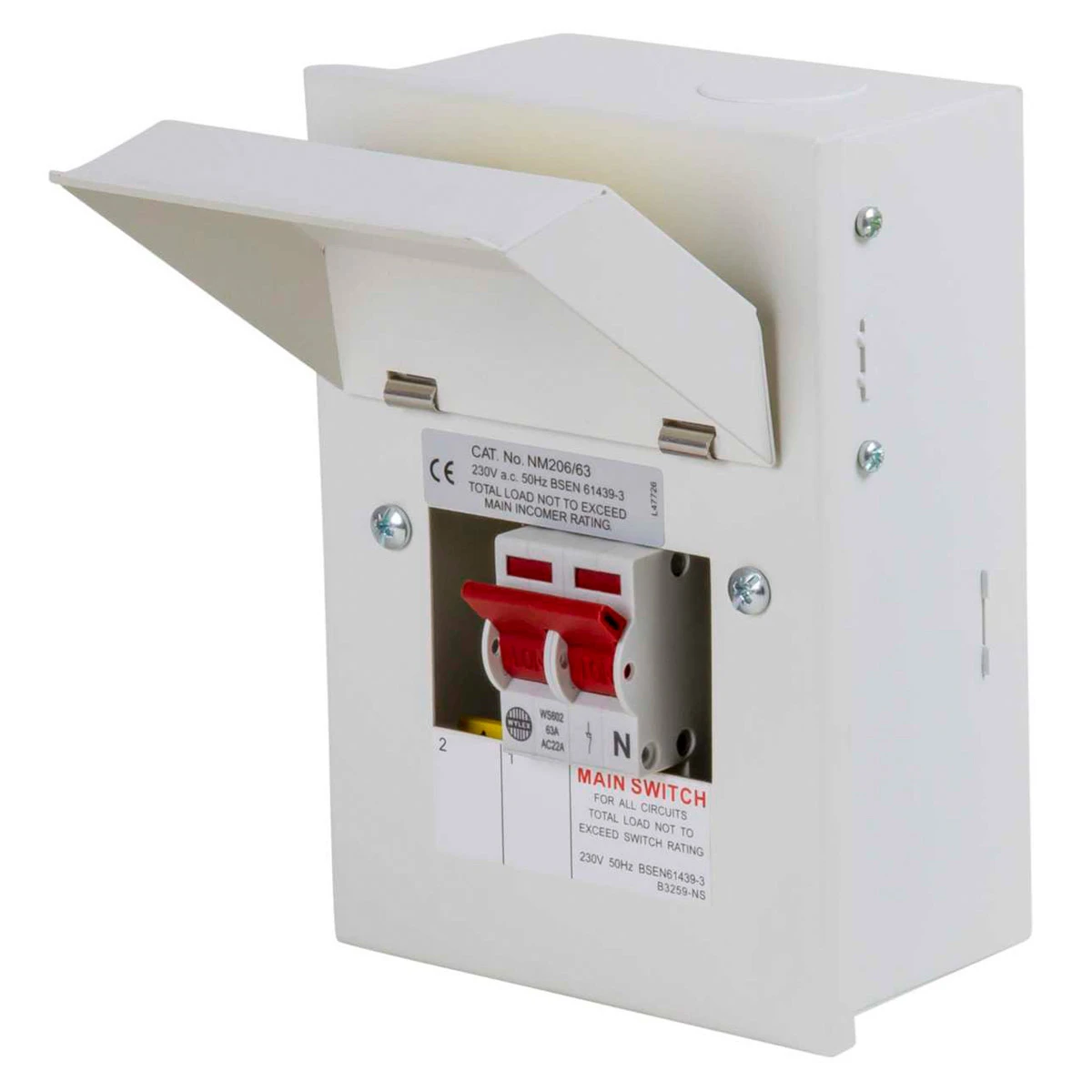

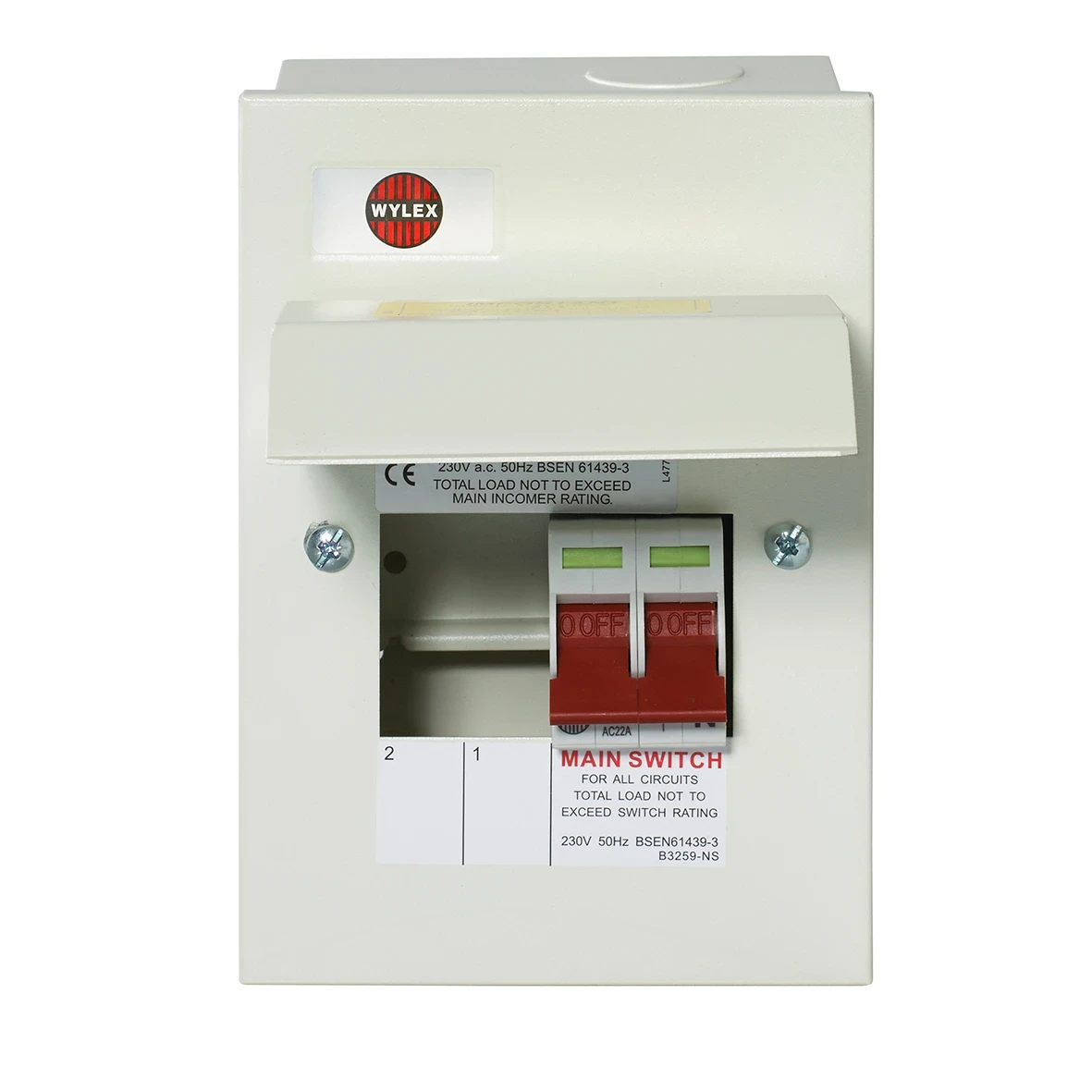

Wylex 2 Way Consumer Unit Main Switch 63A
Brand: WylexProduct code: NM206/63Go Magpie Ref: 5060062298371
This Main Switch Consumer Unit, comes with metal enclosure, no external plastic parts. It features compact enclosure, available in ‘no miss terminal’ fixed busbar versions and flexible versions. It is constructed with cable entry knockouts on 5 sides, top, bottom, left, right and rear, mains tails cable entry grommet/gland for supplementary insulation similar to Class II level of protection to mains tails. · · · 2W Main switch only consumer unit · · Includes a 63A double pole main switch · · Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1 · · Constructed from a full metal enclosure with angled visor
£63.06inc VAT£52.55 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Small distribution board equipped Housing material Steel Degree of protection (IP rating) IP2XC Width 130 mm Height 185 mm Depth 104 mm Width in number of modular spacings 4 Main switch rated current 63 A Number of phases 1 Total number of groups 1 Number of poles main switch 2 Extension possible No Number of outgoing ways 2 Lockable No With transparent cover No Over voltage-/surge protection No · Technical Data Sheet – Click to Download
