FULL-7892
2 product images available
Circuit Breakers & Devices

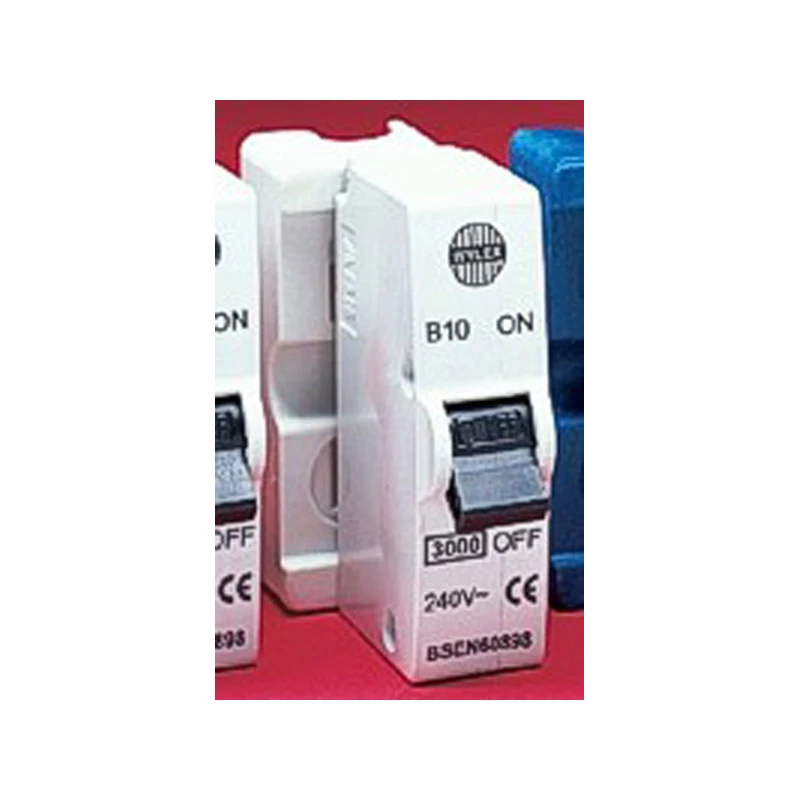

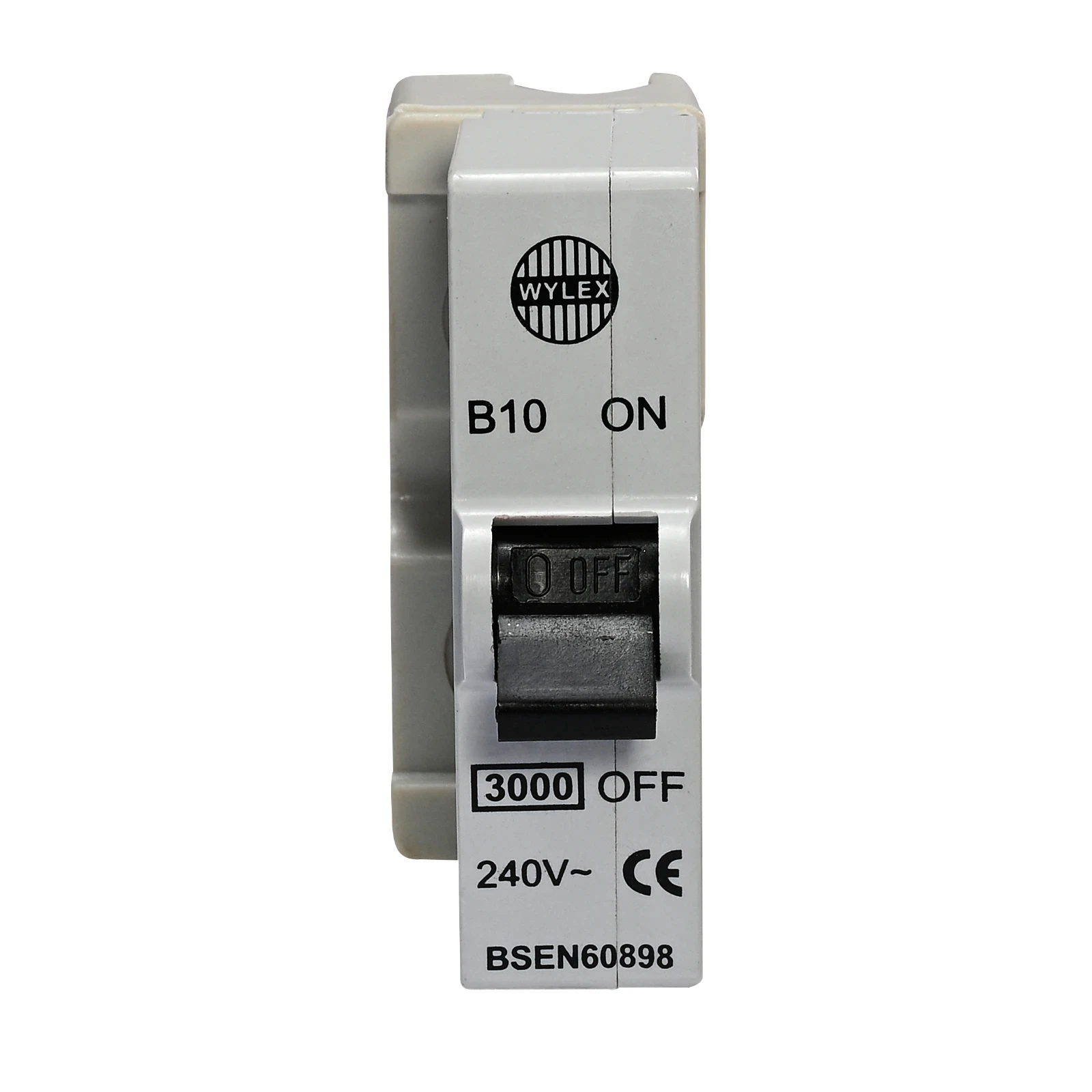

Wylex 10A SP Type B 6kA MCB Standard

SKU: B10Go Magpie ID: 5060062299185

A Miniature Circuit Breaker, most widely used in Standard range of consumer unit. MCB operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate. Wylex plug-in MCB detects overcurrent due · · · Spare plug in MCB, 10A · · Wylex Standard range · · Colour coded grey · · Single pole · · Curve B

£30.44inc VAT£25.37 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 3 kA Number of poles (total) 1 Rated insulation voltage Ui 400 V Current limiting class 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Rated voltage 230 V Rated current 10 A Width in number of modular spacings 1 Additional equipment possible No Frequency 50 – 50 Hz Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
