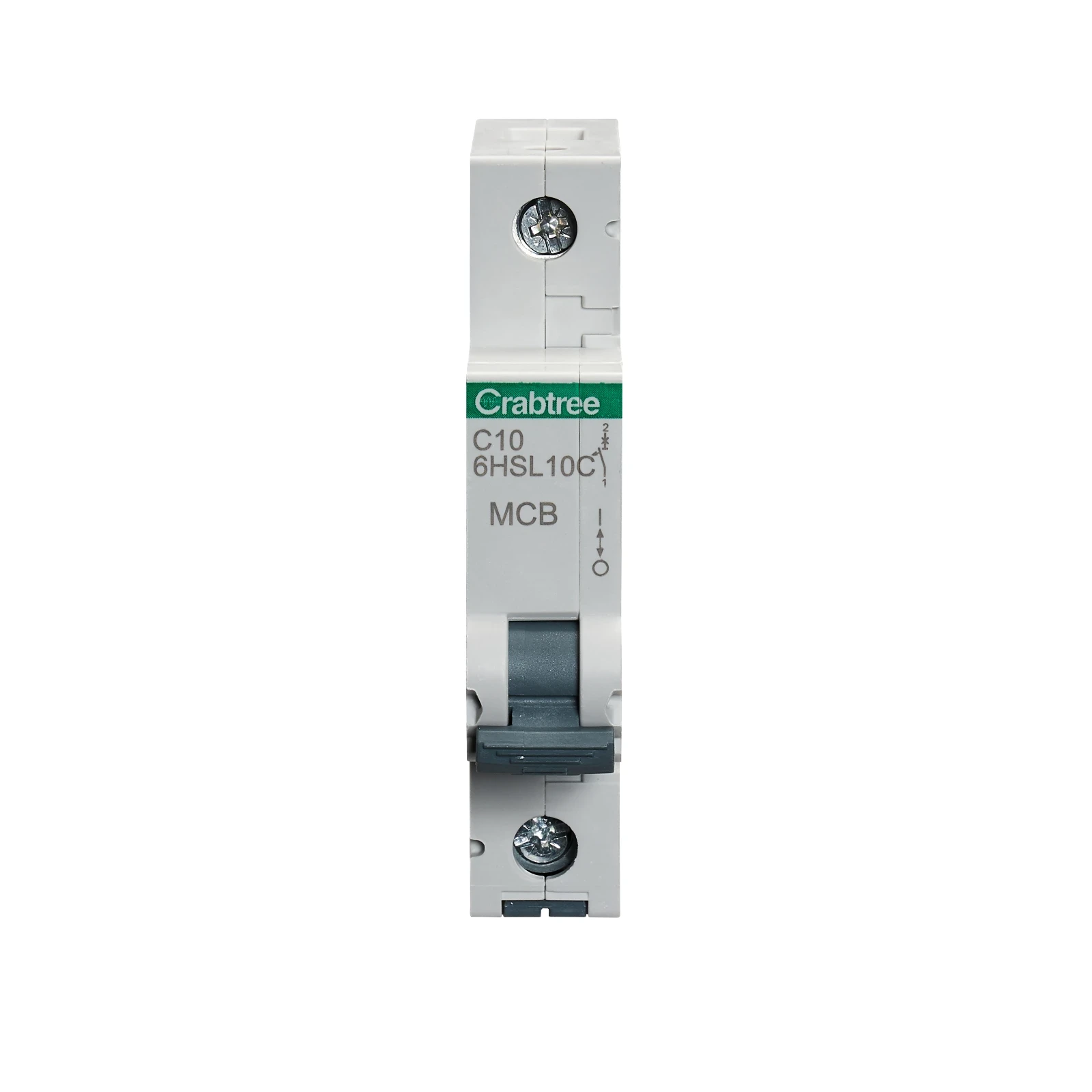

Crabtree 10A SP MCB Type C 10kA
Crabtree 10A SP MCB Type C 10kA
Crabtree 10A SP MCB Type C 10kA - Image 2
Crabtree 10A SP MCB Type C 10kA - Image 3

Crabtree 10A SP MCB Type C 10kA

£23.57 Incl. VAT

· · C curve trip characteristic (5-10In) · · Single Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSL10C Categories: , , Brand: Product Code: 2501514661

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Rated voltage 230 V Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Rated insulation voltage Ui 400 V Over voltage category 3 Number of protected poles 1 Width in number of modular spacings 1 Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
