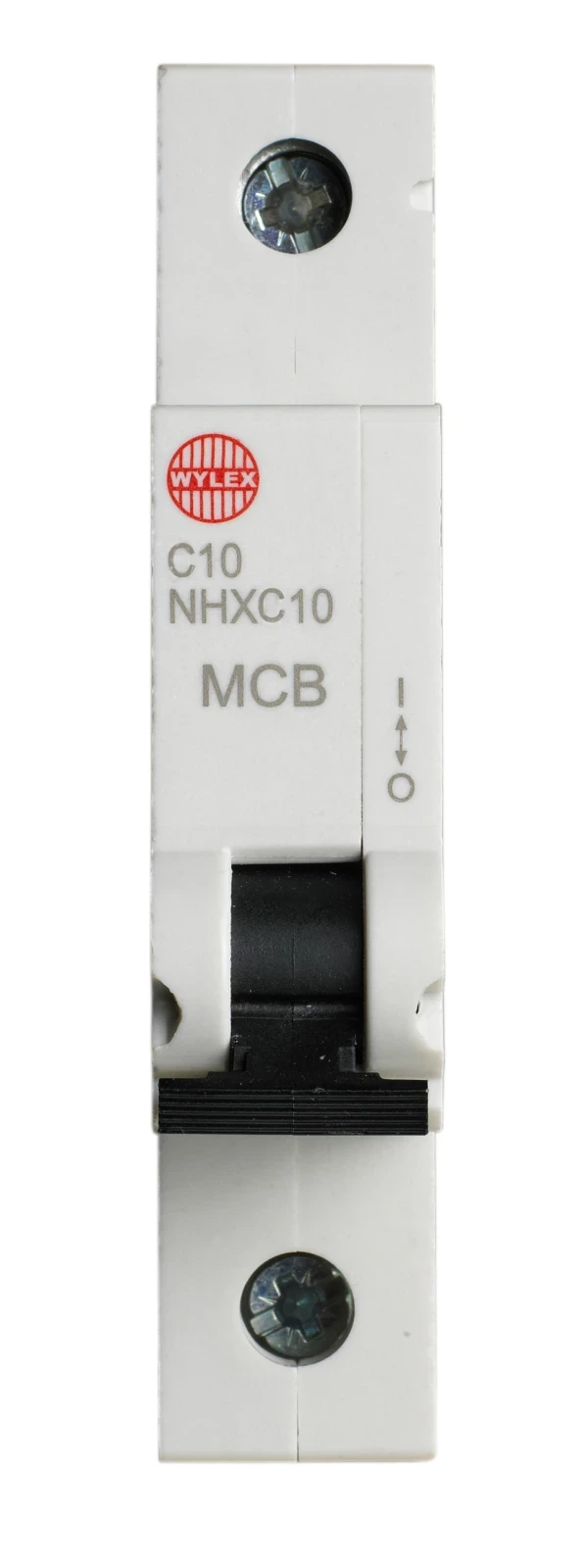

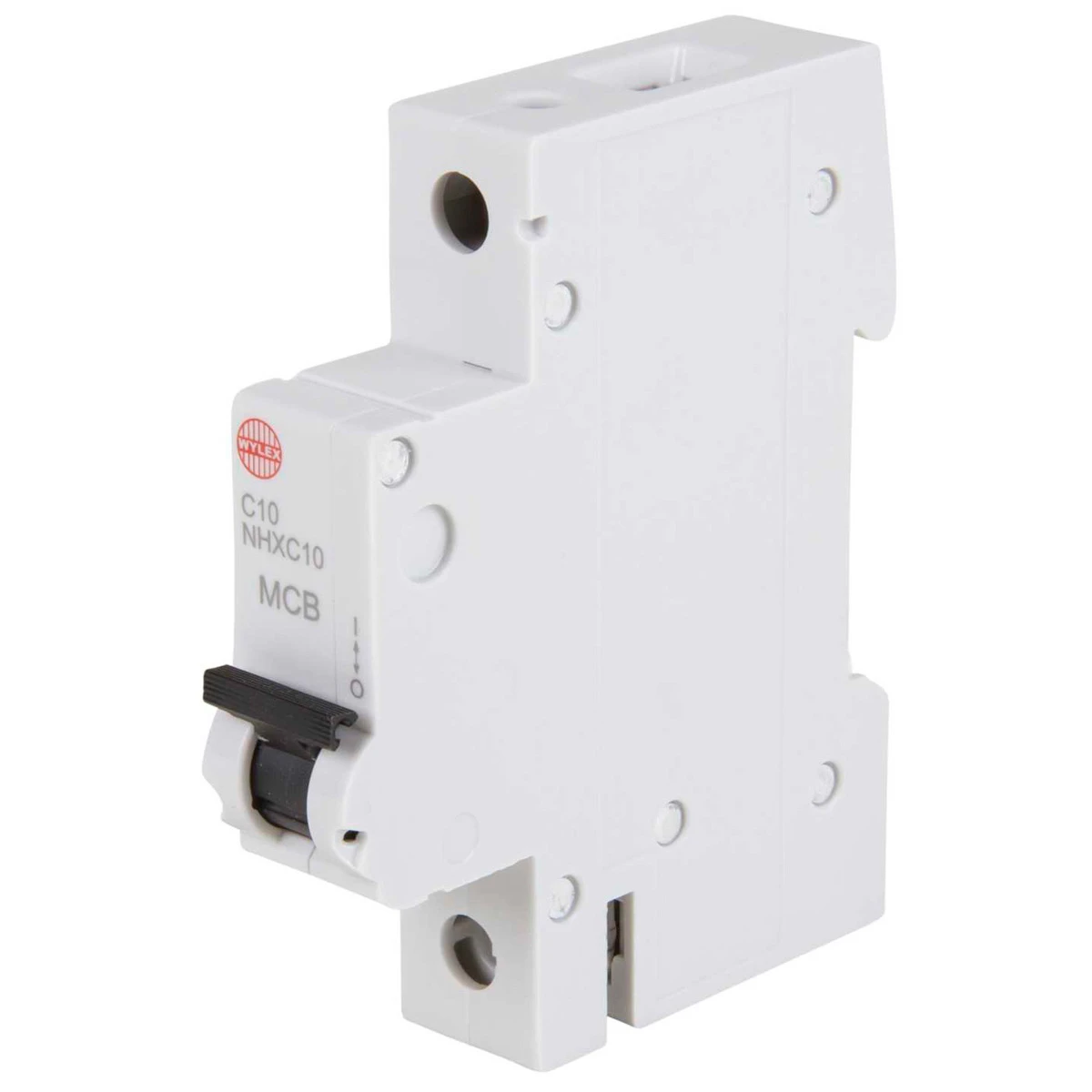

Wylex 10A SP Type C 6kA MCB

SKU: NHXC10Go Magpie ID: 5060062338991

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the on position the MCB is free to trip. Adjacent thermal-magnetic MCBs sho · · · Single pole MCB, 16A C curve · · Energy limiting Class 3 · · Balcony terminal position · · 6kA Fault Rating · · Suitable for use within Wylex NM/NH Consumer Units · · Compliant with BS EN 60898 · · 25mm2 terminal capacity

£6.04inc VAT£5.03 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 10 A Recess depth 73 mm Rated voltage 230 V Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Rated insulation voltage Ui 400 V Number of poles (total) 1 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Width in number of modular spacings 1 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
