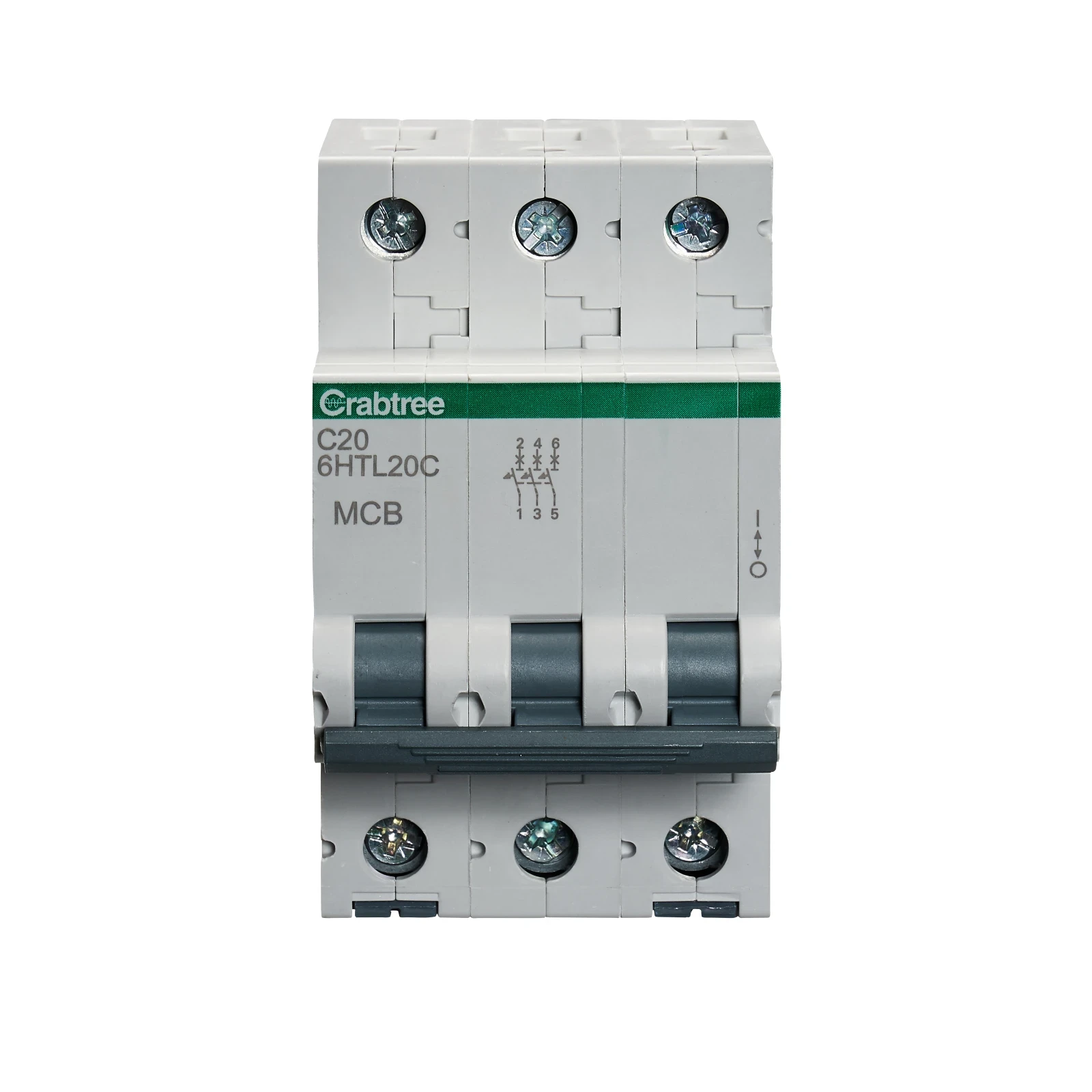

Crabtree 20A TP MCB Type C 10kA
Crabtree 20A TP MCB Type C 10kA
Crabtree 20A TP MCB Type C 10kA - Image 2
Crabtree 20A TP MCB Type C 10kA - Image 3

Crabtree 20A TP MCB Type C 10kA

£100.07 Incl. VAT

· · C curve trip characteristic (5-10In) · · Triple pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HTL20C Categories: , , Brand: Product Code: 2501514723

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 3 Over voltage category 3 Current limiting class 3 Width in number of modular spacings 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Frequency 50 – 50 Hz Rated insulation voltage Ui 400 V Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Additional equipment possible No · Technical Data Sheet – Click to Download
