Circuit Breakers & Devices

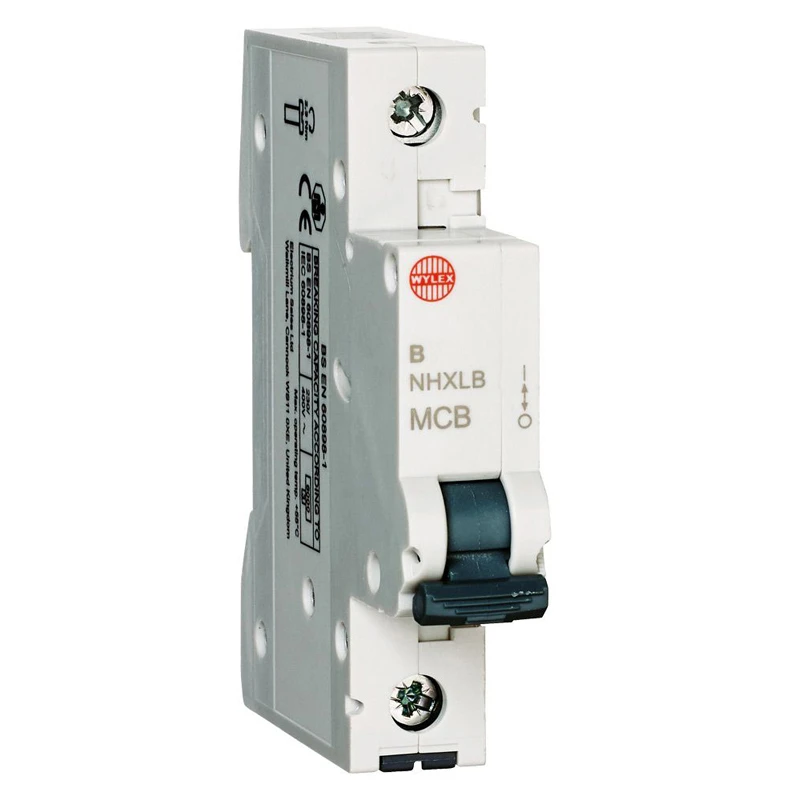

Wylex 25A SP Type B 6kA MCB

Brand: WylexProduct code: NHXLB25Go Magpie Ref: 5060062302972

Wylex NHXL Miniature Circuit Breaker is a single pole type-B curve for consumer unit. It is complied with BS EN 60898-1 certification, has any mounting position and the influence of surrounding temperature is maximum 95% humidity. · · · Single pole MCB, 25A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Suitable for use within NM/NMX Distribution Boards · · BS EN 60898-1

£5.33inc VAT£4.44 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 25 A Rated insulation voltage Ui 400 V Current limiting class 3 Number of poles (total) 1 Width in number of modular spacings 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
