Wylex MCB 32A SP Type C 6kA
Wylex MCB 32A SP Type C 6kA
Wylex MCB 32A SP Type C 6kA - Image 2
Wylex MCB 32A SP Type C 6kA - Image 3

Wylex MCB 32A SP Type C 6kA

£5.58 Incl. VAT

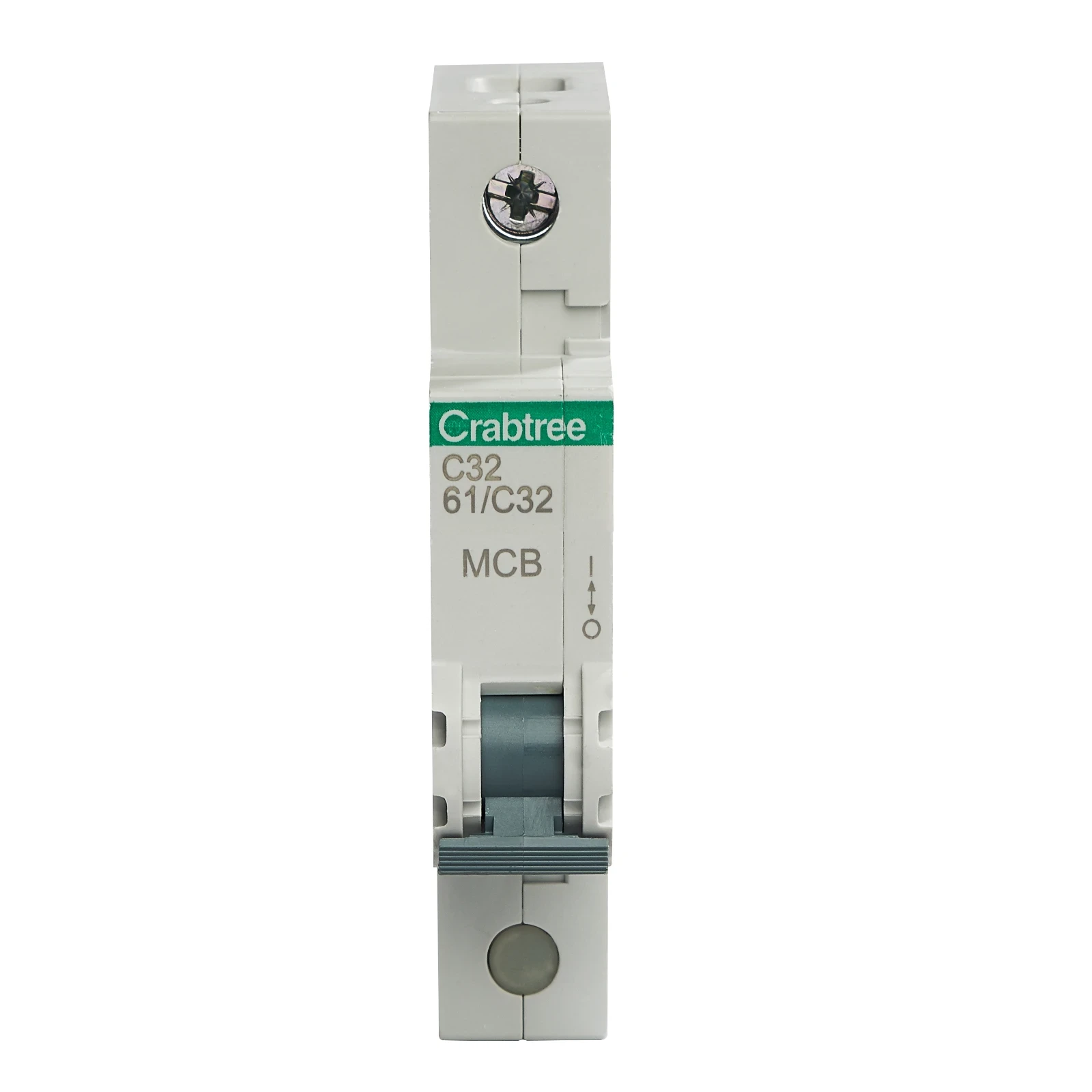

Crabtree Starbreaker Miniature Circuit Breaker with terminal capacity of 25mm² cable and 25mm modular width. Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents such · · · Single pole MCB, 32A C curve · · Energy limiting Class 3 · · Plug in · · Certified BS EN 60898, IEC 60898 standards · · Certified BS EN 60898 · · IEC 60898 standards

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 61/C32 Categories: , , Brand: Part Number: 2500047527

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Recess depth 73 mm Rated current 32 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Over voltage category 3 Rated voltage 230 V Number of protected poles 1 Current limiting class 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
