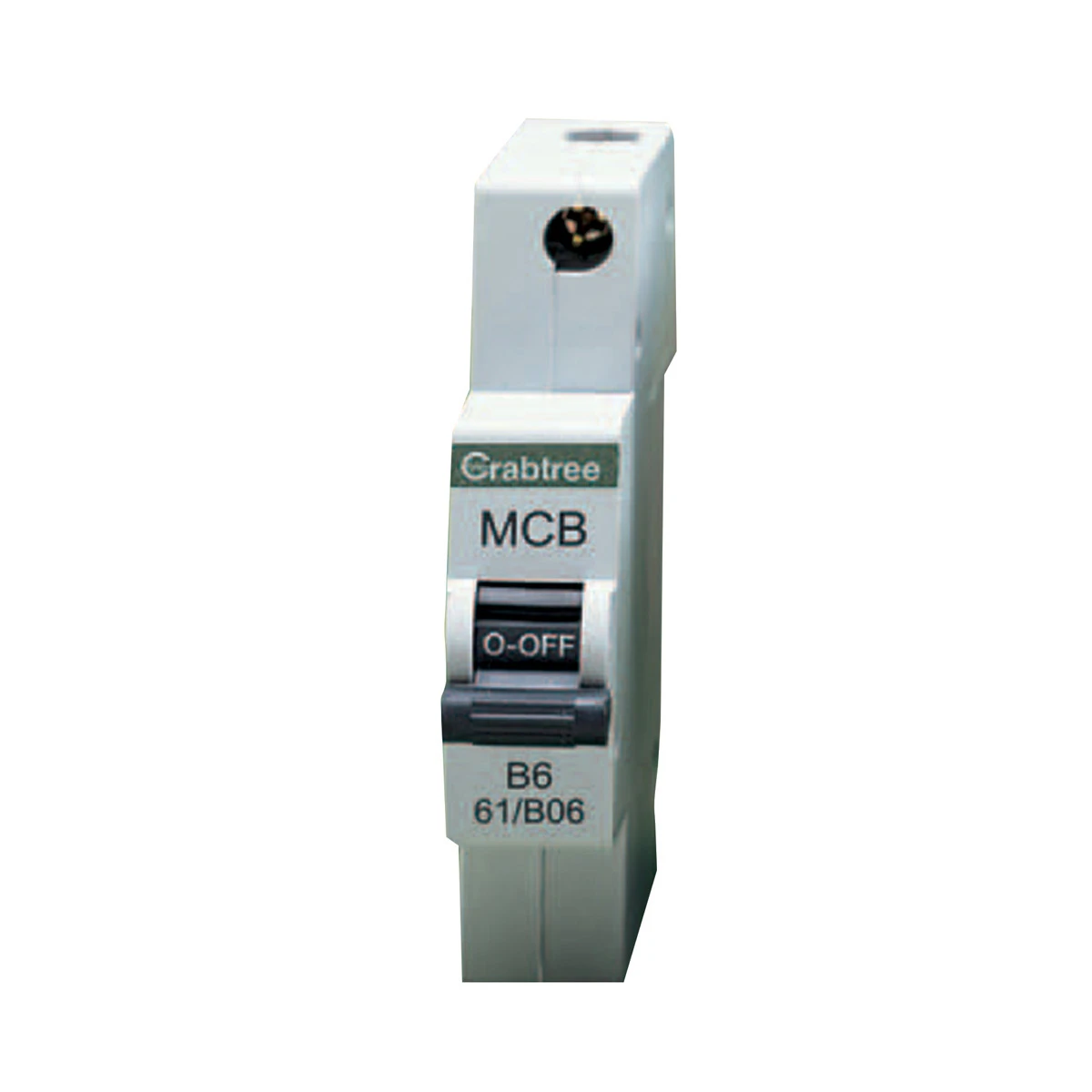

Crabtree 6A SP Type B 6kA MCB
£4.70 Incl. VAT
This Miniature Circuit Breaker, is a thermal-magnetic current limiting type, having a compact construction which has been achieved by not only minimising the number of parts but also the number of welded joints and connections. The MCB has an easy to oper · · · Single pole MCB, 6A B curve · · Energy limiting Class 3 · · Plug in · · 6A rated · · 6ka Breaking capacity · · single pole · · 18mm wide · · Type B classification 3-5ln
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 6 A Rated voltage 230 V Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated insulation voltage Ui 400 V Over voltage category 3 Current limiting class 3 Number of protected poles 1 Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
