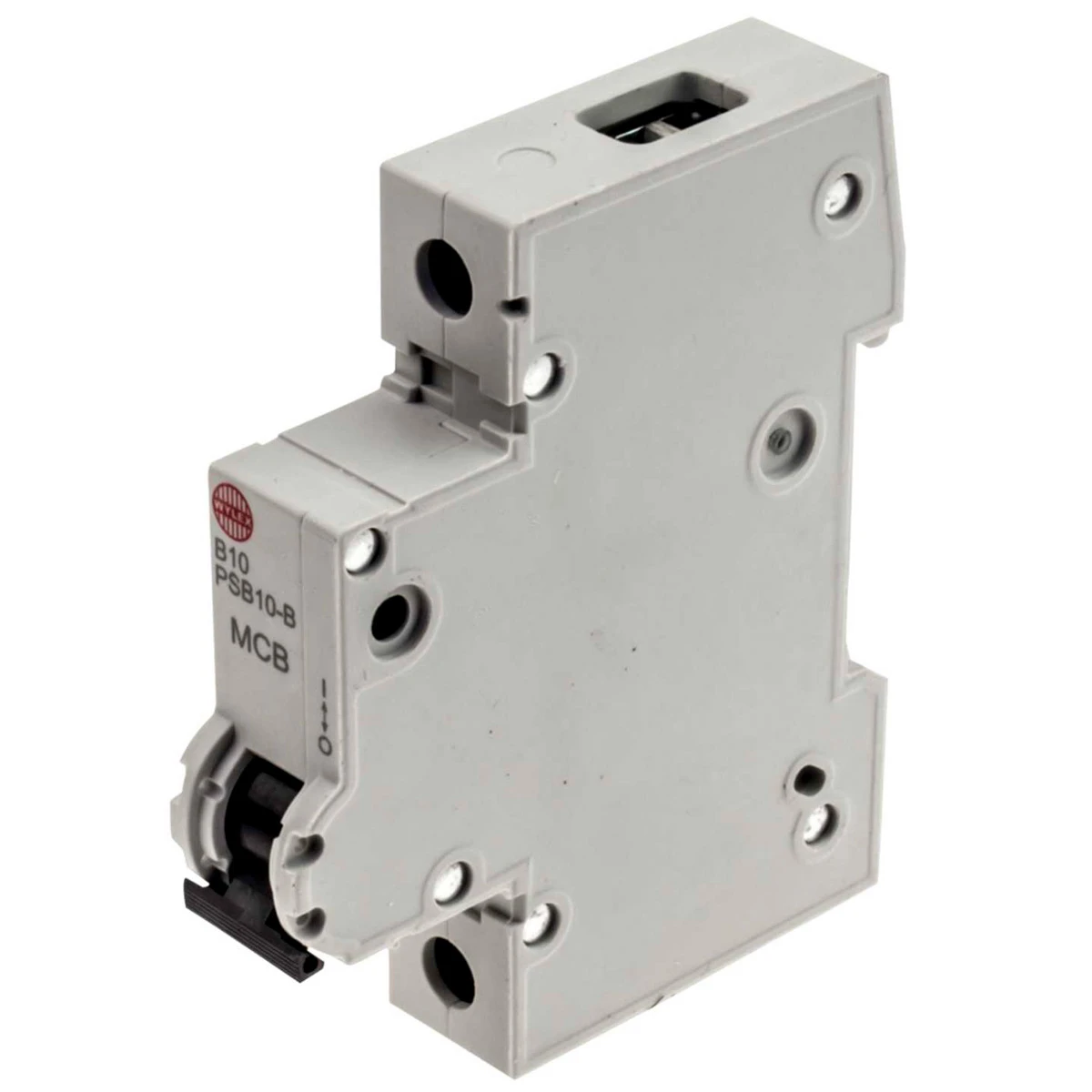

Wylex MCB B10 10kA 1P (1MW)
Wylex MCB B10 10kA 1P (1MW)

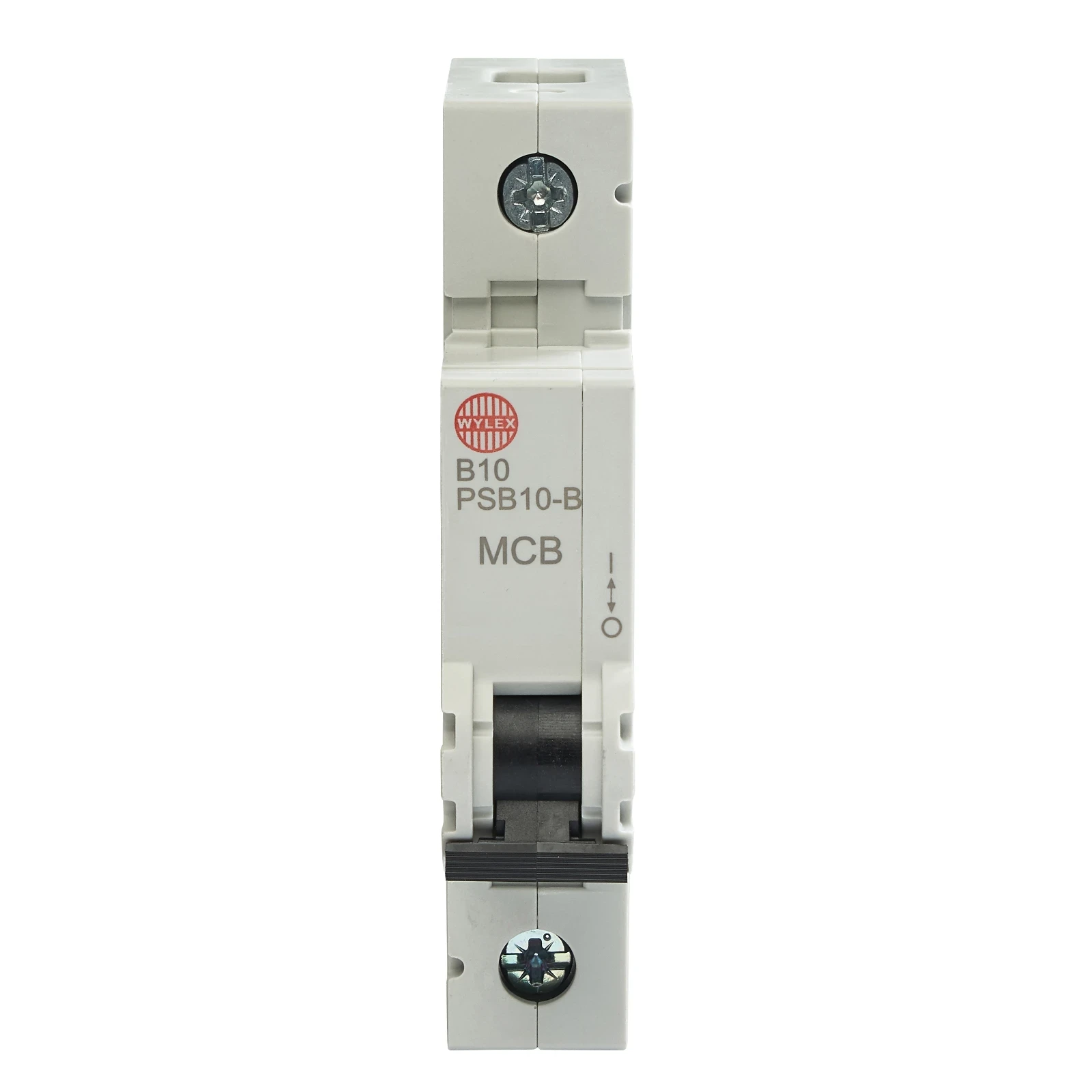

Wylex MCB B10 10kA 1P (1MW) - Image 2
Wylex MCB B10 10kA 1P (1MW) - Image 3

Wylex MCB B10 10kA 1P (1MW)

£8.38 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level · · · B curve trip characteristic (3-5In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Single pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · Suitable for use within NH Distribution Board

32 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB10-B Categories: , , Brand: Part Number: 2500040759

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Tripping characteristic (type/curve) B Rated voltage 230 V Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Concurrently switching N-neutral No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Width in number of modular spacings 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
