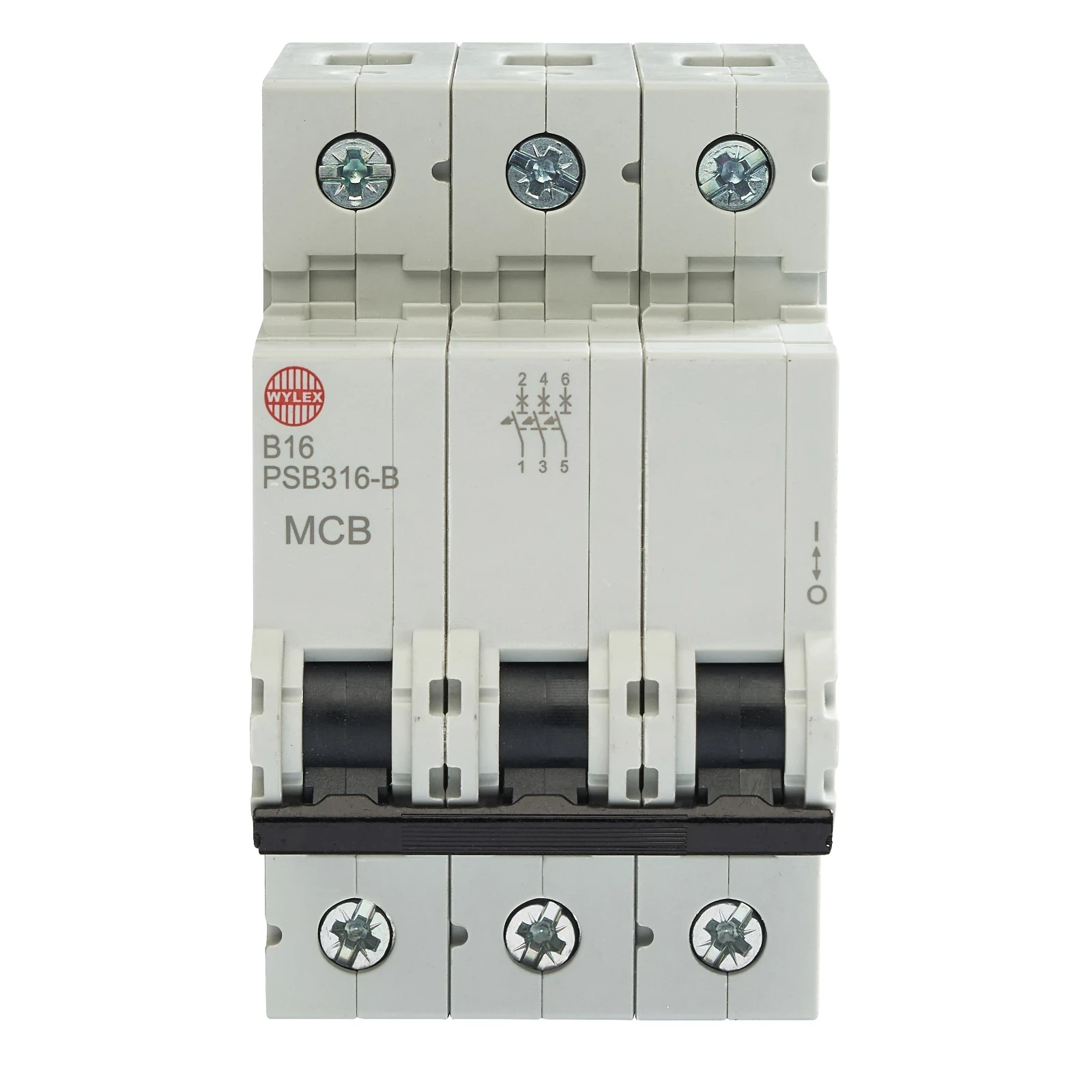

Wylex B16 10kA 3P MCB (3MW)
Wylex B16 10kA 3P MCB (3MW)
Wylex B16 10kA 3P MCB (3MW) - Image 2
Wylex B16 10kA 3P MCB (3MW) - Image 3

Wylex B16 10kA 3P MCB (3MW)

£40.02 Incl. VAT

The Wylex range of NH distribution Boards is designed to cater for a variety of industrial and commercial applications. The range of boards is complemented by a wide variety of incoming options including direct connection, switch disconnector and RCD, out · · · B curve trip characteristic (3-5In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · Suitable for use within NH Distribution Board · · Voltage Rating: 230 – 400V AC

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB316-B Categories: , , Brand: Product Code: 2500041523

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 16 A Number of poles (total) 3 Rated voltage 230 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Over voltage category 3 Number of protected poles 3 Width in number of modular spacings 3 Current limiting class 3 Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
