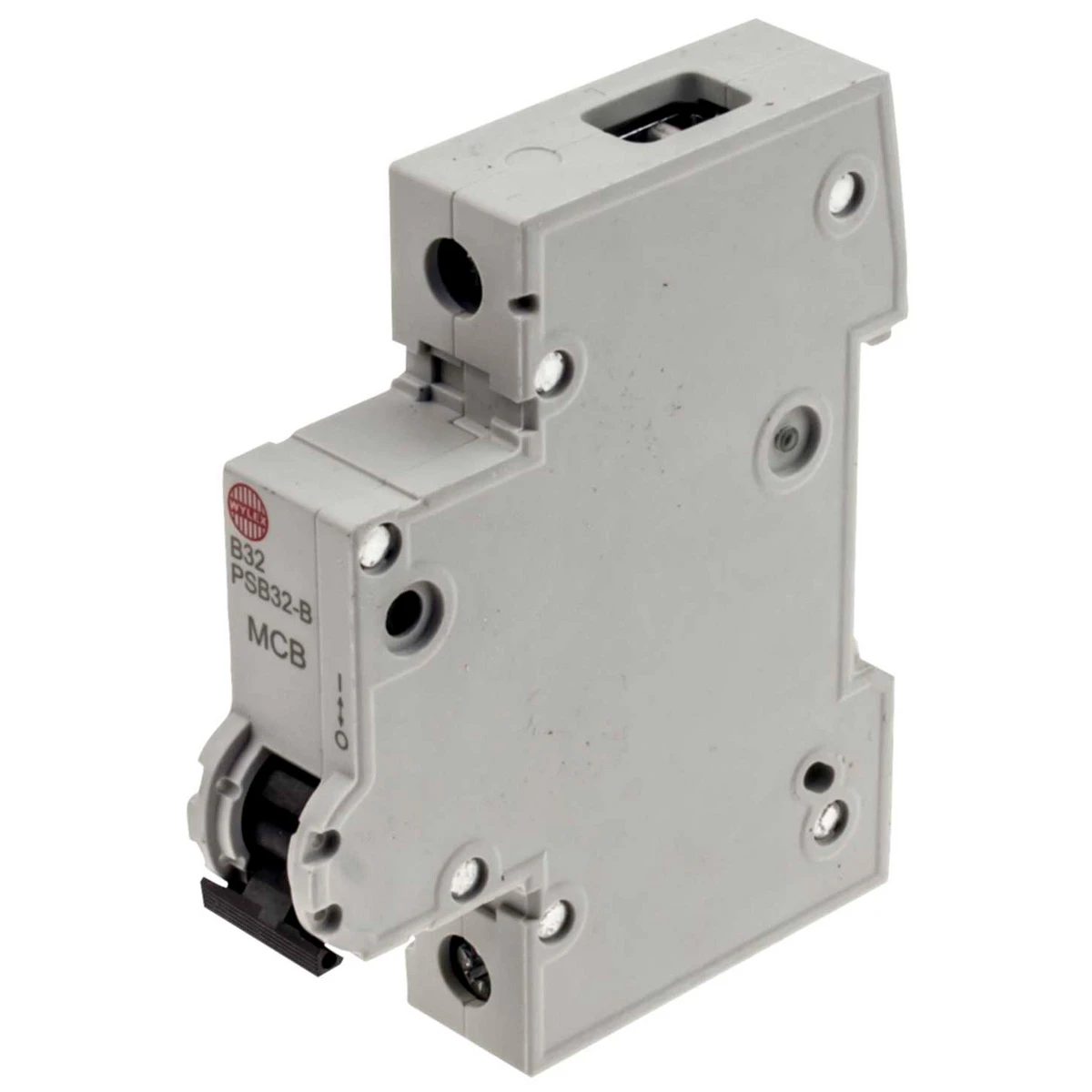

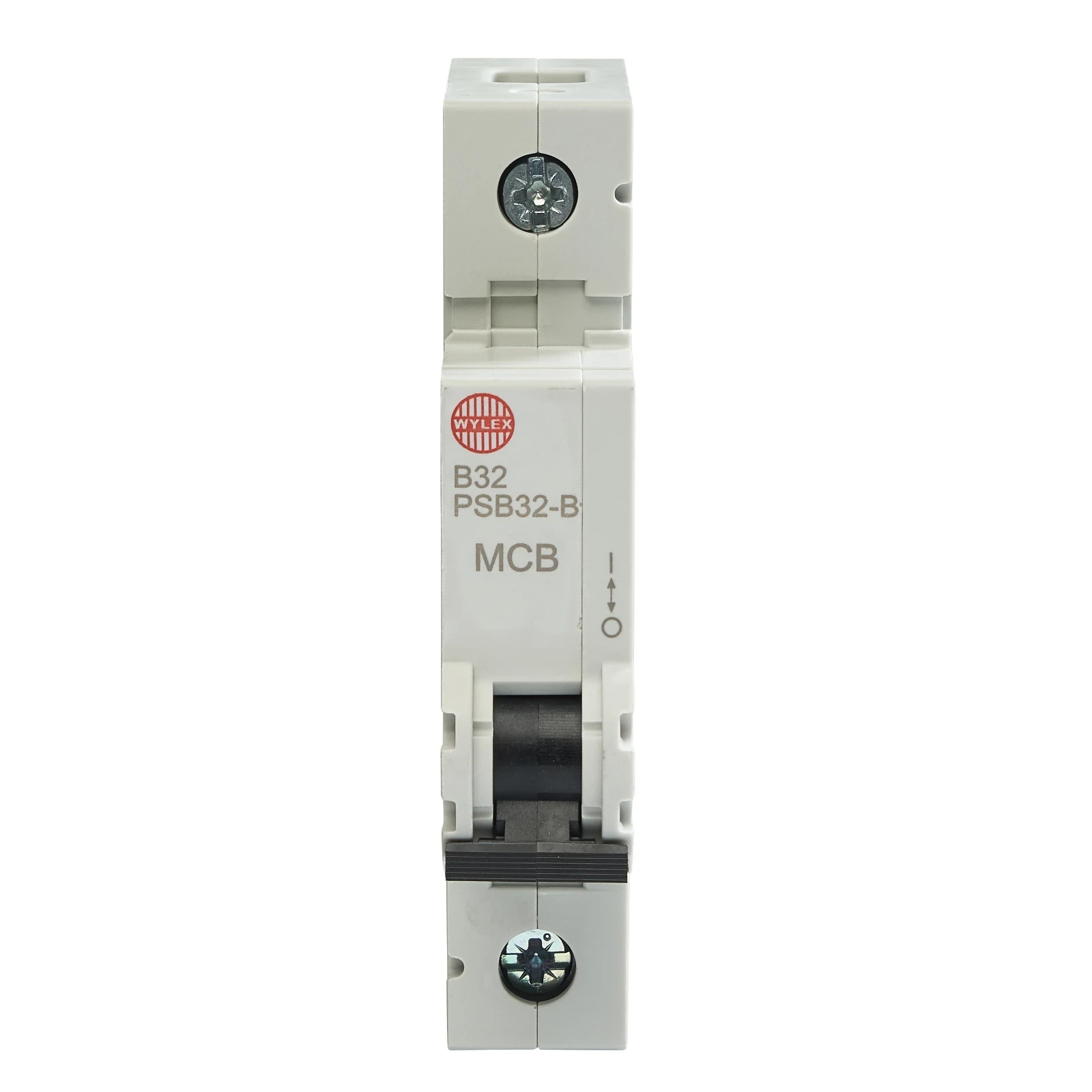

Wylex MCB B32 10kA 1P (1MW)
Wylex MCB B32 10kA 1P (1MW)
Wylex MCB B32 10kA 1P (1MW) - Image 2
Wylex MCB B32 10kA 1P (1MW) - Image 3

Wylex MCB B32 10kA 1P (1MW)

£8.38 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop. · · · B curve trip characteristic (3-5In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Triple pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · 30°C calibration temperature

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB32-B Categories: , , Brand: Part Number: 2500041028

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Rated current 32 A Number of protected poles 1 Frequency 50 – 50 Hz Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 1 Connectable conductor cross section multi-wired 0.75 – 25 mm² Additional equipment possible No Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
