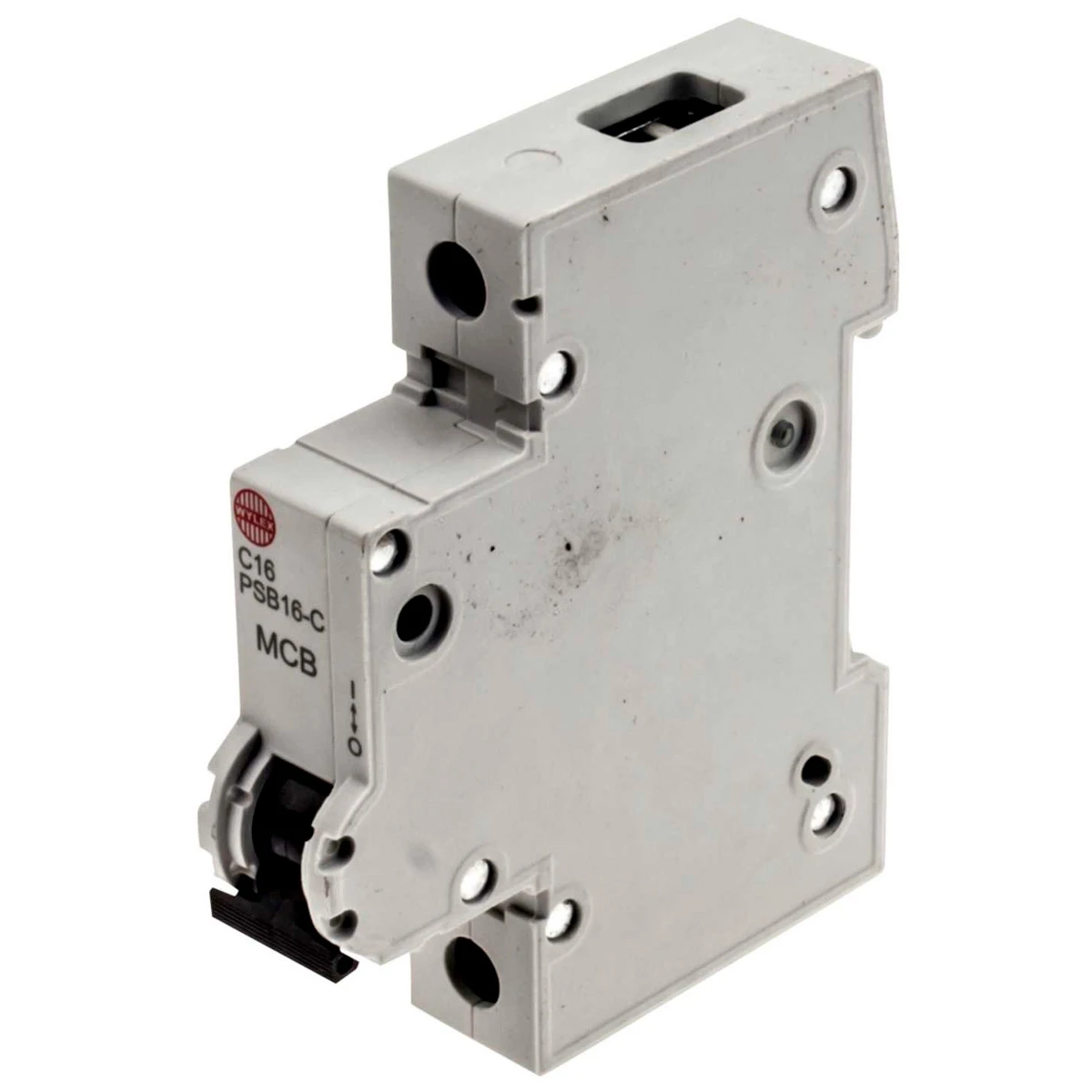

Wylex C16 10kA 1P MCB (1MW)
Wylex C16 10kA 1P MCB (1MW)
Wylex C16 10kA 1P MCB (1MW) - Image 2
Wylex C16 10kA 1P MCB (1MW) - Image 3

Wylex C16 10kA 1P MCB (1MW)

£9.19 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Single pole MCB · · DIN rail mounting · · Energy limiting Class 3 · · Suitable for use within NH Distribution Board

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB16-C Categories: , , Brand: Product Code: 2500041023

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 16 A Rated voltage 230 V Rated insulation voltage Ui 400 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Width in number of modular spacings 1 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
