Wylex MCB C6 16kA 1P (1 Module Width)
Wylex MCB C6 16kA 1P (1 Module Width)
Wylex MCB C6 16kA 1P (1 Module Width) - Image 2
Wylex MCB C6 16kA 1P (1 Module Width) - Image 3

Wylex MCB C6 16kA 1P (1 Module Width)

£15.72 Incl. VAT

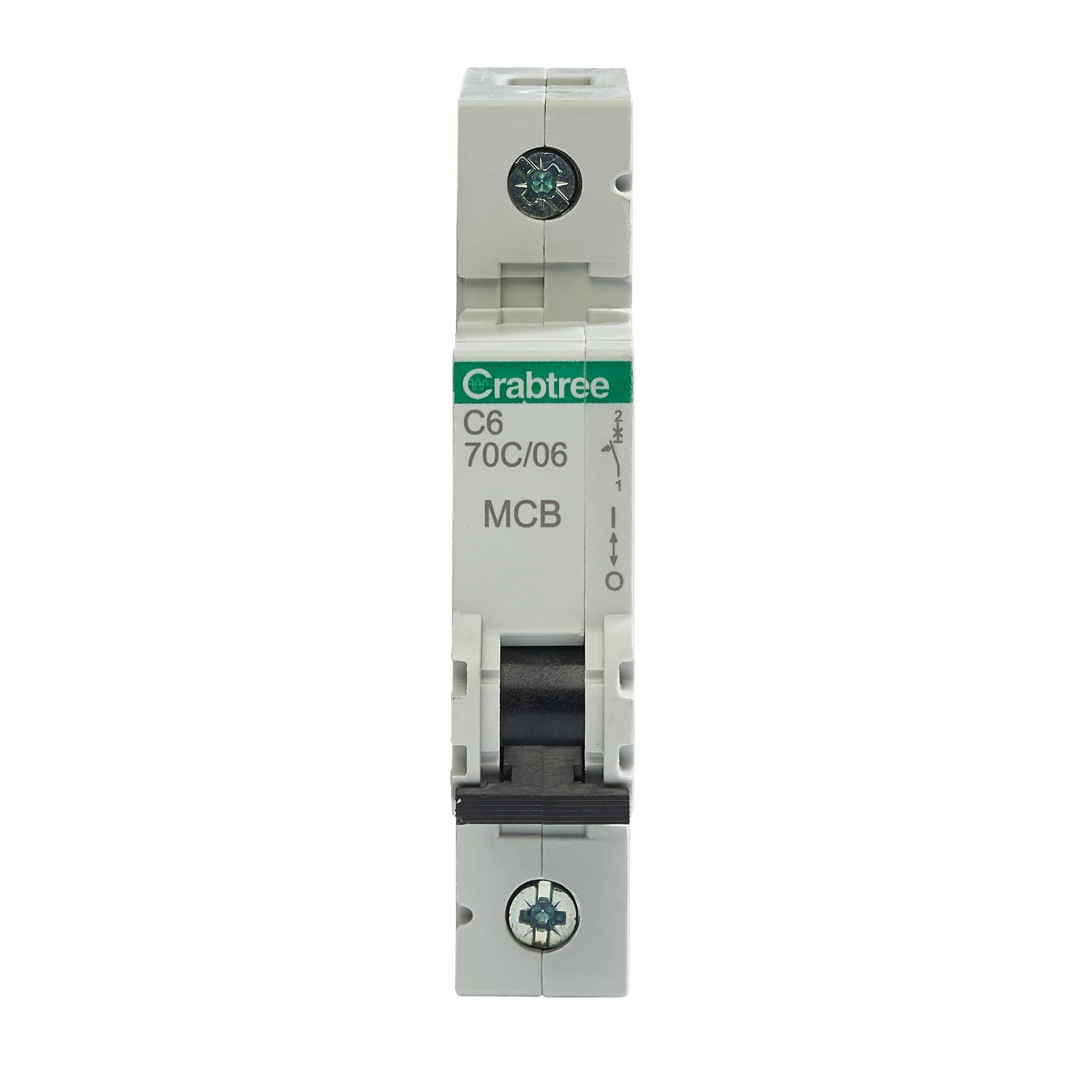

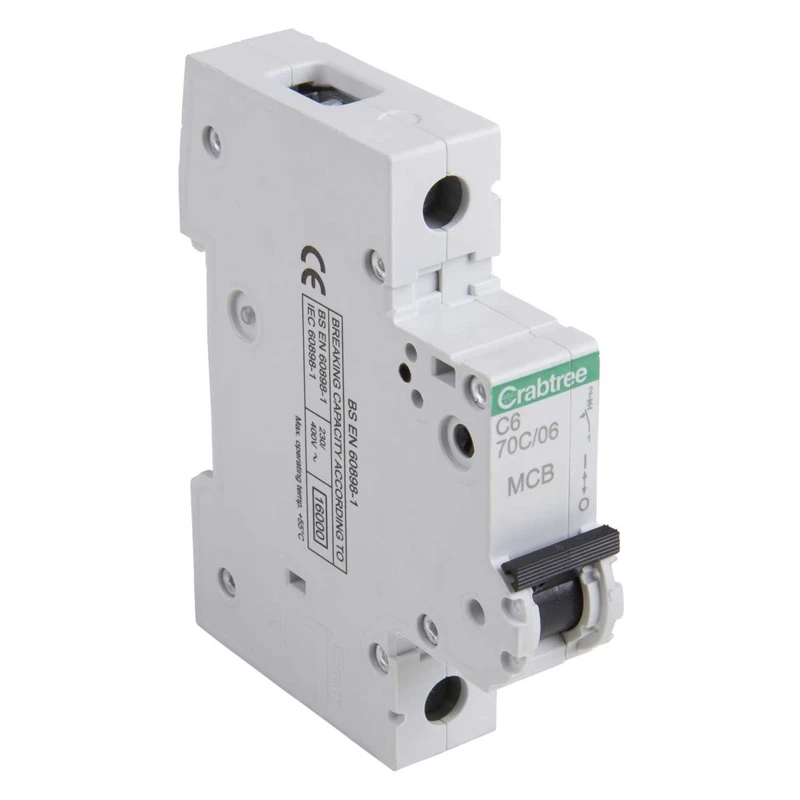

Crabtree Polestar Compact Miniature Circuit Breaker with terminal capacity of 5mm cable and 18mm modular width. Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents s · · · C curve trip characteristic (5-10In) · · 16kA to BS EN 60898-1 (15kA to BS EN 60947-2) · · Single pole MCB · · Compliant with BS EN 60898-1 · · Energy limiting Class 3 · · single pole · · Terminal capacity up to 35mm cable · · Short circuit duty rating

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 70C/06 Categories: , , Brand: Part Number: 2500477583

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Tripping characteristic (type/curve) C Number of poles (total) 1 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 16 kA Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Rated voltage 230 V Number of protected poles 1 Rated current 6 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V 16 kA Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
