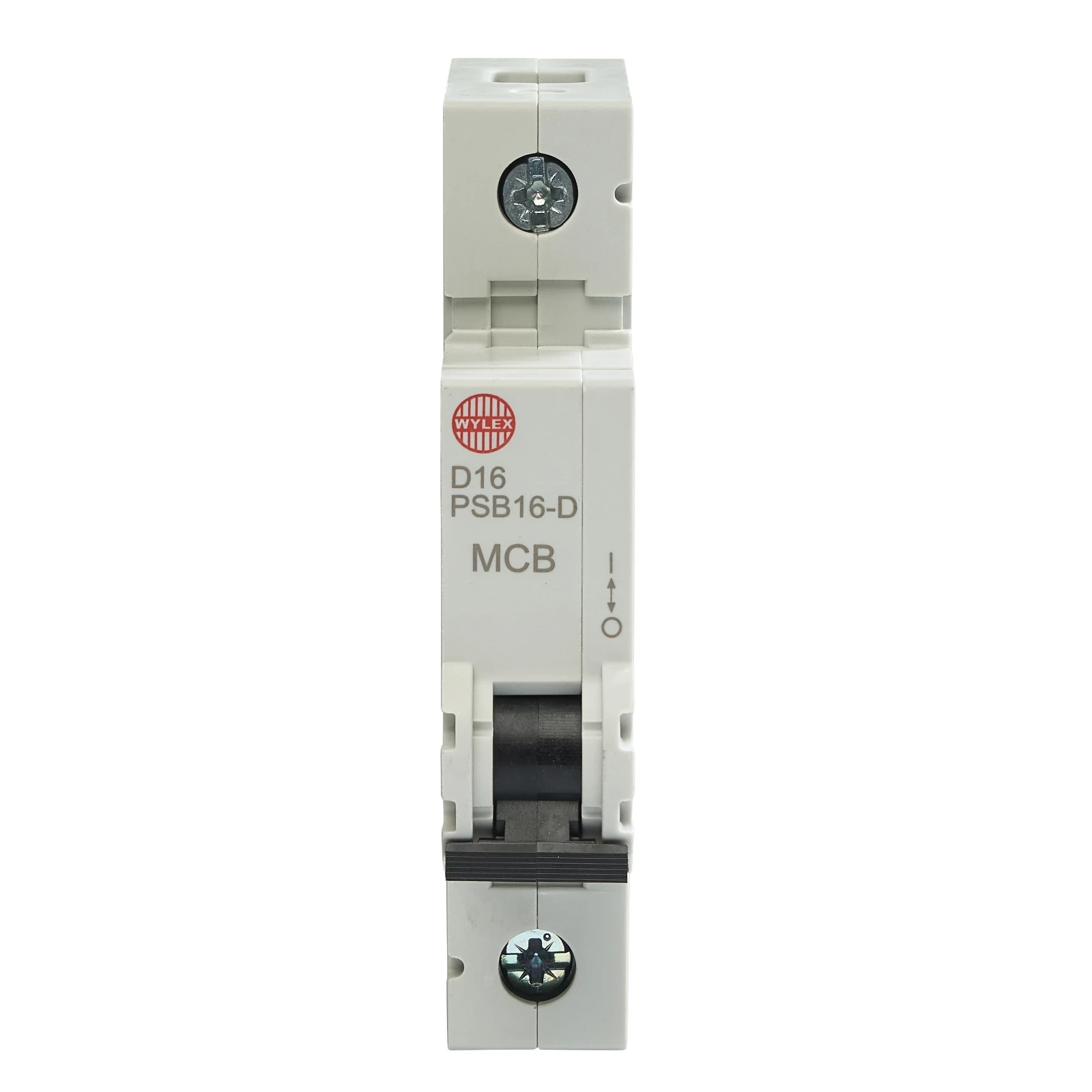

Wylex MCB D16 10kA 1P (1MW)
£8.72 Incl. VAT

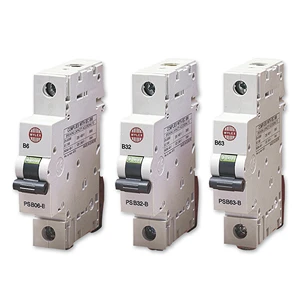

The Wylex range of NH distribution Boards is designed to cater for a variety of industrial and commercial applications. The wide range of boards is complemented by an extensive choice of incoming Devices including direct connection, switch disconnector and RCD, outgoing devices include a broad selection of MCBs and RCBOs. This comprehensive collection of circuit protection and distribution products allows the contractor to select the most economical and electrically appropriate solutions. · · · D curve trip characteristic (10-20In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Single pole MCB · · Number of Poles: Single Pole · · Energy limiting Class 3 · · Trip Class: Type D · · Voltage Rating: 230 – 400V AC
15 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 16 A Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) D Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Width in number of modular spacings 1 Current limiting class 3 Rated voltage 230 V Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
