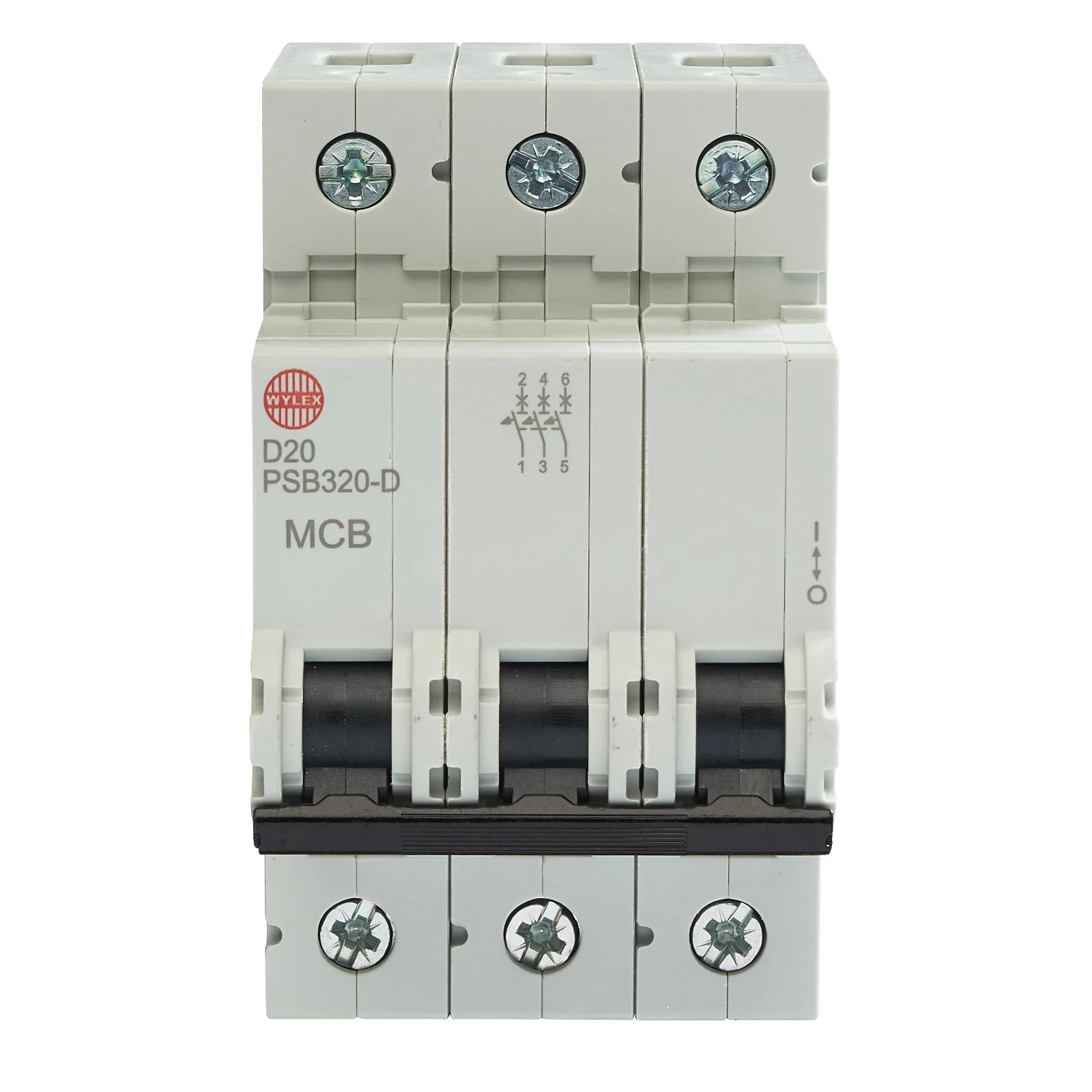

Wylex MCB D20 10kA 3P (3MW)
Wylex MCB D20 10kA 3P (3MW)
Wylex MCB D20 10kA 3P (3MW) - Image 2
Wylex MCB D20 10kA 3P (3MW) - Image 3

Wylex MCB D20 10kA 3P (3MW)

£37.36 Incl. VAT

The Wylex range of NH distribution Boards is designed to cater for a variety of industrial and commercial applications. The wide range of boards is complemented by an extensive choice of incoming Devices including direct connection, switch disconnector and RCD, outgoing devices include a broad selection of MCBs and RCBOs. This comprehensive collection of circuit protection and distribution products allows the contractor to select the most economical and electrically appropriate solutions. · · · D curve trip characteristic (10-20In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Number of Poles: Triple Pole · · Energy limiting Class 3 · · Trip Class: Type D · · Voltage Rating: 230 – 400V AC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB320-D Categories: , , Brand: Part Number: 2500041532

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Tripping characteristic (type/curve) D Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 400 V Current limiting class 3 Rated current 20 A Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Width in number of modular spacings 3 Rated voltage 230 V Number of protected poles 3 Number of poles (total) 3 Over voltage category 3 Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
