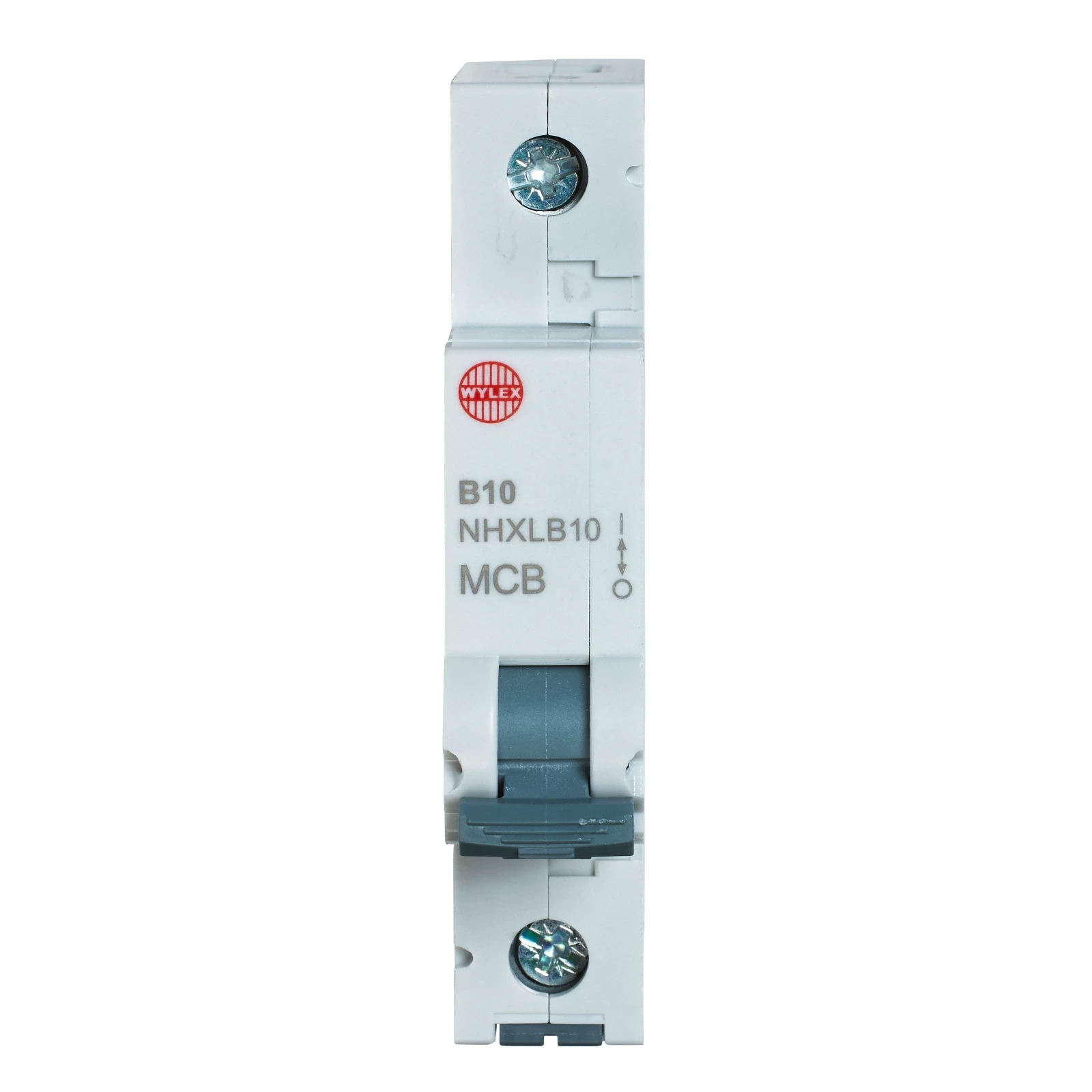

Wylex 10A SP Type B 6kA MCB
Wylex 10A SP Type B 6kA MCB

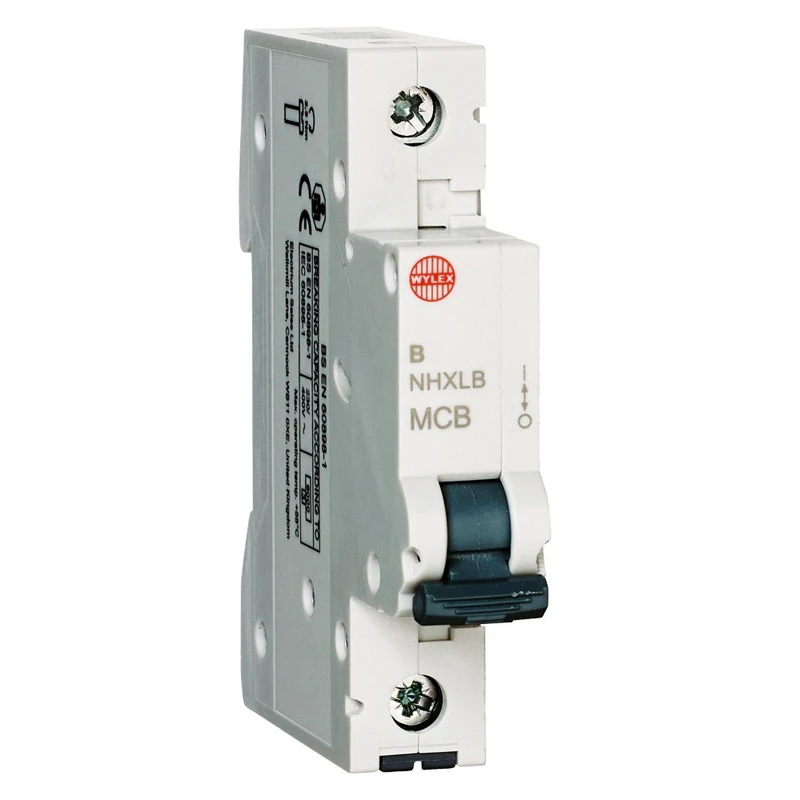

Wylex 10A SP Type B 6kA MCB - Image 2
Wylex 10A SP Type B 6kA MCB - Image 3

Wylex 10A SP Type B 6kA MCB

£5.33 Incl. VAT

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurre · · · Single pole MCB, 10A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Touch keys for the control of the main video door entry functions · · Wide angle colour camera · · Ingress protection rating of IP 54 and a mechanical protection rating of IK 10 · · Can be easily adapted to a two way system by purchasing an additional internal unit

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXLB10 Categories: , , Brand: Product Code: 2501076164

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated insulation voltage Ui 400 V Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Over voltage category 3 Rated voltage 230 V Width in number of modular spacings 1 Recess depth 73 mm Rated current 10 A Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
