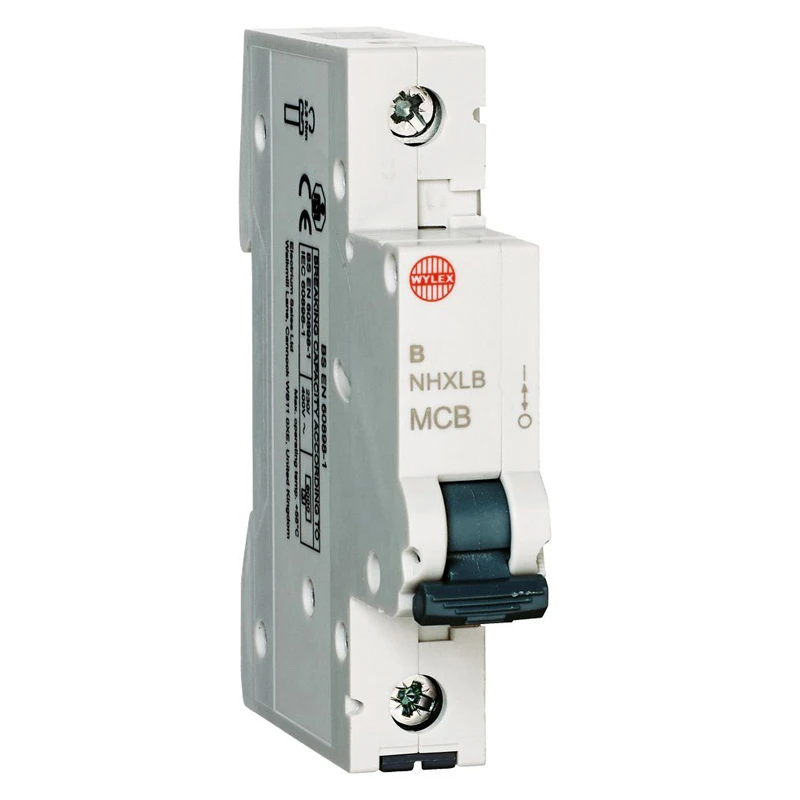

Wylex 16A SP Type B 6kA MCB
Wylex 16A SP Type B 6kA MCB

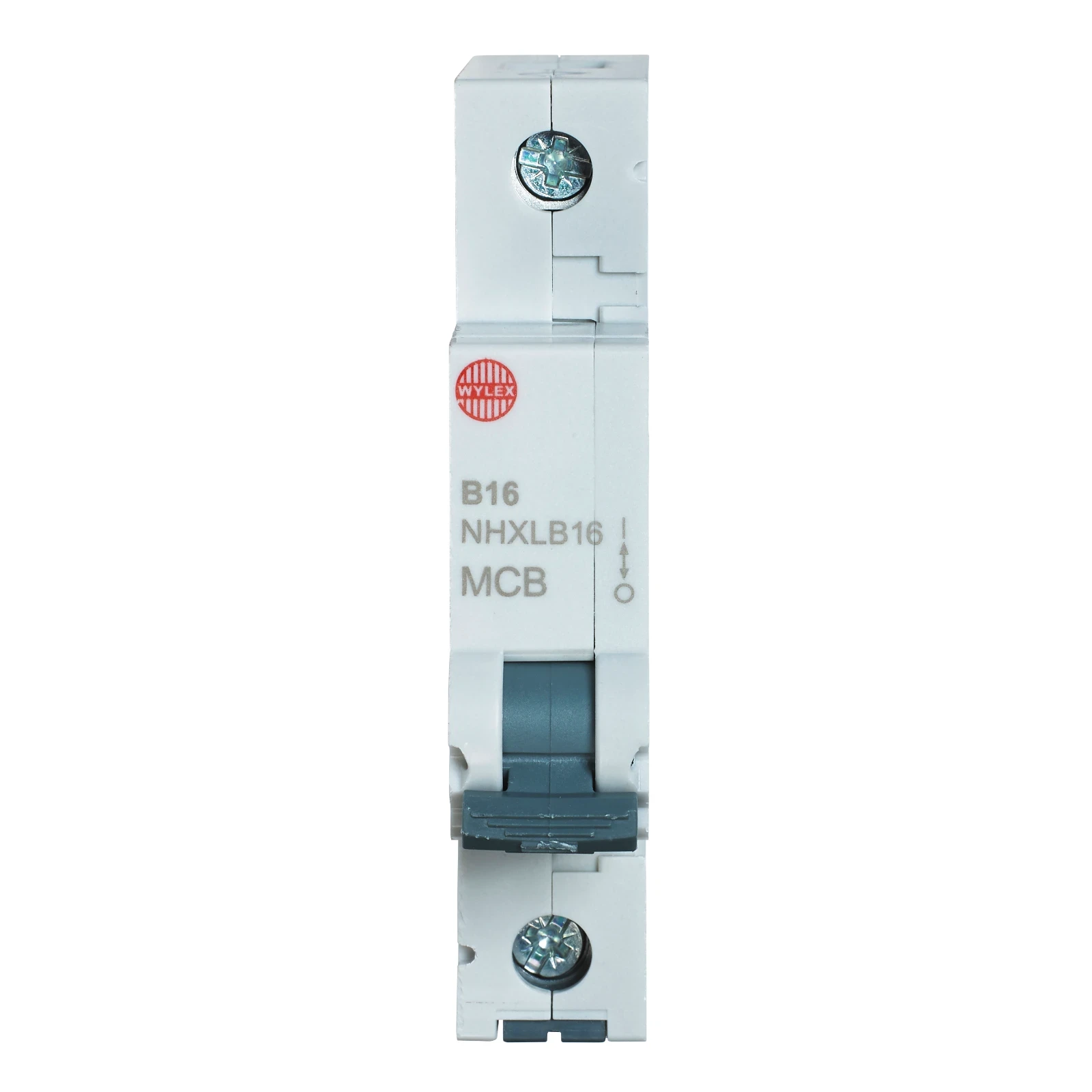

Wylex 16A SP Type B 6kA MCB - Image 2
Wylex 16A SP Type B 6kA MCB - Image 3

Wylex 16A SP Type B 6kA MCB

£5.33 Incl. VAT

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurrent’s due to both overload and fault currents. · · · Single pole MCB, 16A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXLB16 Categories: , , Brand: Product Code: 2501076166

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated voltage 230 V Rated current 16 A Number of poles (total) 1 Recess depth 73 mm Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Current limiting class 3 Number of protected poles 1 Width in number of modular spacings 1 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
