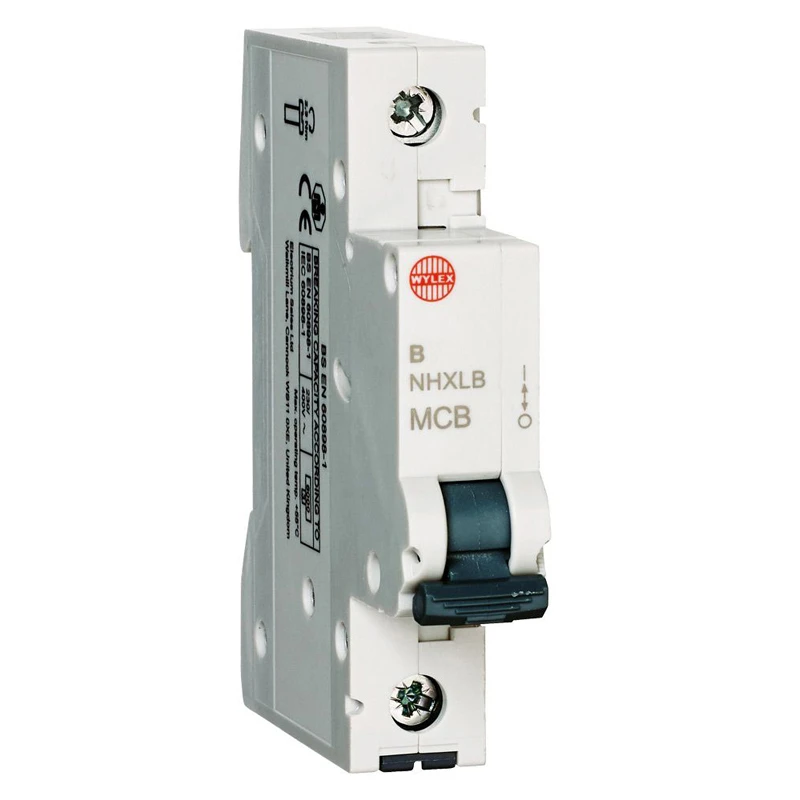

Wylex 20A SP Type B 6kA MCB
Wylex 20A SP Type B 6kA MCB

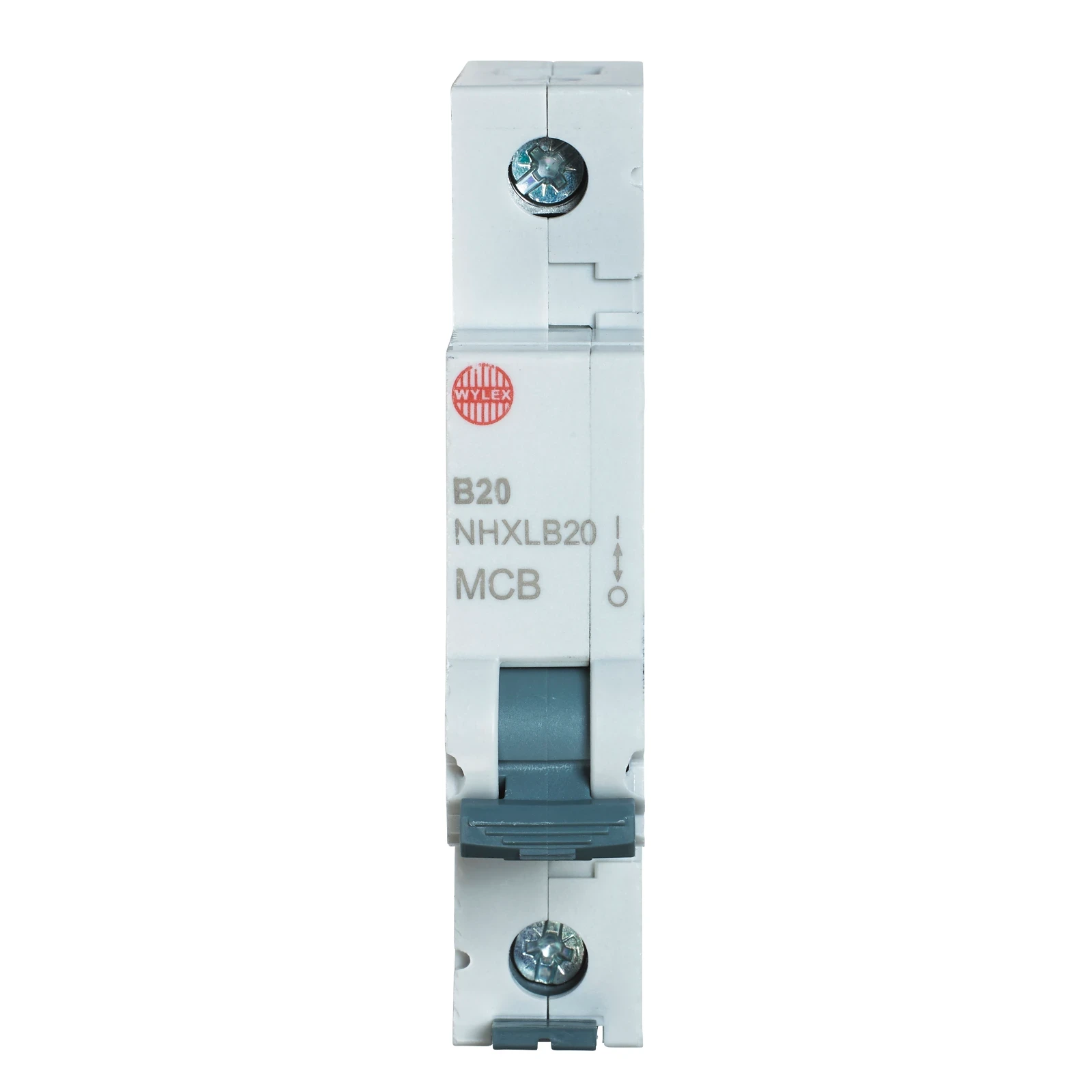

Wylex 20A SP Type B 6kA MCB - Image 2
Wylex 20A SP Type B 6kA MCB - Image 3

Wylex 20A SP Type B 6kA MCB

£5.58 Incl. VAT

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurre · · · Single pole MCB, 20A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXLB20 Categories: , , , , , Brand: Product Code: 2501076167

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 20 A Recess depth 73 mm Rated voltage 230 V Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Over voltage category 3 Current limiting class 3 Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 50 Hz Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
