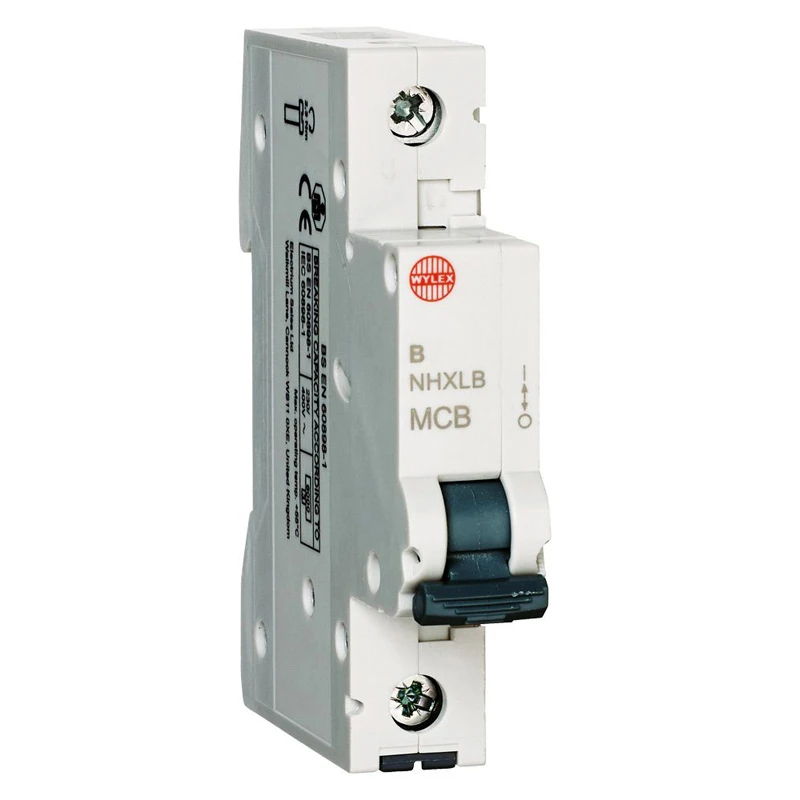

Wylex 32A SP Type B 6kA MCB
Wylex 32A SP Type B 6kA MCB

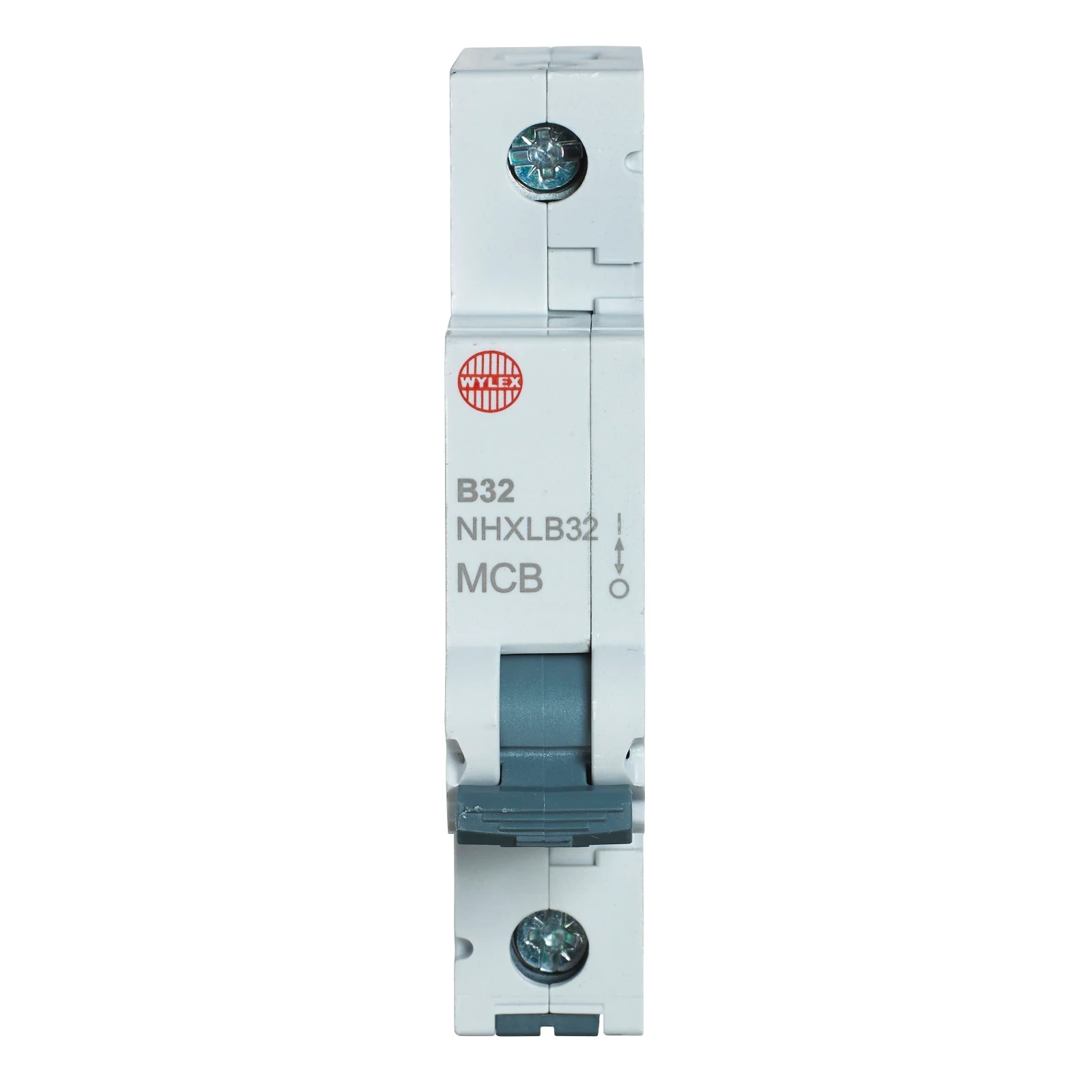

Wylex 32A SP Type B 6kA MCB - Image 2
Wylex 32A SP Type B 6kA MCB - Image 3

Wylex 32A SP Type B 6kA MCB

£5.33 Incl. VAT

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurrent’s due to both overload and fault currents. · · · Single pole MCB, 32A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXLB32 Categories: , , Brand: Product Code: 2501076169

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Current limiting class 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated current 32 A Recess depth 73 mm Frequency 50 – 50 Hz Rated voltage 230 V Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
