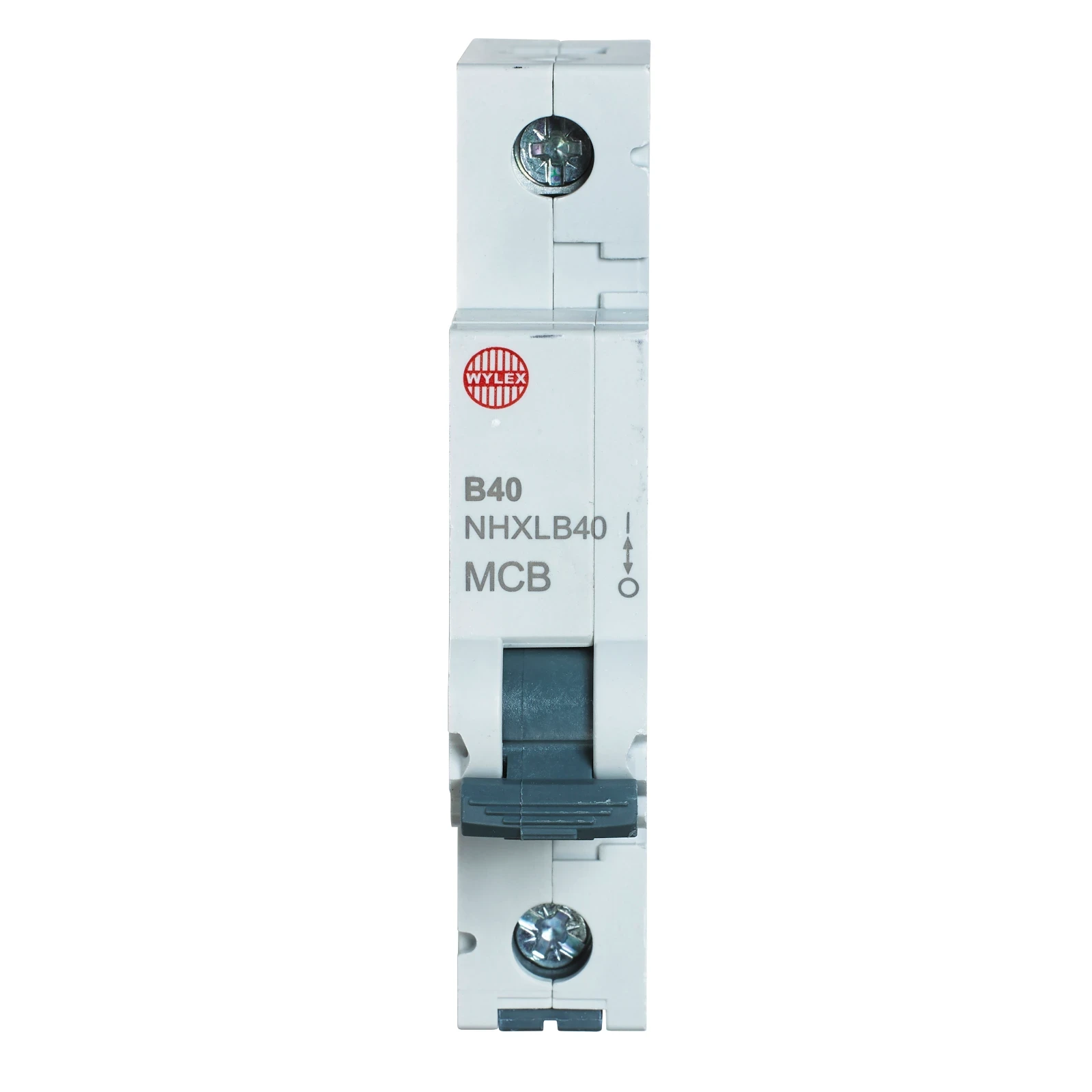

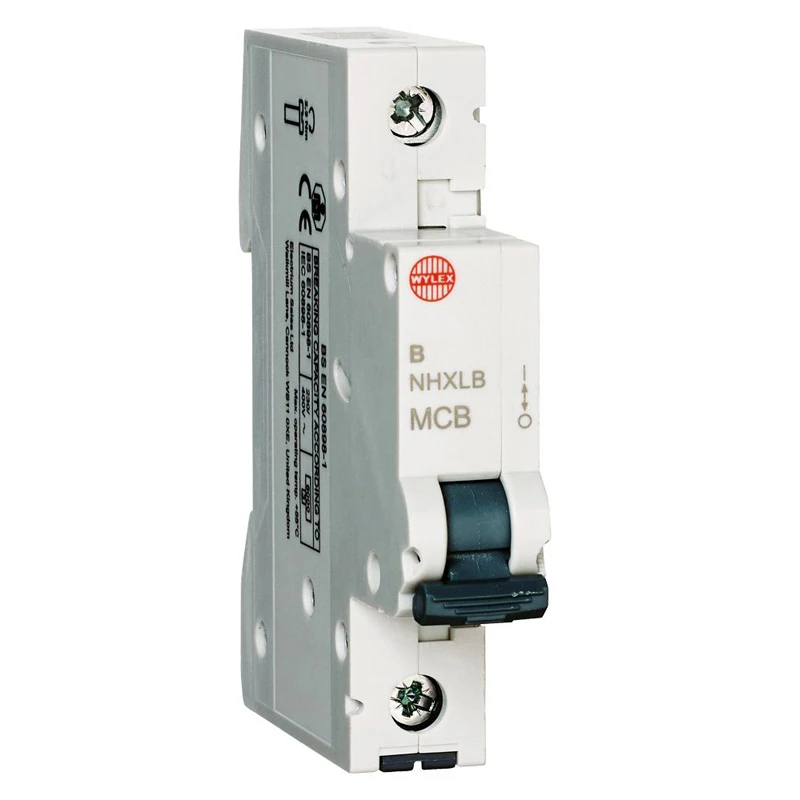

Wylex MCB SP B Curve 40A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) B Current limiting class 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Width in number of modular spacings 1 Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Recess depth 73 mm Rated current 40 A Rated voltage 230 V Over voltage category 3 Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
