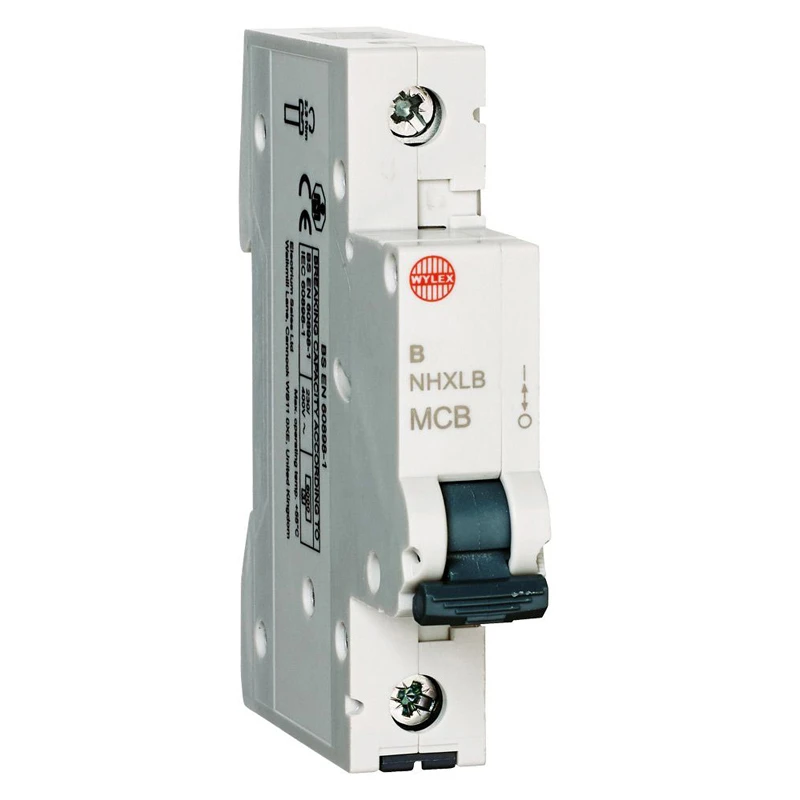

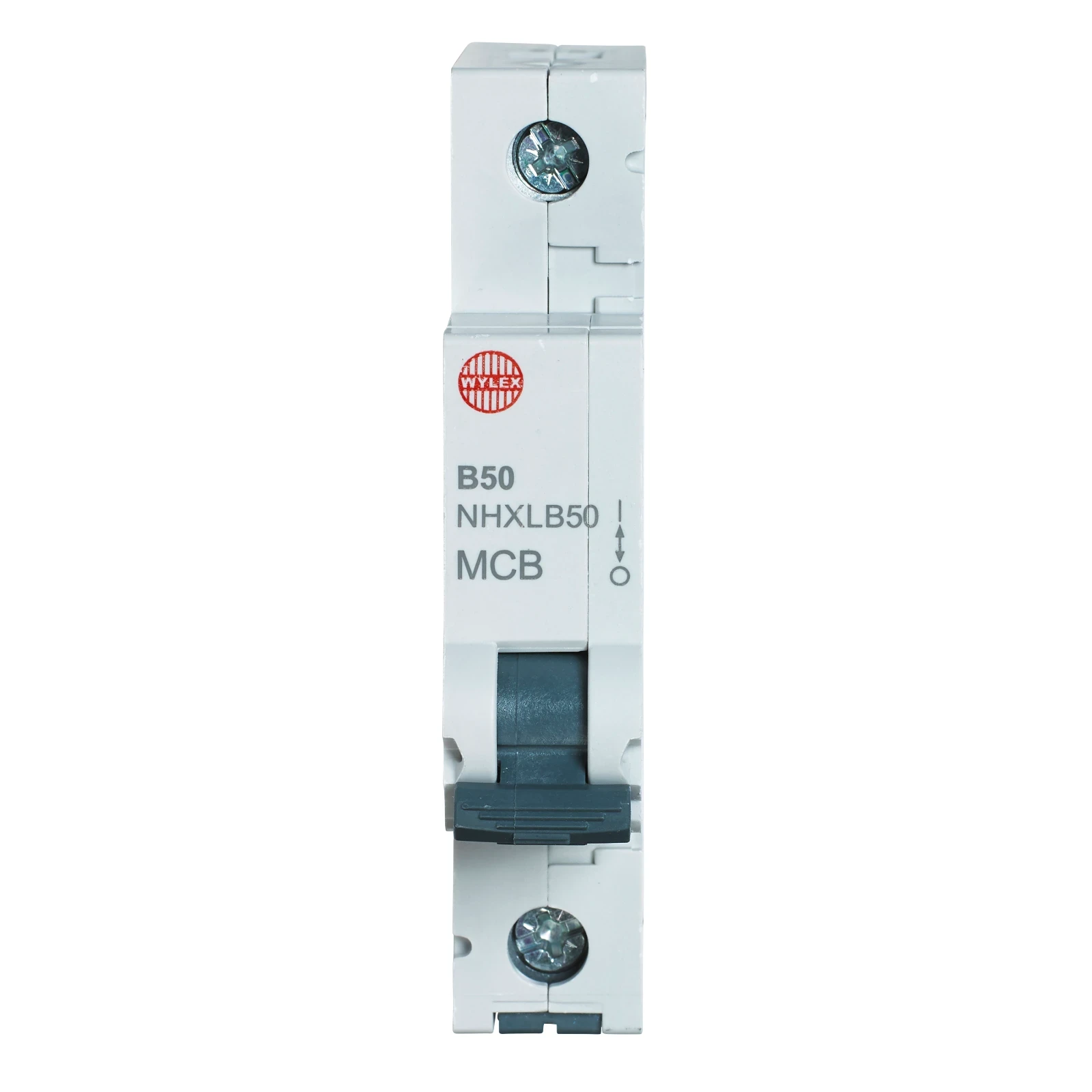

Wylex 50A SP Type B 6kA MCB
£5.33 Incl. VAT
Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurrent’s due to both overload and fault currents. · · · Single pole MCB, 50A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 50 A Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of protected poles 1 Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
