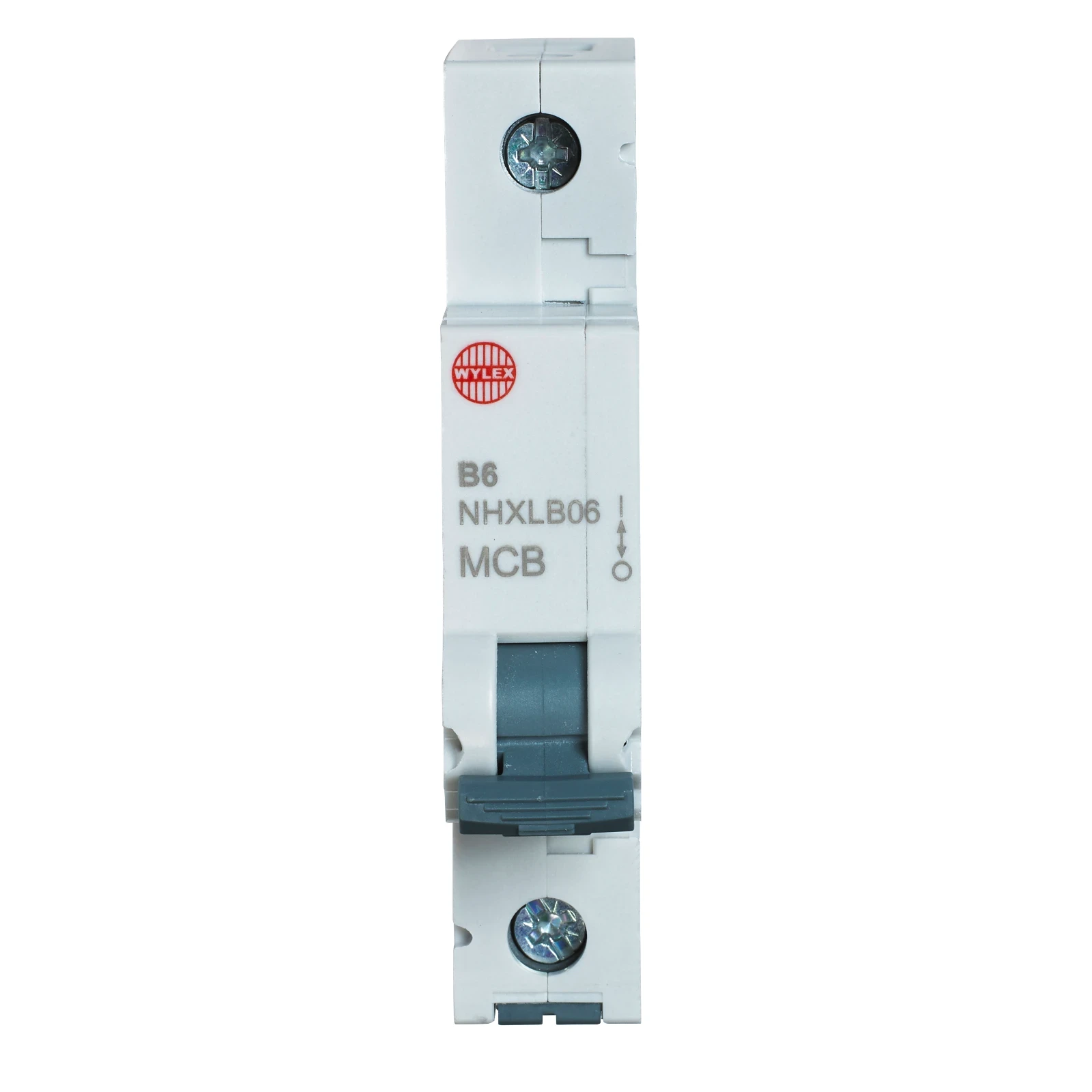

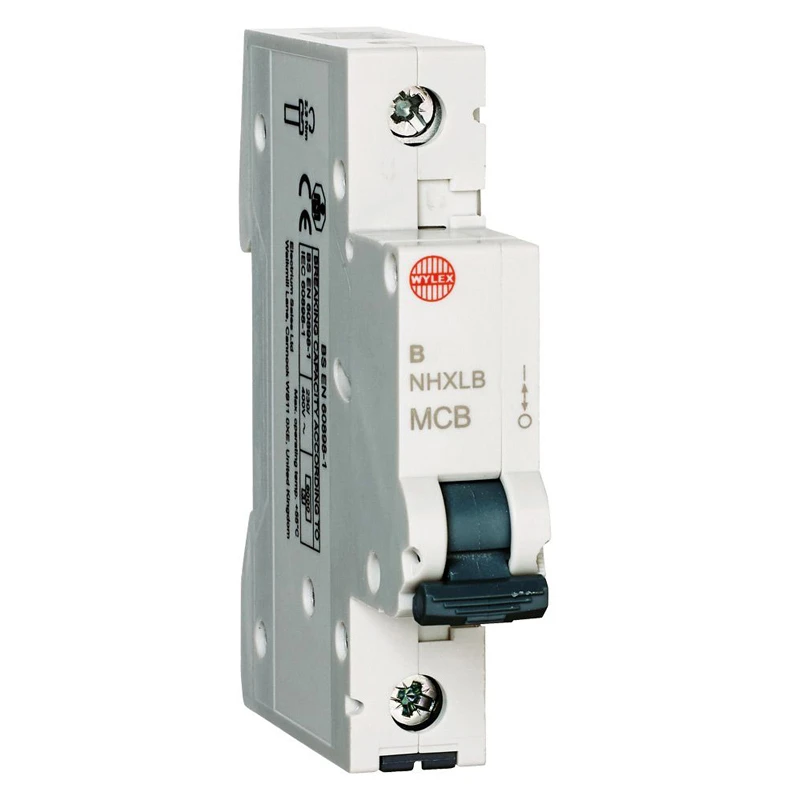

Wylex 6A SP Type B 6kA MCB
£5.33 Incl. VAT
Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurre · · · Single pole MCB, 6A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Ingress protection rating of IP 54 and a mechanical protection rating of IK 10 · · Can be easily adapted to a two way system by purchasing an additional internal unit · · Ambient Temp -25 – +45C · · IP20
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Current limiting class 3 Rated current 6 A Recess depth 73 mm Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
