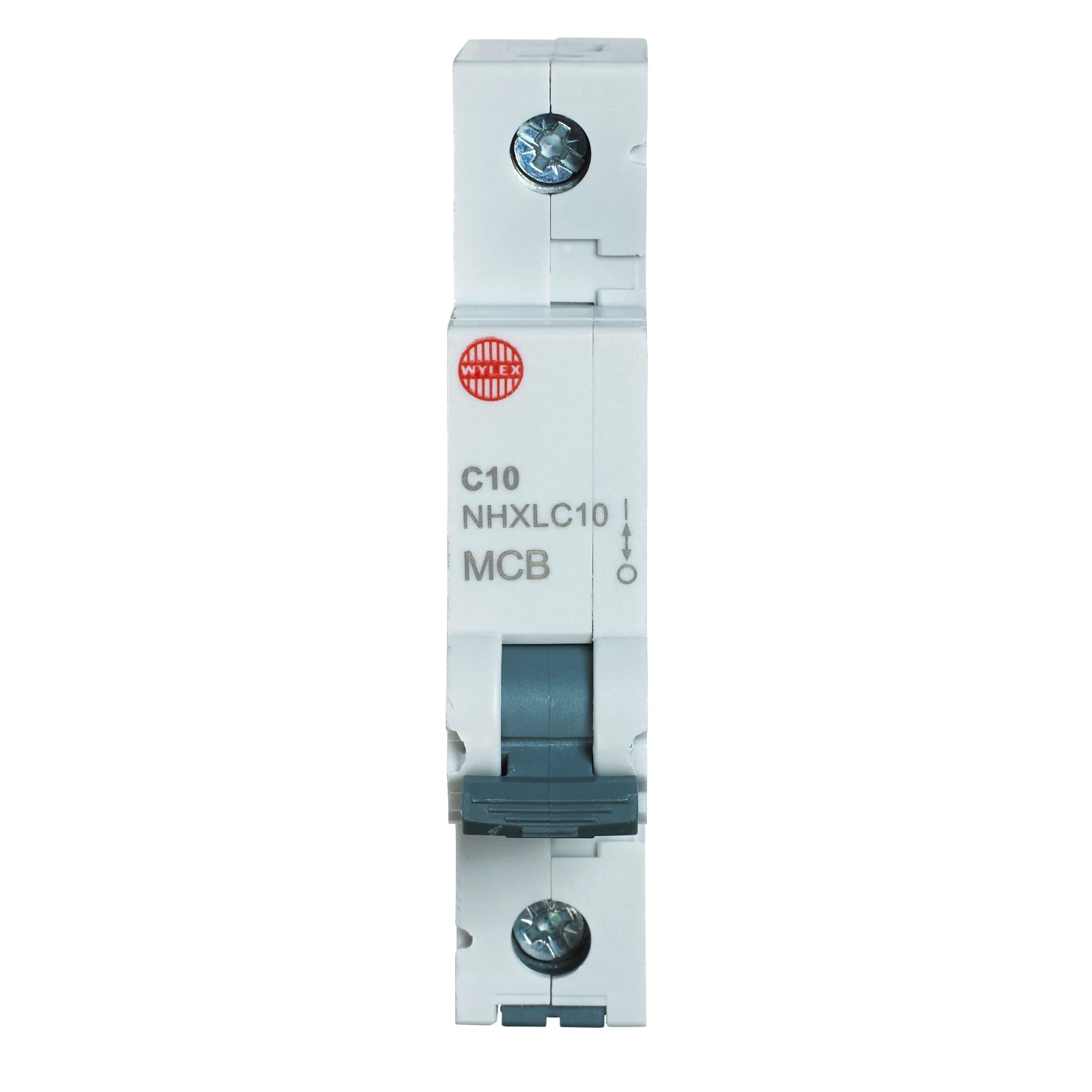

Wylex 10A SP Type C 6kA MCB
Wylex 10A SP Type C 6kA MCB
Wylex 10A SP Type C 6kA MCB - Image 2
Wylex 10A SP Type C 6kA MCB - Image 3

Wylex 10A SP Type C 6kA MCB

£5.33 Incl. VAT

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurre · · · Single pole MCB, 10A C curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units · · Suitable for use within NM/NMX Distribution Boards · · BS EN 60898-1

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXLC10 Categories: , , Brand: Product Code: 2501076174

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 10 A Rated voltage 230 V Recess depth 73 mm Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Number of protected poles 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Frequency 50 – 50 Hz Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
