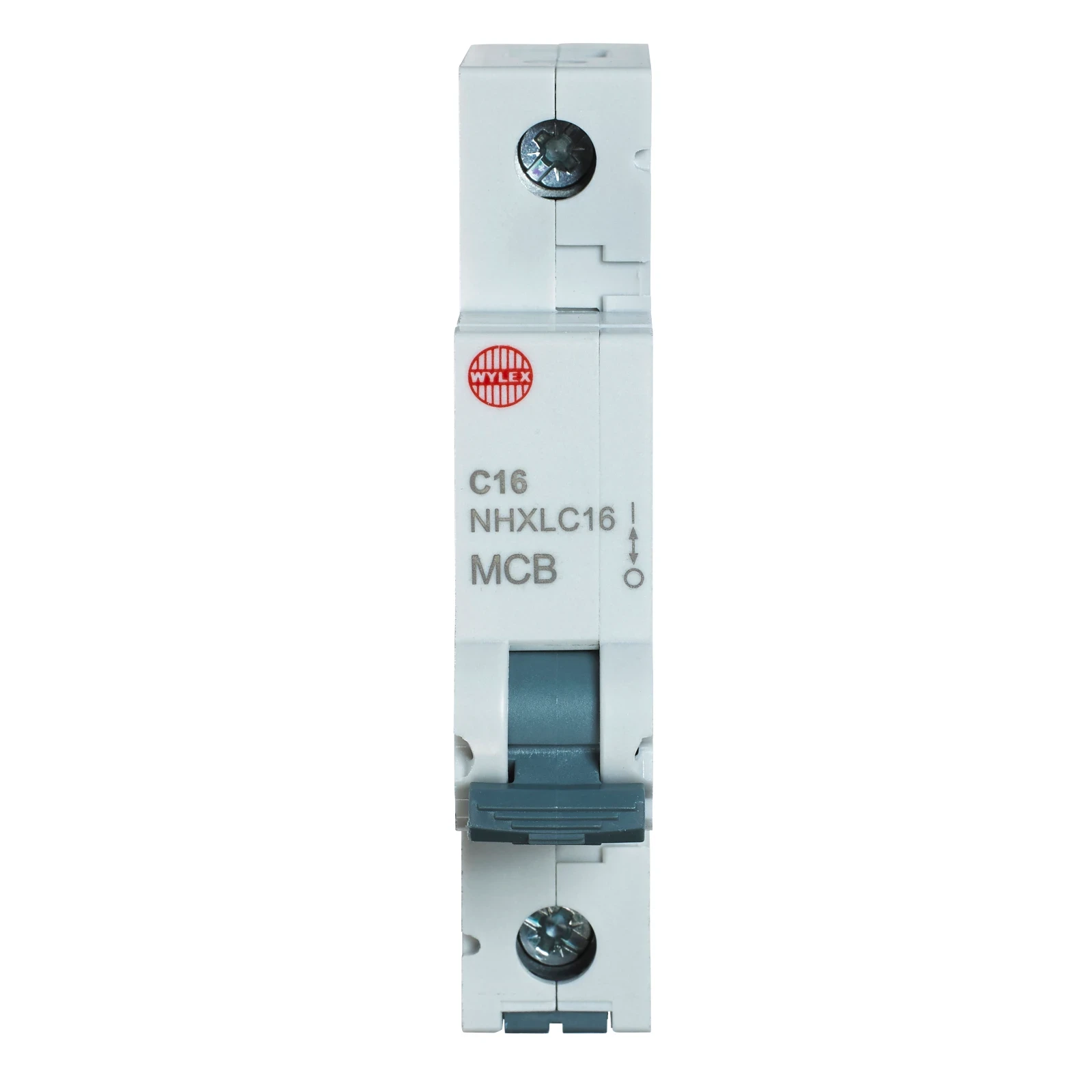

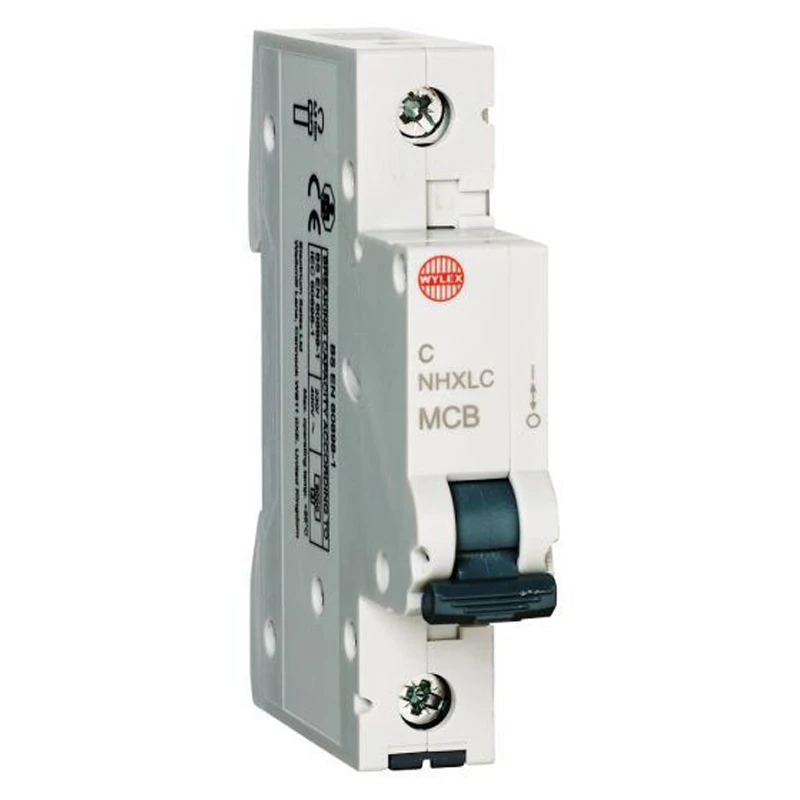

Wylex 16A SP Type C 6kA MCB
£5.33 Incl. VAT
Wylex NHXL Miniature Circuit Breaker is a single pole type-C curve for consumer unit. It is complied with BS EN 60898-1 certification, has any mounting position and the influence of surrounding temperature is maximum 95% humidity. · · · Single pole MCB, 16A C curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of protected poles 1 Current limiting class 3 Number of poles (total) 1 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated current 16 A Rated voltage 230 V Frequency 50 – 50 Hz Recess depth 73 mm Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
