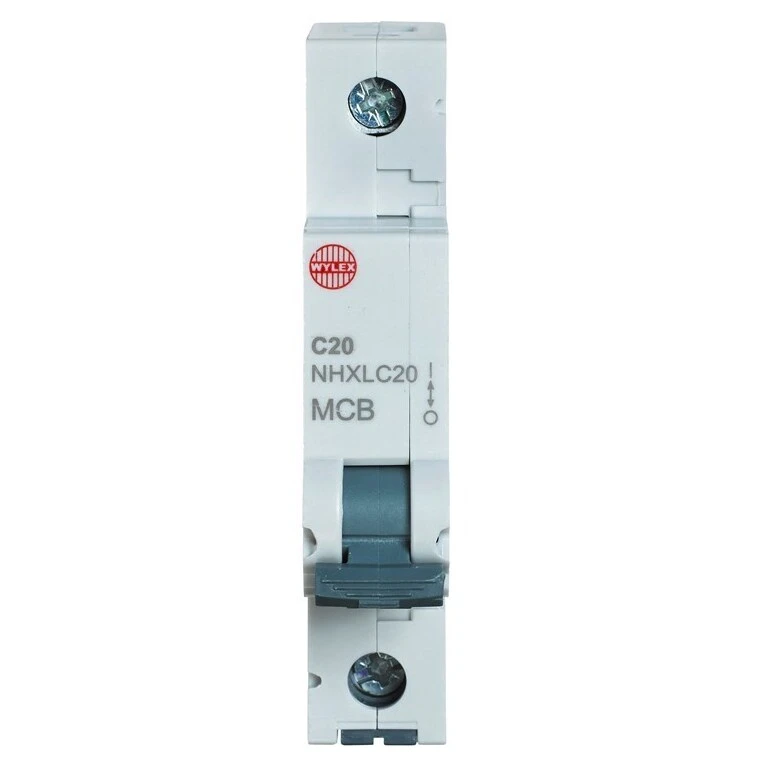

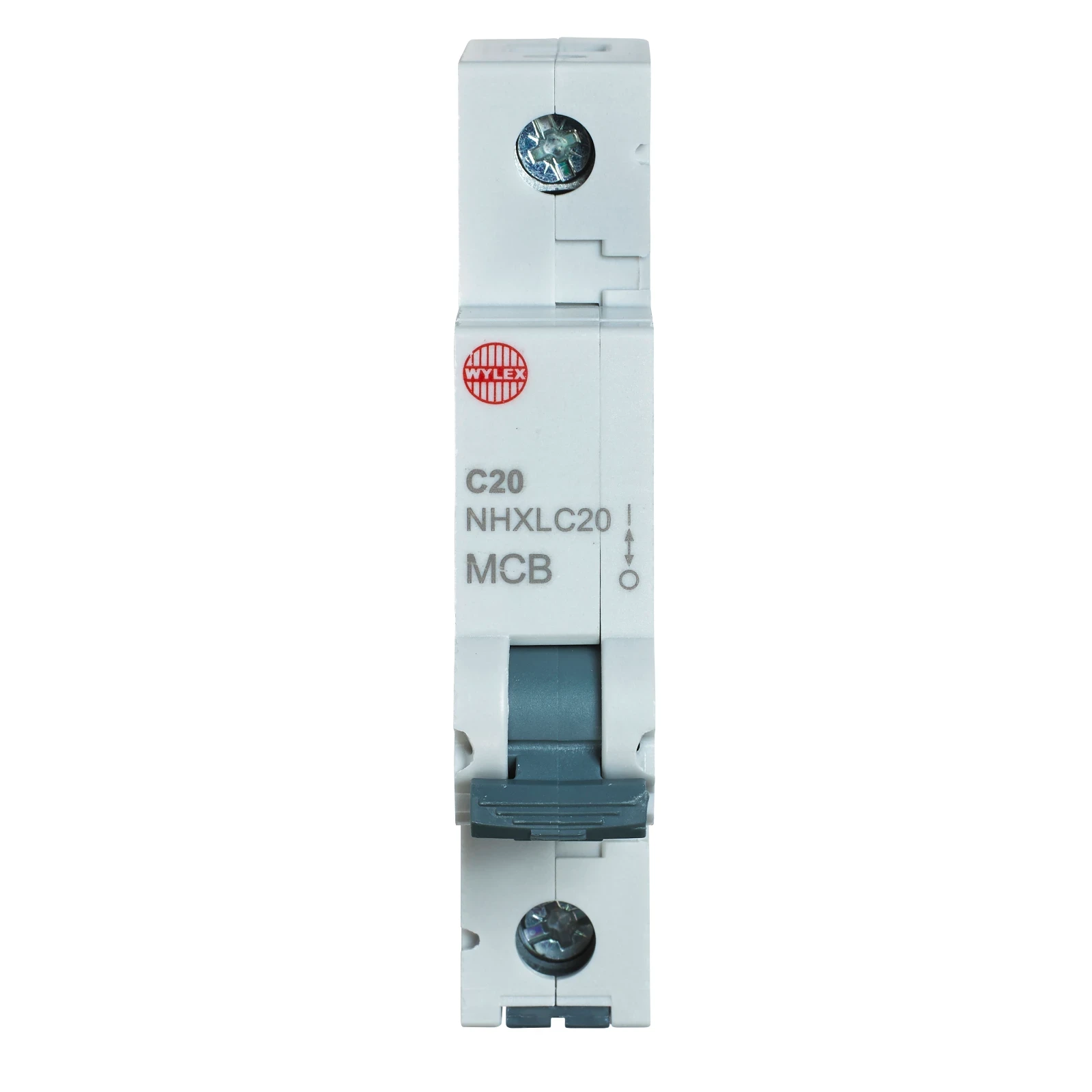

Wylex MCB SP C Curve 20A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Rated voltage 230 V Tripping characteristic (type/curve) C Current limiting class 3 Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Width in number of modular spacings 1 Over voltage category 3 Number of protected poles 1 Recess depth 73 mm Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
