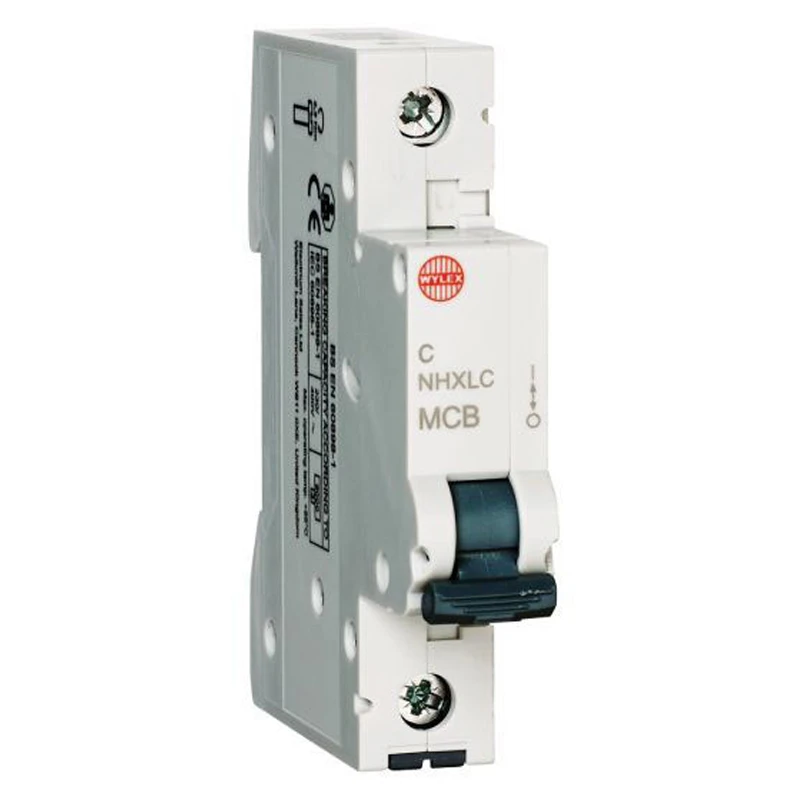

Wylex MCB SP C Curve 32A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) C Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Recess depth 73 mm Width in number of modular spacings 1 Rated voltage 230 V Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
