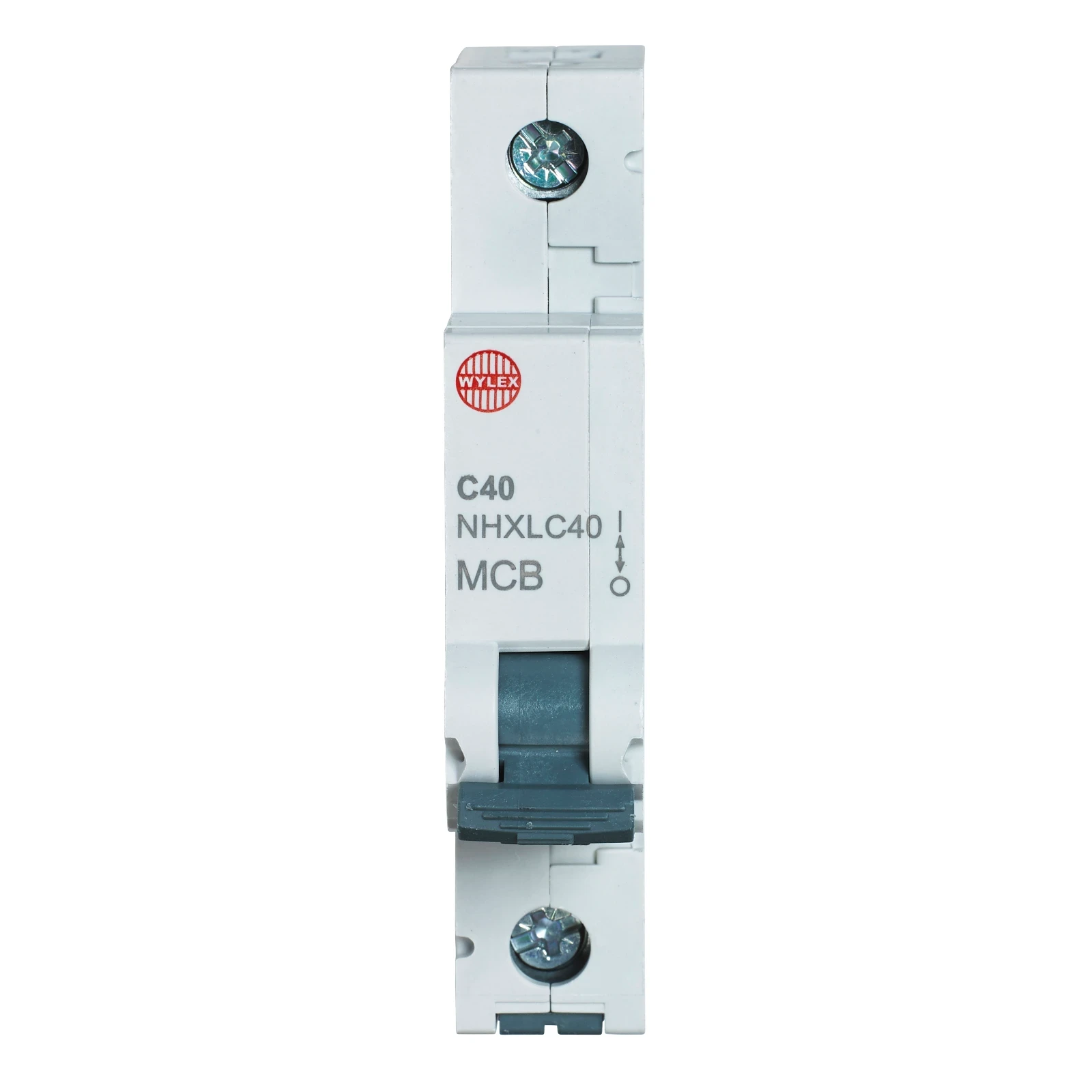

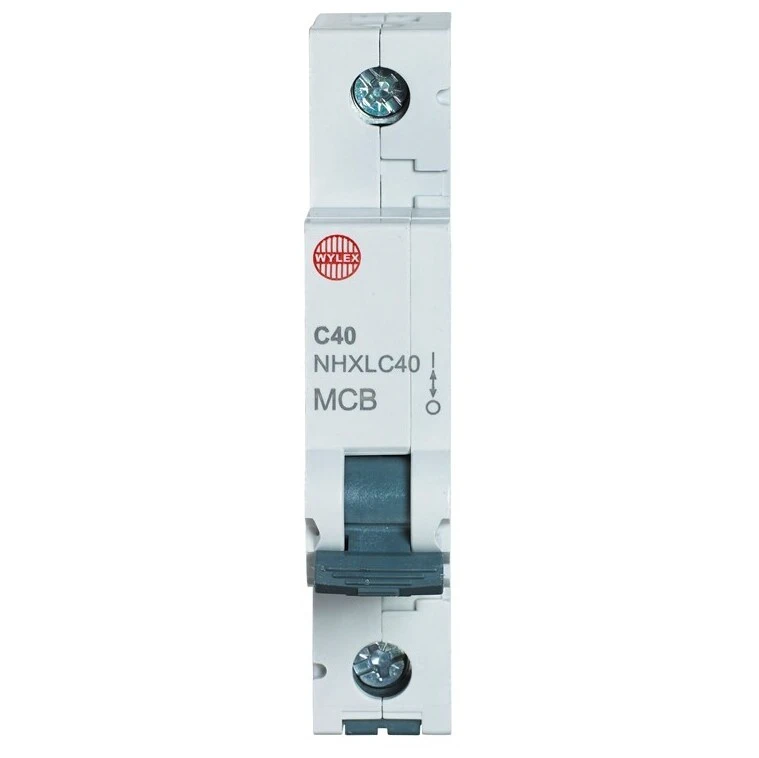

Wylex MCB SP C Curve 40A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 40 A Recess depth 73 mm Tripping characteristic (type/curve) C Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Additional equipment possible No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Width in number of modular spacings 1 Current limiting class 3 Rated insulation voltage Ui 400 V Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
