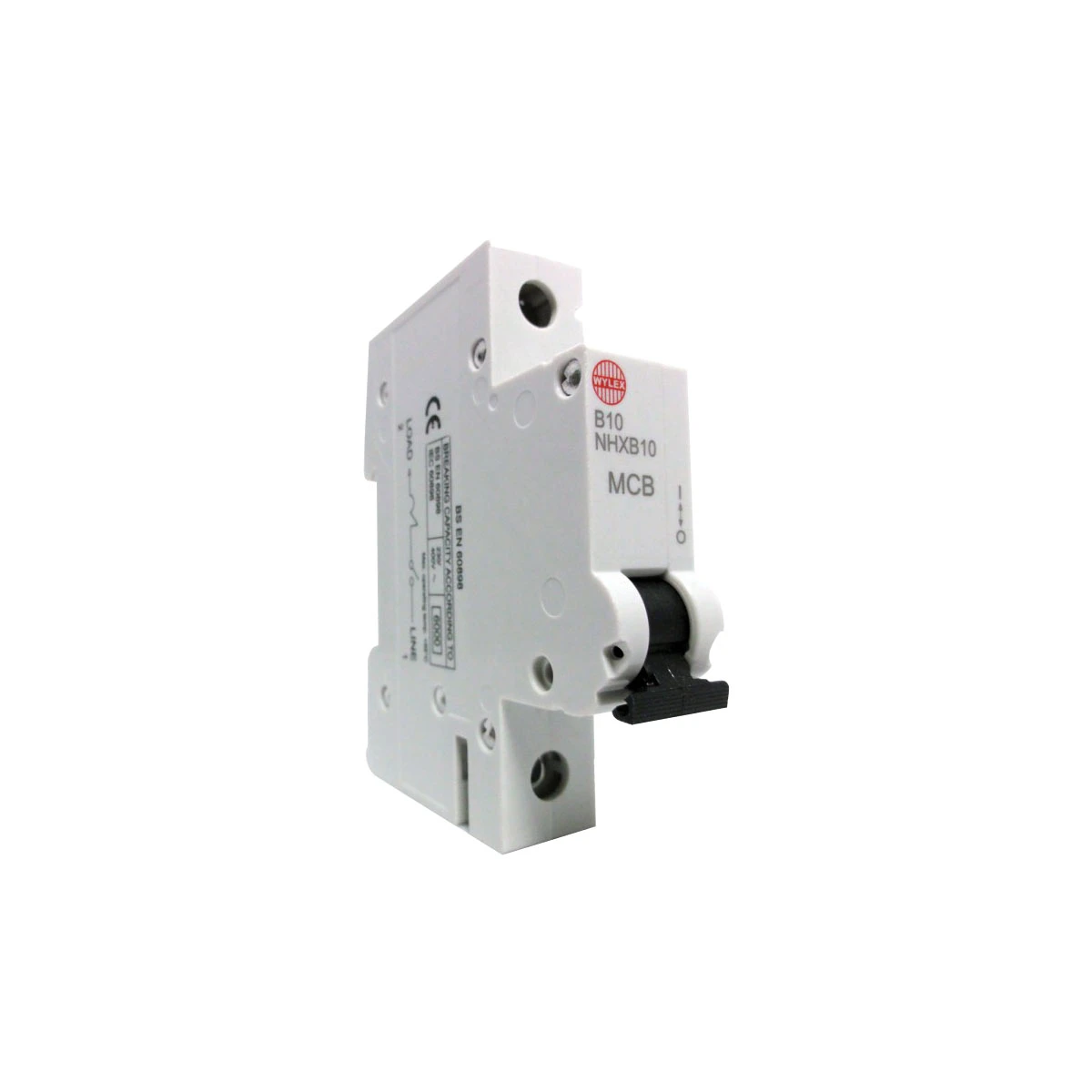

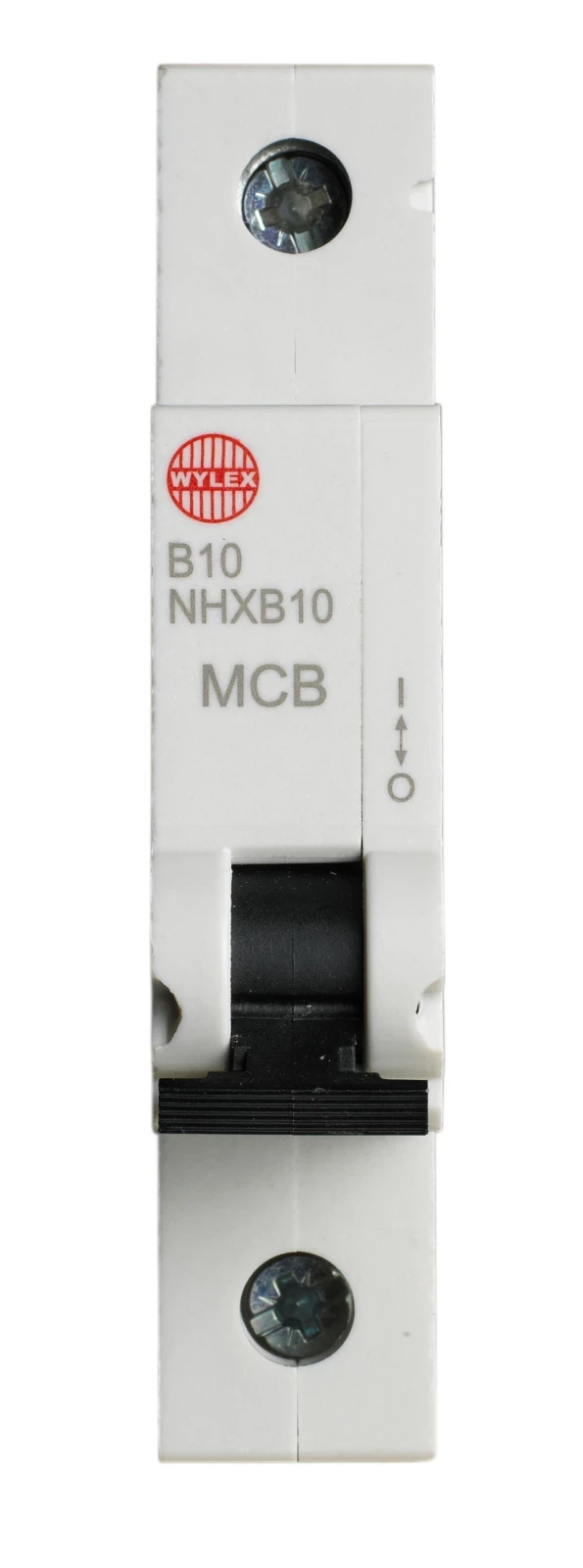

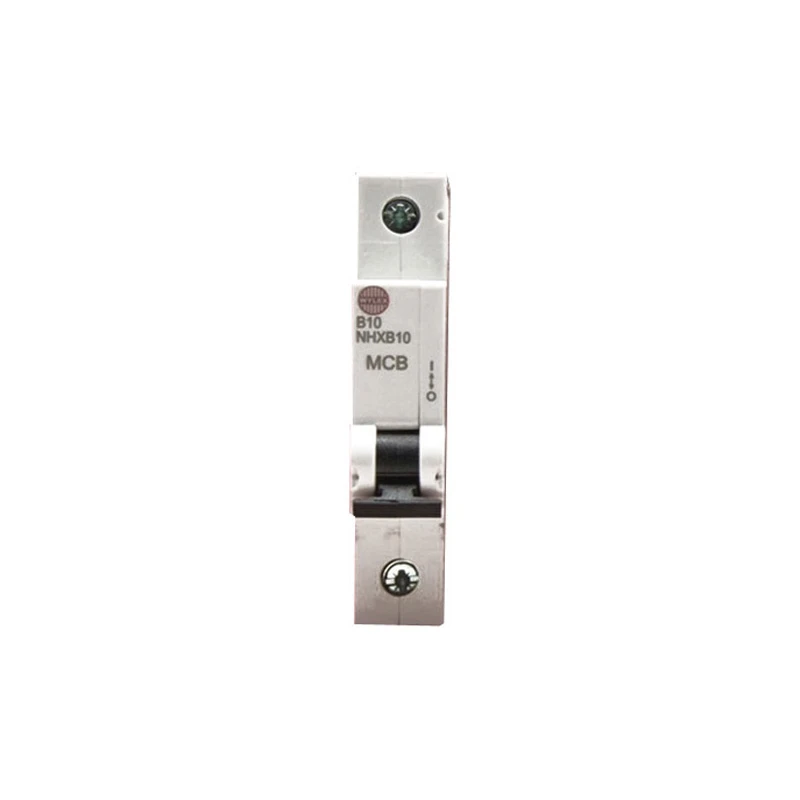

Wylex 10A SP Type B 6kA MCB

These Miniature Circuit Breakers, are of the thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the ‘on’ position the MCB is free to trip. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop. · · · Single pole MCB, 10A B curve · · Energy limiting Class 3 · · Balcony terminal position · · Type B Curve · · Short Circuit Rating: 6 kA · · For fixed balcony connection consumer units NM/NH · · Terminal capacity outgoing cable 0.75 to 25mm2 · · Voltage 240V
