Wylex MCB SP Type C 1 Module 16A 6kA
Wylex MCB SP Type C 1 Module 16A 6kA

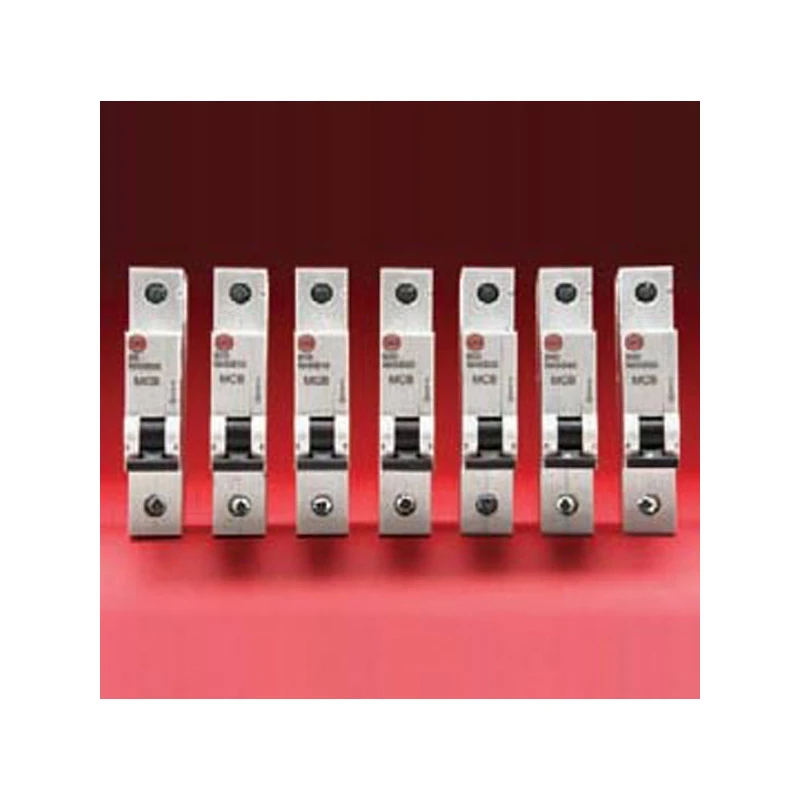

Wylex MCB SP Type C 1 Module 16A 6kA - Image 2

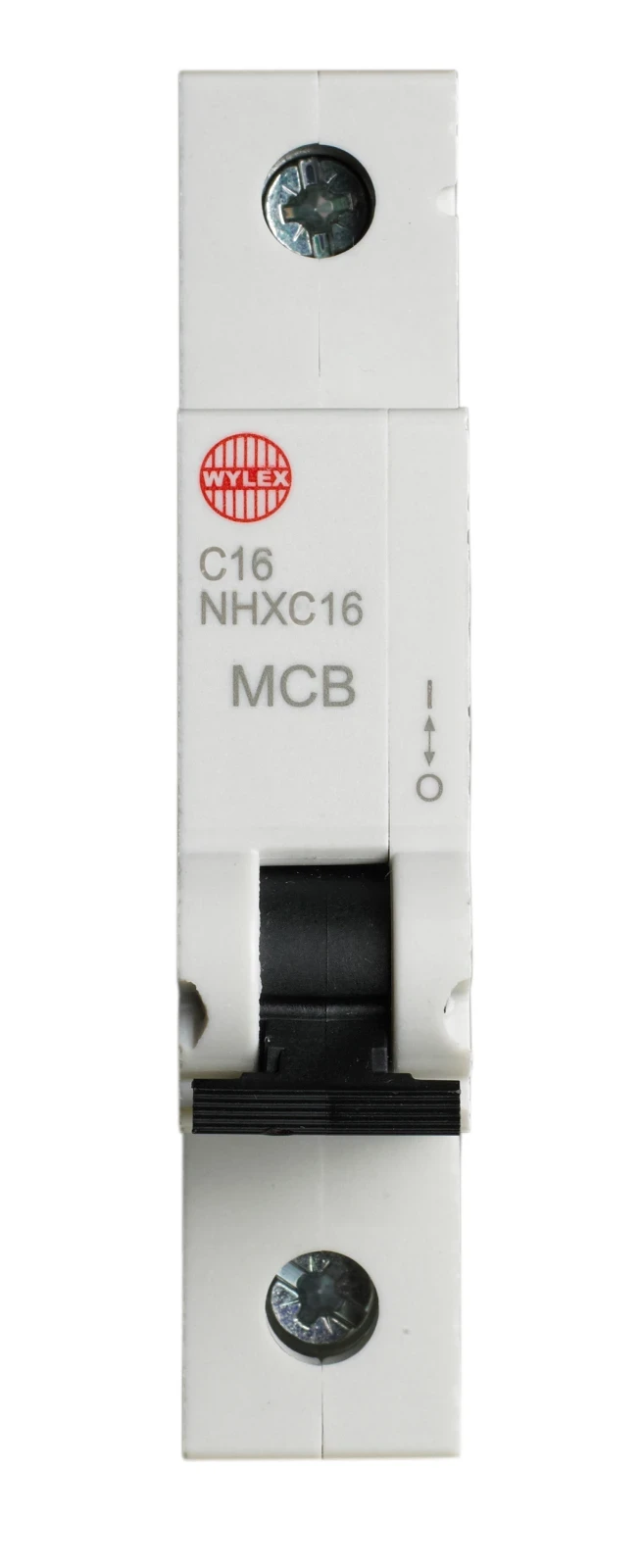

Wylex MCB SP Type C 1 Module 16A 6kA - Image 3

Wylex MCB SP Type C 1 Module 16A 6kA

£5.76 Incl. VAT

· · 0.75 to 25mm² Terminal capacity · · Energy limiting Class 3 · · Balcony terminal position

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXC16 Categories: , , Brand: Part Number: 2500351519

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 73 mm Rated current 16 A Tripping characteristic (type/curve) C Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 230 V Current limiting class 3 Over voltage category 3 Width in number of modular spacings 1 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible No · Technical Data Sheet – Click to Download
