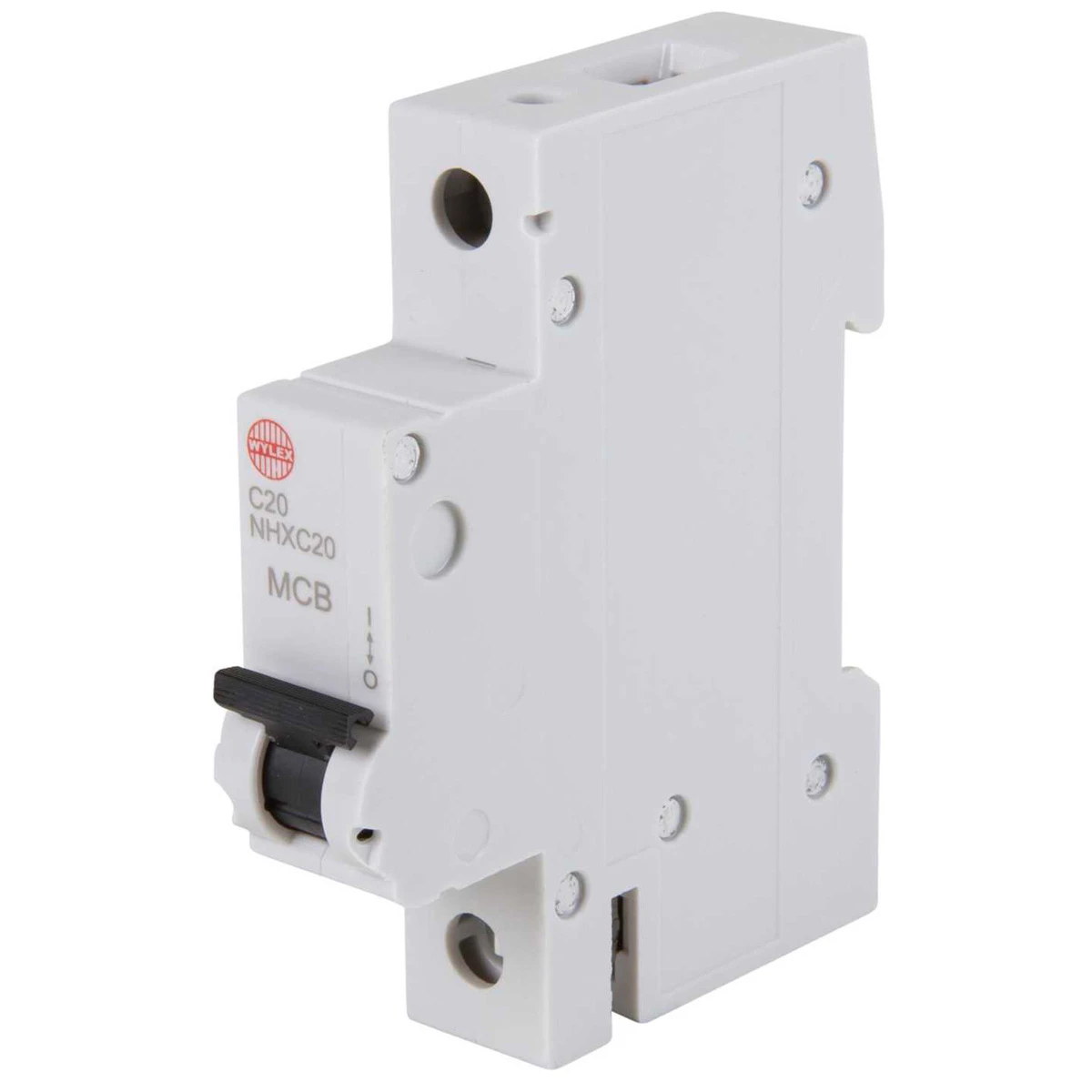

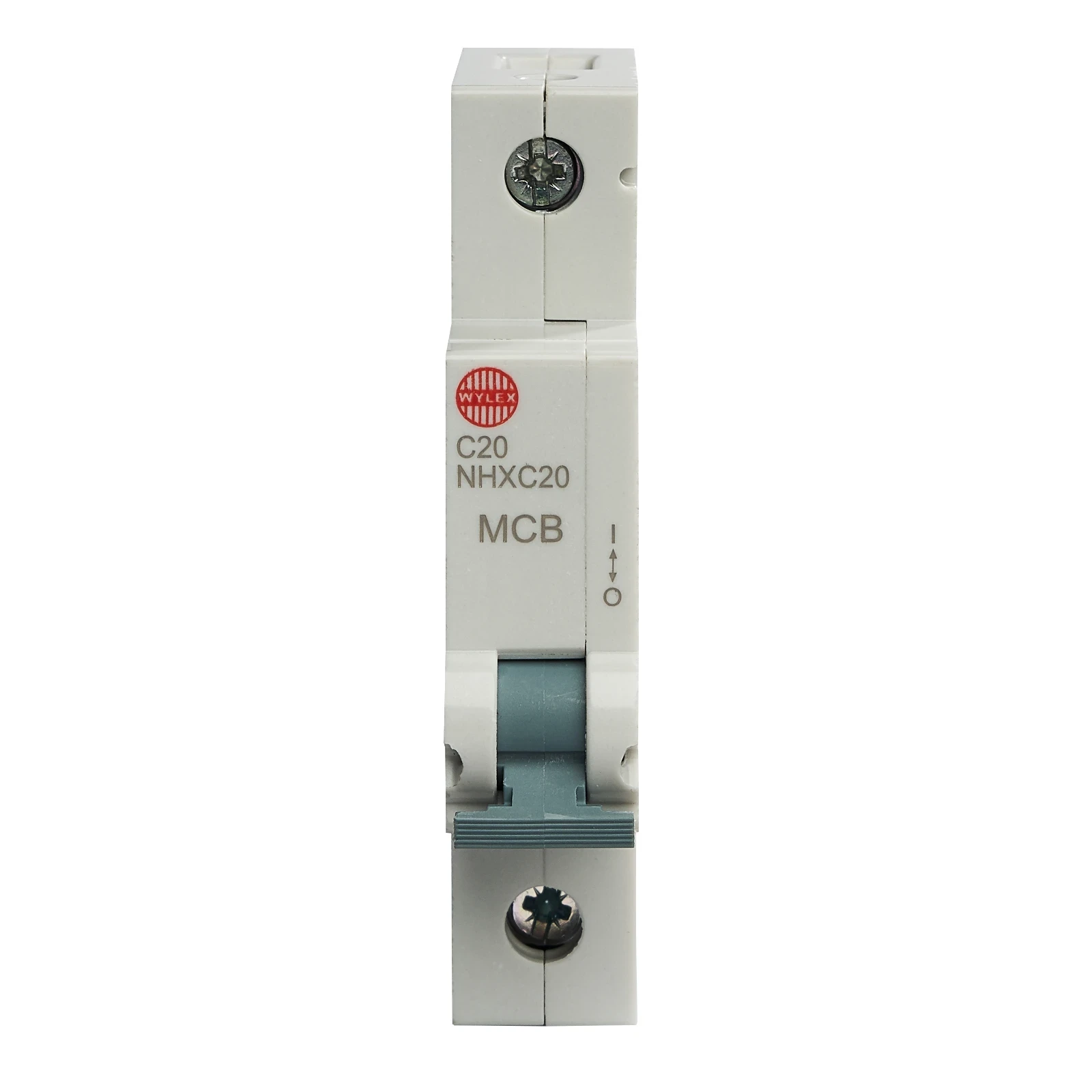

Wylex MCB SP Type C 1 Module 20A 6kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Recess depth 73 mm Tripping characteristic (type/curve) C Rated voltage 230 V Width in number of modular spacings 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Concurrently switching N-neutral No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Current limiting class 3 Rated insulation voltage Ui 400 V Over voltage category 3 Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
