Wylex 32A SP Type C 6kA MCB
Wylex 32A SP Type C 6kA MCB

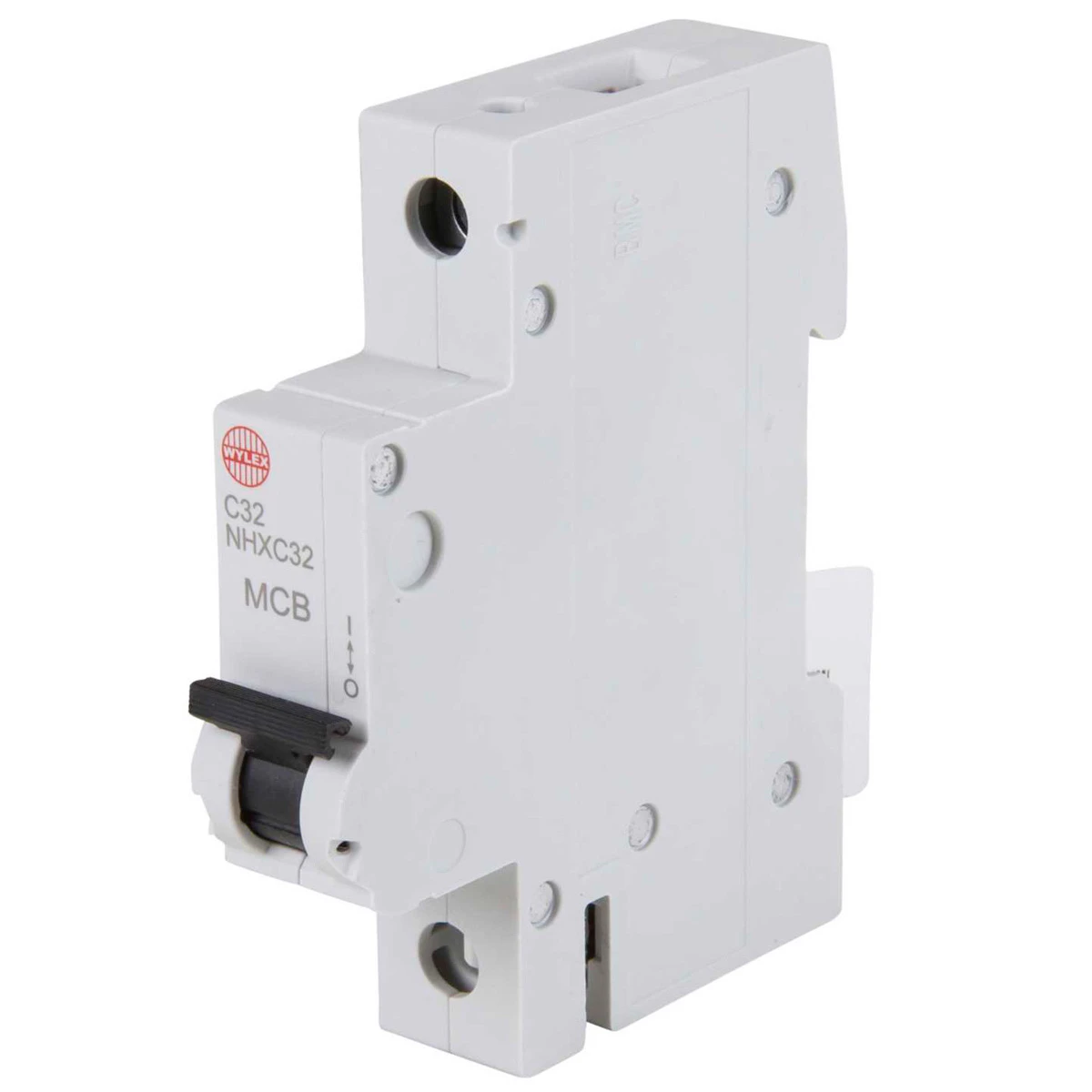

Wylex 32A SP Type C 6kA MCB - Image 2

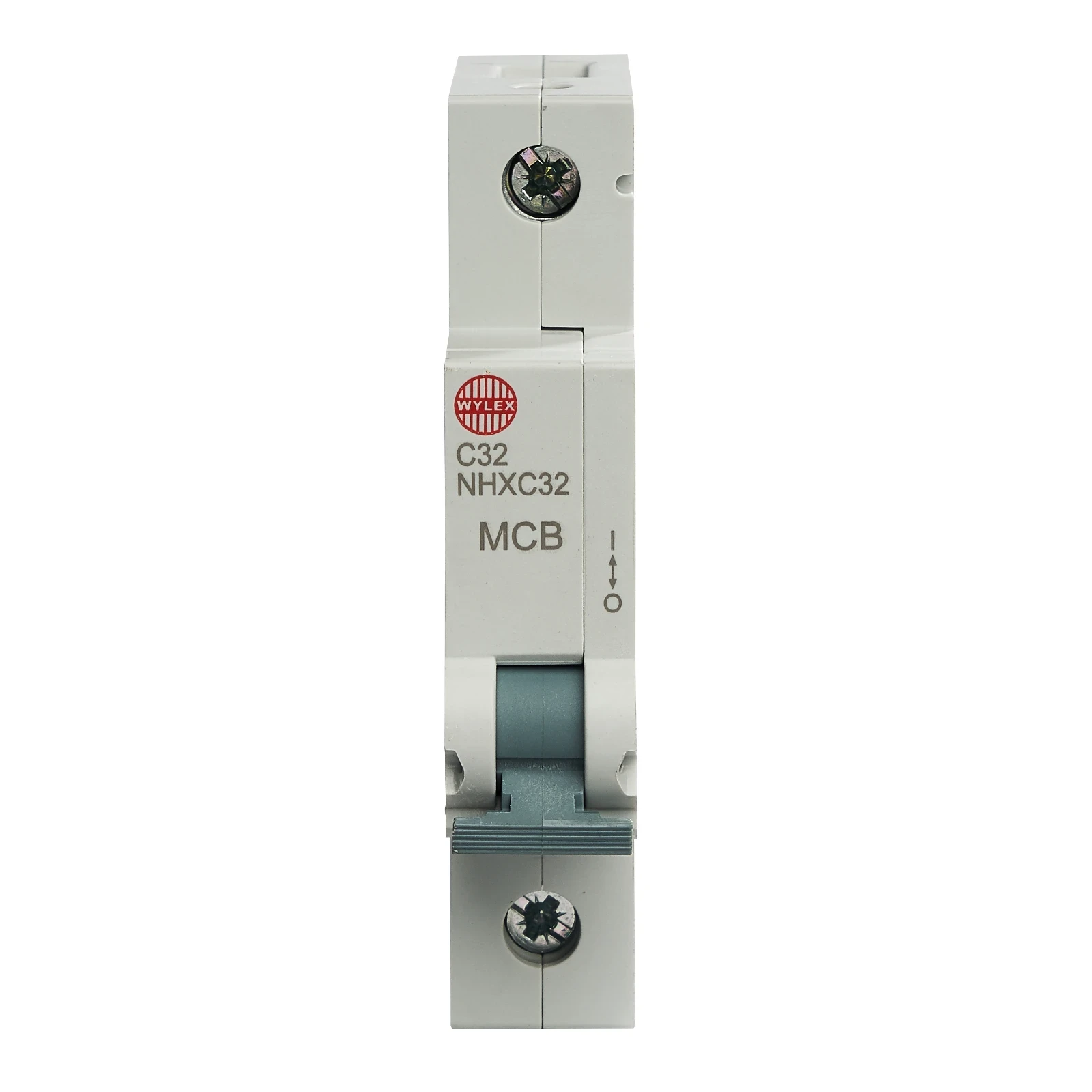

Wylex 32A SP Type C 6kA MCB - Image 3

Wylex 32A SP Type C 6kA MCB

£6.04 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the ‘on’ position the MCB is free to trip. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop. · · · Single pole MCB, 32A C curve · · Energy limiting Class 3 · · Balcony terminal position

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXC32 Categories: , , Brand: Product Code: 2500351535

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 32 A Recess depth 73 mm Rated voltage 230 V Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of protected poles 1 Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
