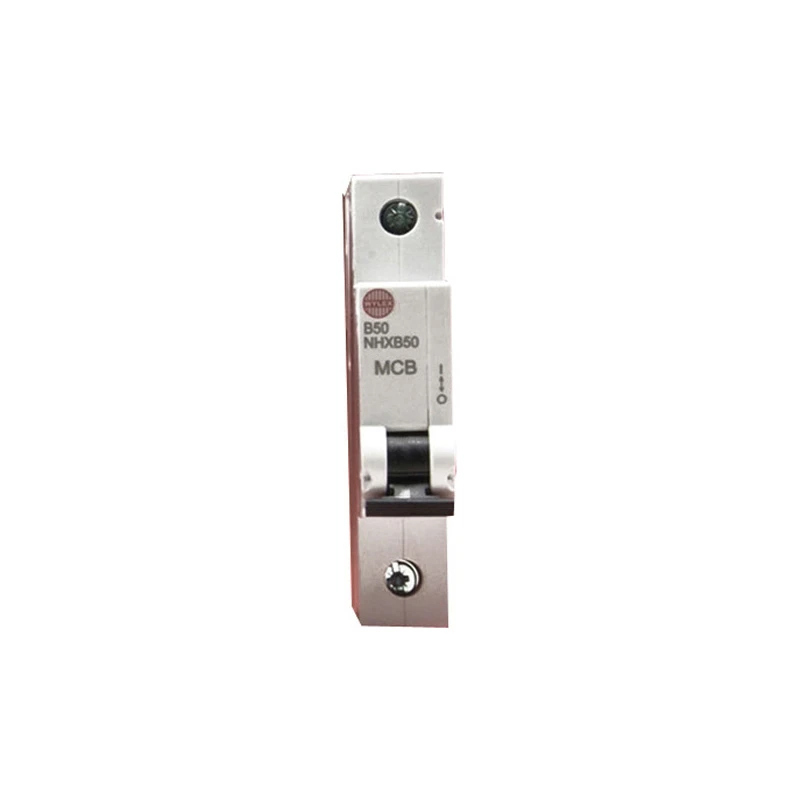

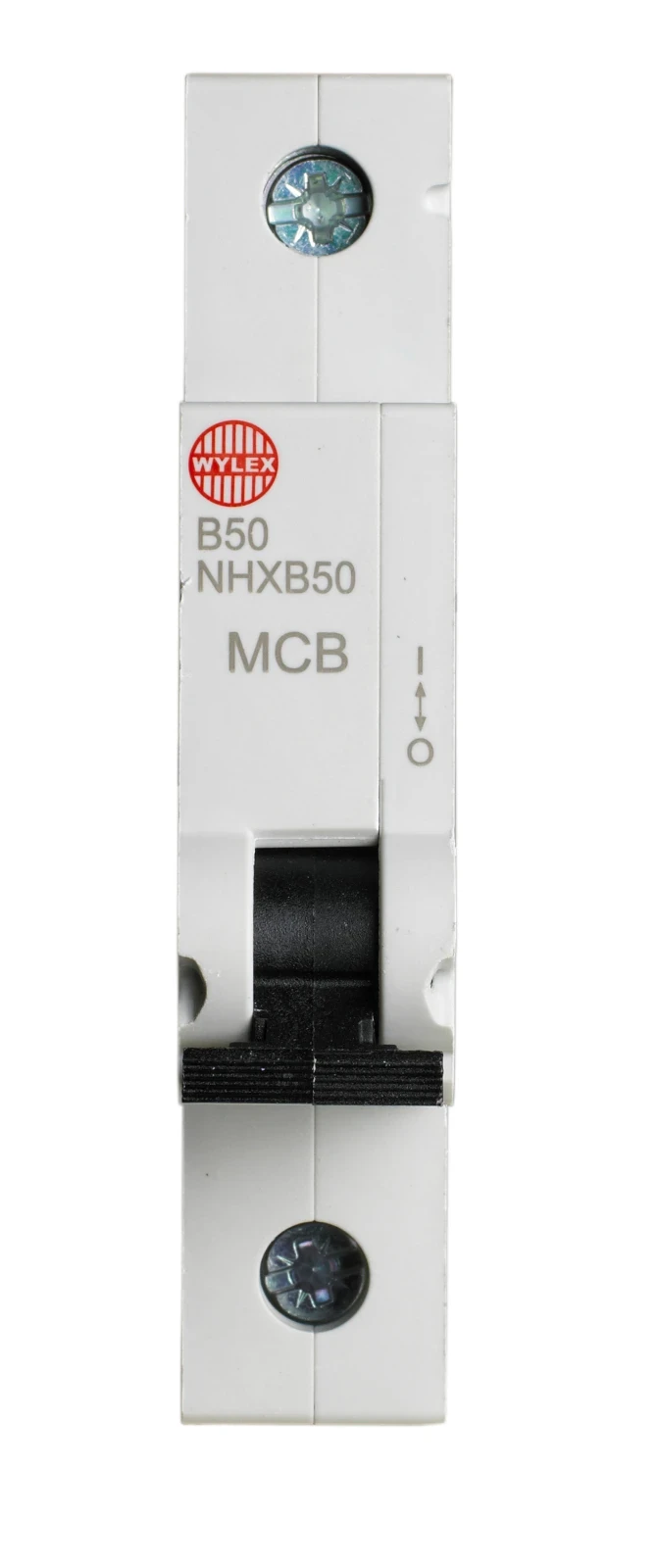

Wylex 50A SP Type B 6kA MCB
£6.04 Incl. VAT
These Miniature Circuit Breakers, are of the thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the on position the MCB is free to trip. Adjacent thermal-magnetic. 1 Pole 1 Module for fixed balcony connection consumer units NM/NH. · · · Single pole MCB, 50A B curve · · Energy limiting Class 3 · · Balcony terminal position · · Type B Curve · · Short Circuit Rating 6kA · · For fixed balcony connection consumer units NM/NH · · Terminal capacity outgoing cable 0.75 to 25mm2 · · Voltage 240V
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 50 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of poles (total) 1 Rated insulation voltage Ui 400 V Number of protected poles 1 Over voltage category 3 Current limiting class 3 Rated voltage 230 V Width in number of modular spacings 1 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
