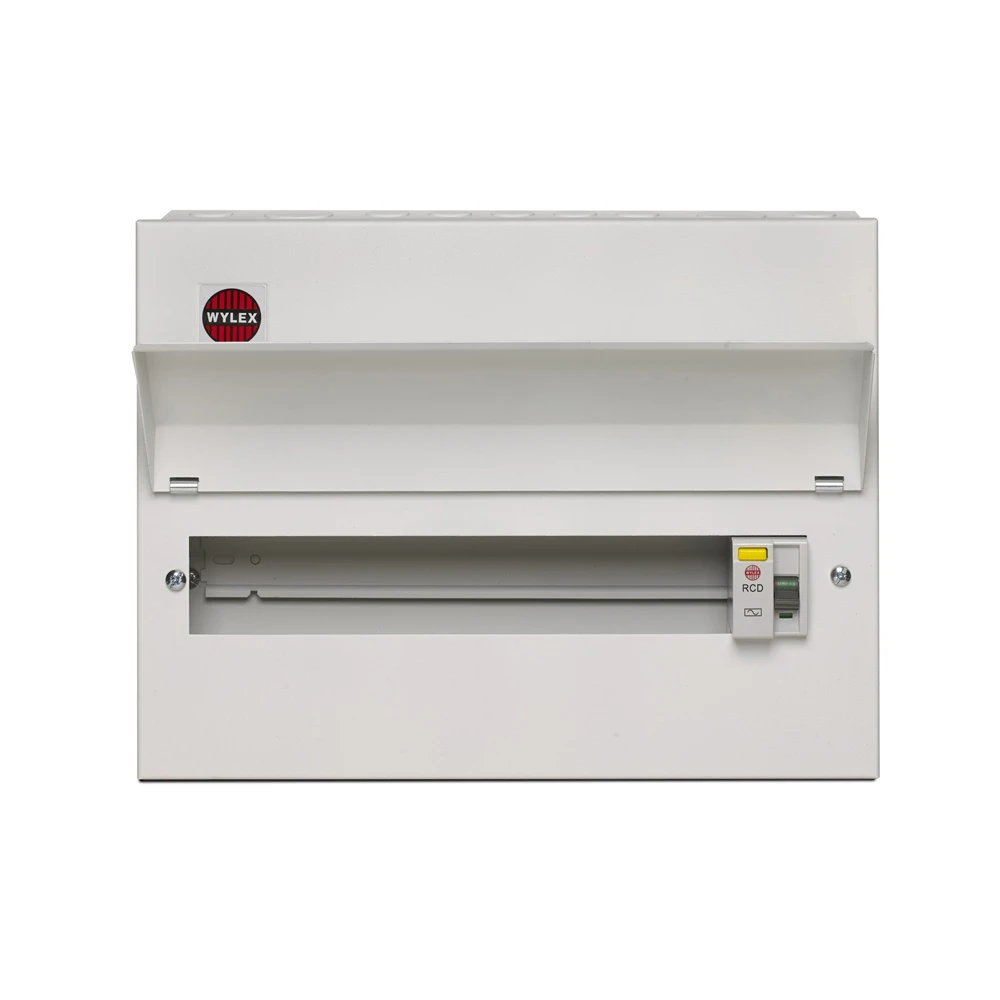

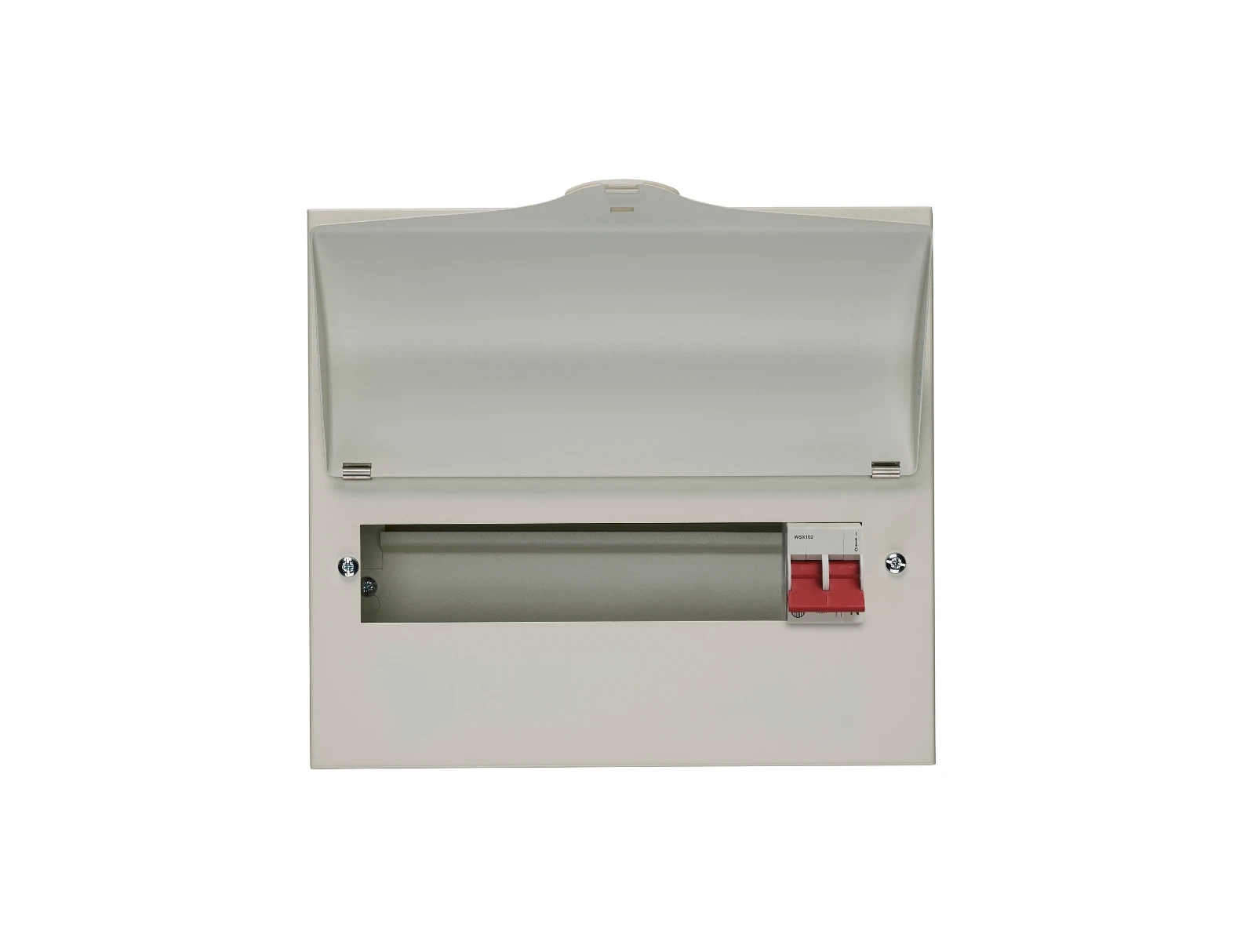

Wylex 11 Way Consumer Unit Main Switch 100A
£89.83 Incl. VAT
Wylex NM Main Switch Metal Consumer Unit comes with some impressive style, design and safety improvements. Wylex miniature MCB’s and RCBO’s are easier to install, they are smaller so allowing with more wiring space. Safer because the RCBO’s now incorporate a switch neutral as standard, this will also saves time and money during installation resistance testing. Great news for landlords. · · · 11W Main switch only consumer unit · · Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly · · Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1 · · Constructed from a full metal enclosure with curved visor and temporary locking facility
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board equipped Housing material Steel Width 292 mm Degree of protection (IP rating) IP2XC Width in number of modular spacings 13 Number of phases 1 Main switch rated current 100 A Number of poles main switch 2 Number of outgoing ways 11 Total number of groups 1 Height 261 mm Depth 121 mm Lockable Yes Extension possible No With transparent cover No Over voltage-/surge protection No · Technical Data Sheet – Click to Download
