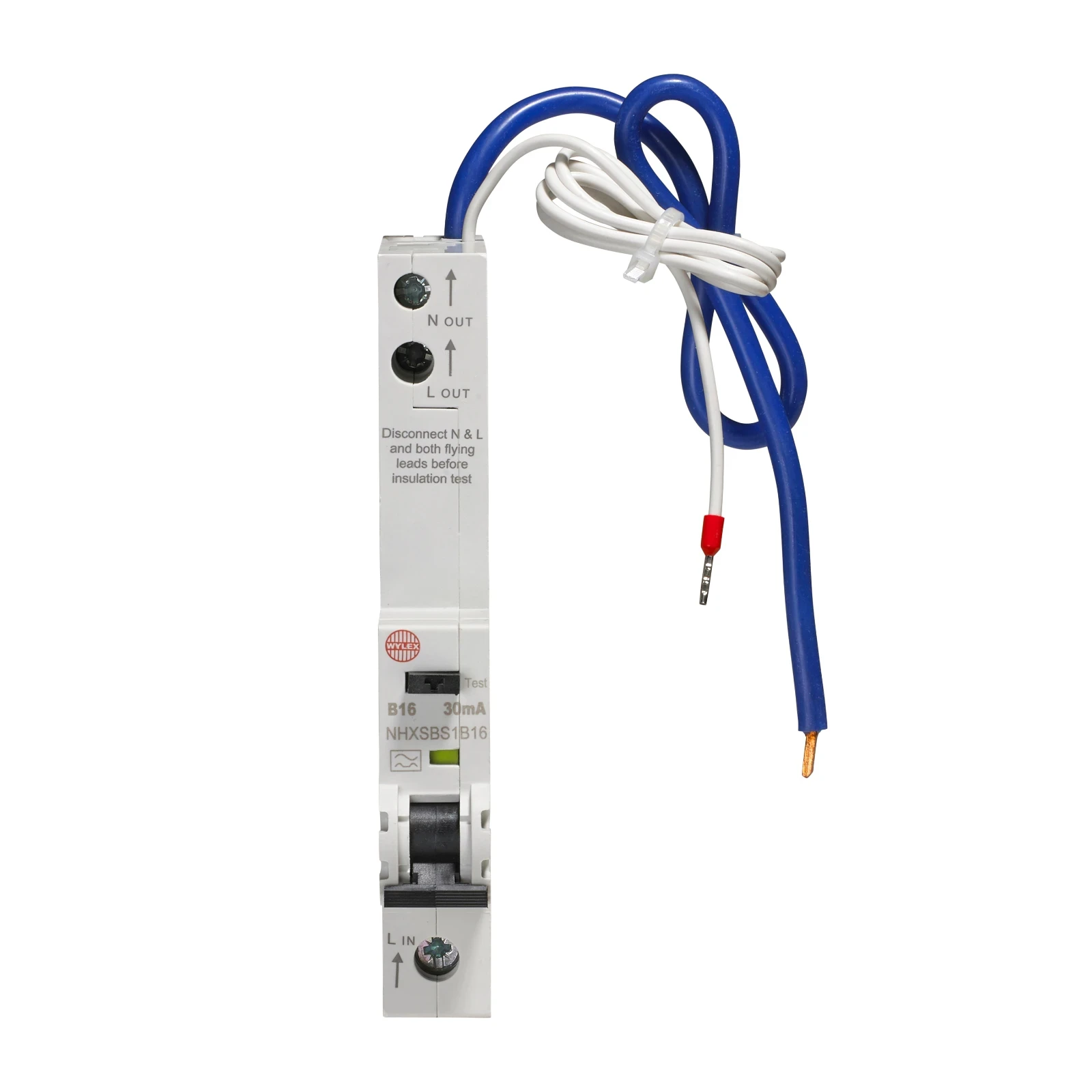

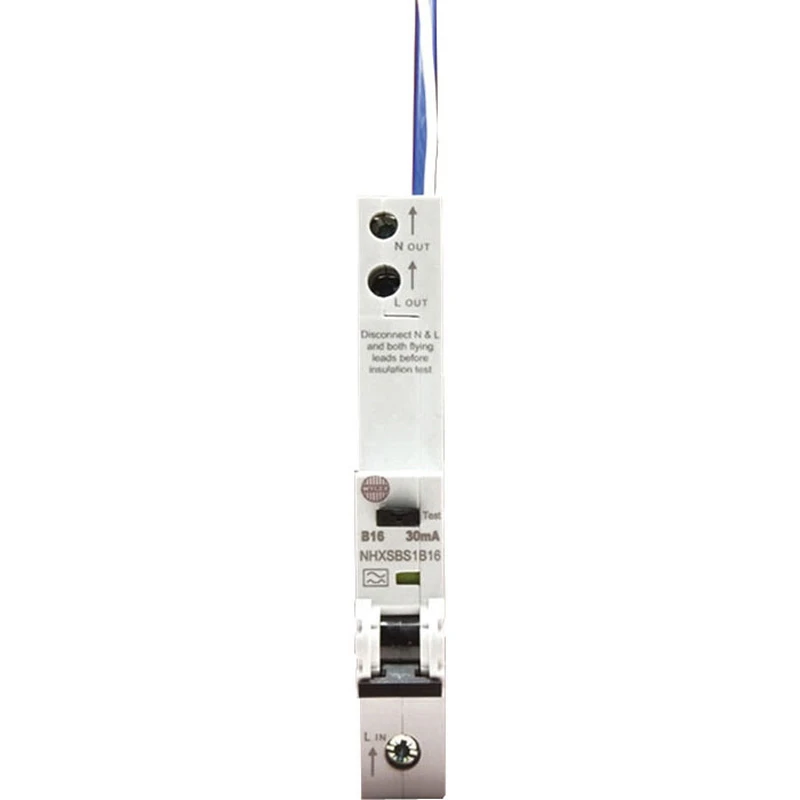

Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16)
Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16)
Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16) - Image 2
Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16) - Image 3
Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16) - Image 4

Wylex RCBO SP Class A Type B 1 Module 16A 30mA (NHXSBS1B16)

£39.25 Incl. VAT

· · Easy DIN rail fixing and extraction · · Push to test button · · Single pole switching · · Loss of Neutral Protection · · Real contact position indicator · · Safety terminals · · 30mA Trip sensitivity for protection of personnel and property · · Ambient Temperature -5 to 55°C · · AC leakage current type and B release characteristic

34 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXSBS1B16 Categories: , , Brand: Part Number: 2500351601

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Rated current 16 A Mounting method DIN rail Rated voltage 230 V Rated insulation voltage Ui 400 V Recess depth 74 mm Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of protected poles 1 Rated fault current 0.03 A Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Current limiting class 3 Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
