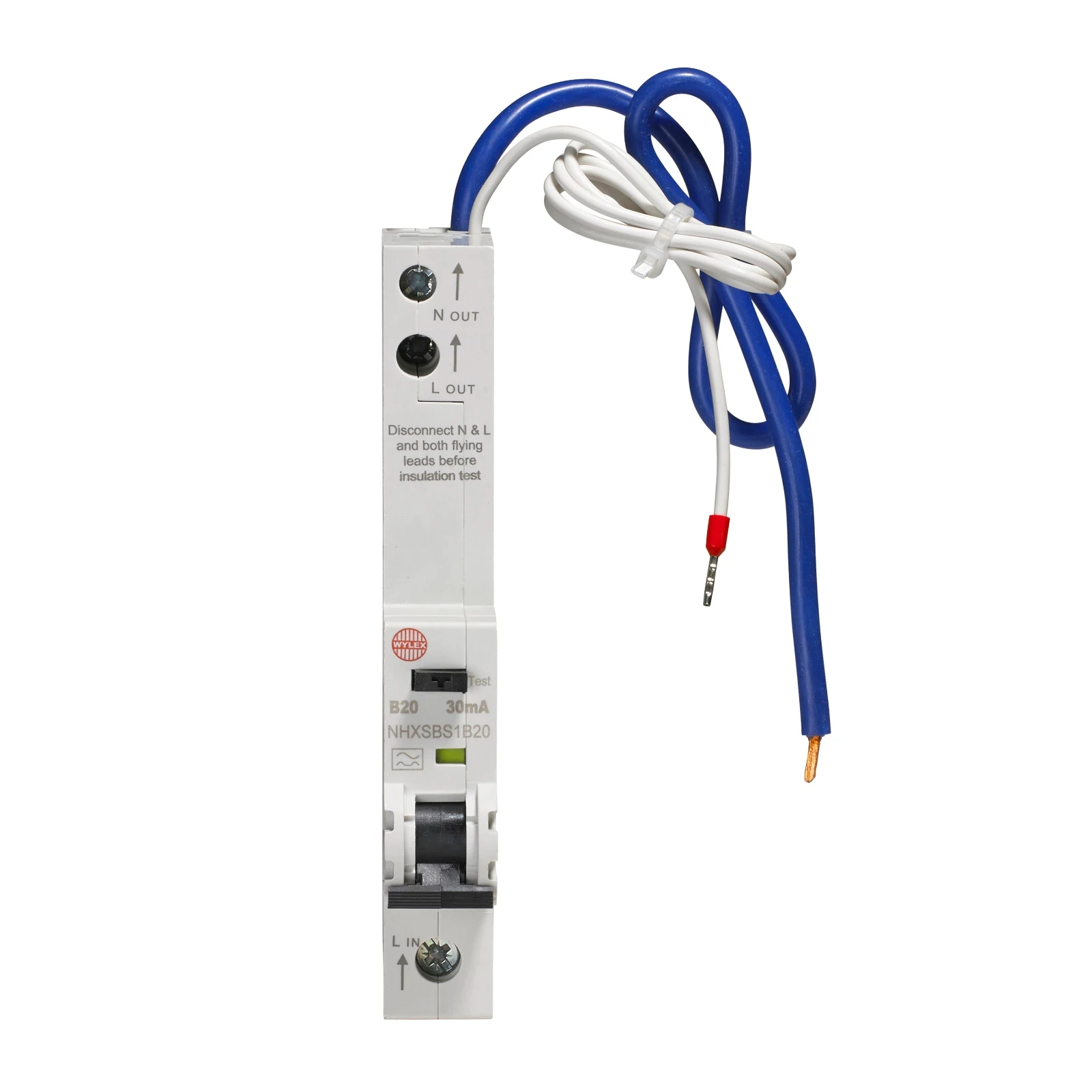

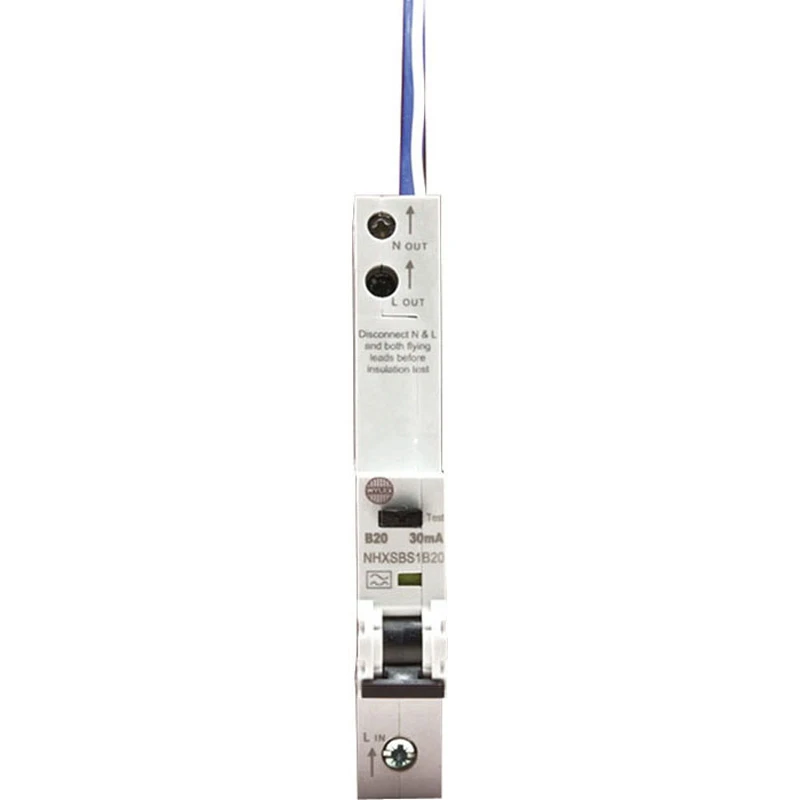

Wylex 20A 30mA SPN B Curve 6kA Type A RCBO

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Recess depth 74 mm Rated current 20 A Rated voltage 230 V Rated insulation voltage Ui 400 V Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Width in number of modular spacings 1 Over voltage category 3 Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
